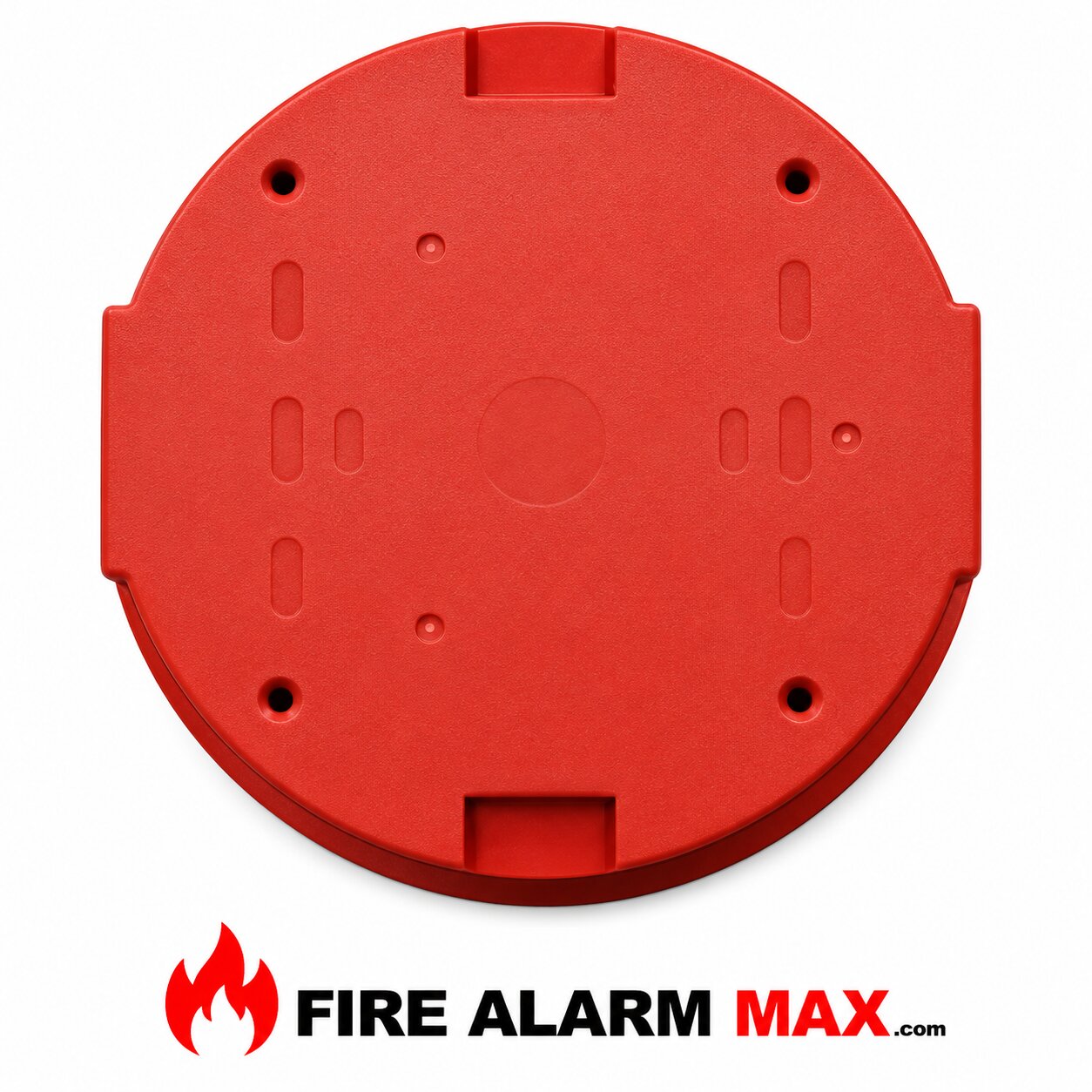

The Eaton LSPKBB-CR is a commercial surface backbox designed for compatible LED speaker and speaker strobe fire alarm notification appliances. Specifically, it provides a secure ceiling-mount enclosure for life-safety installations in commercial buildings. This product is intended exclusively for commercial fire alarm systems and is not consumer electrical equipment, communications equipment, surveillance equipment, or recording devices.

Built from durable engineered plastic with a red finish, the LSPKBB-CR simplifies surface-mounted installations while protecting wiring and supporting reliable appliance mounting. In addition, its rugged construction is designed for long-term performance in commercial environments.

Product Functions

The Eaton LSPKBB-CR supports commercial fire alarm installations by providing:

• Surface mounting for compatible LED speaker appliances
• Surface mounting for compatible LED speaker strobes
• Protection for field wiring and electrical connections
• Secure mounting for ceiling notification devices
• Durable enclosure for commercial applications
• Simplified installation and maintenance

Electrical & System Information

The LSPKBB-CR is a passive mounting accessory and does not require operating voltage. Instead, it provides a secure surface enclosure for compatible ceiling-mounted fire alarm notification appliances.

Furthermore, the enclosure is designed for use with compatible Eaton Wheelock Exceder LED and Eluxa ceiling speaker and speaker strobe products. Always verify compatibility before installation.

Features

Surface Mount Installation

The LSPKBB-CR provides a dependable surface-mount solution for compatible ceiling notification appliances. As a result, installers can complete retrofit and new construction projects without recessed mounting requirements.

Durable Engineered Construction

Constructed from UV-stabilized engineered plastic, the enclosure provides dependable mechanical protection while meeting commercial fire alarm installation requirements.

Professional Red Finish

The red finish provides clear identification as a fire alarm system component while matching compatible notification appliances.

Wiring Protection

The enclosure provides adequate space for wiring while protecting field connections during installation and maintenance. Consequently, technicians can complete installations more efficiently.

Compatible Ceiling Mount Design

Designed specifically for compatible ceiling speaker and speaker strobe appliances, the LSPKBB-CR supports clean, professional commercial installations.

Mounting & Design

The Eaton LSPKBB-CR features a rugged surface-mount enclosure engineered for commercial fire alarm installations. Furthermore, the integrated mounting design supports compatible ceiling-mounted notification appliances while maintaining a professional finished appearance.

Its compact design makes the enclosure suitable for offices, schools, hospitals, warehouses, retail facilities, and other commercial environments requiring surface-mounted fire alarm notification devices.

Protection & Applications

The LSPKBB-CR is designed exclusively for commercial fire alarm notification systems.

Typical applications include:

• Ceiling speaker mounting
• Ceiling speaker strobe mounting
• Surface-mounted fire alarm notification
• Commercial fire alarm systems
• Retrofit installations
• New construction projects

Always install the backbox according to local building codes, fire codes, and the manufacturer’s installation instructions.

Compatibility

The Eaton LSPKBB-CR is designed for use with compatible Eaton Wheelock ceiling LED speaker and speaker strobe notification appliances, including approved Exceder LED and Eluxa Series products.

Before purchasing or installing this product, verify compatibility with the intended fire alarm appliance and project requirements.

Technical Specifications

Manufacturer: Eaton

Series: Wheelock

Model: LSPKBB-CR

Product Type: Commercial Surface Backbox

Application: LED Speaker and Speaker Strobe Mounting

Mounting Style: Surface Mount

Mounting Orientation: Ceiling

Color: Red

Material: UV-Stabilized Engineered Plastic

Weight: Approximately 0.44 lb (200 g)

Compatible Products: Eaton Wheelock Exceder LED and Eluxa Ceiling Speaker & Speaker Strobe Appliances

Wire Size Compatibility: #12–#18 AWG

Installation: Indoor Commercial Fire Alarm Systems

Listings: UL, ULC, FM, CSFM (verify approvals for your specific application)

Always verify technical specifications using the manufacturer’s official documentation before installation.

Applications

The Eaton LSPKBB-CR is commonly used in compatible commercial fire alarm systems serving:

• Office Buildings
• Schools
• Universities
• Hospitals
• Healthcare Facilities
• Hotels
• Government Buildings
• Retail Stores
• Warehouses
• Industrial Facilities
• Commercial Buildings

Before installation, verify compliance with local codes, project specifications, and manufacturer recommendations to ensure proper system operation.
