Description

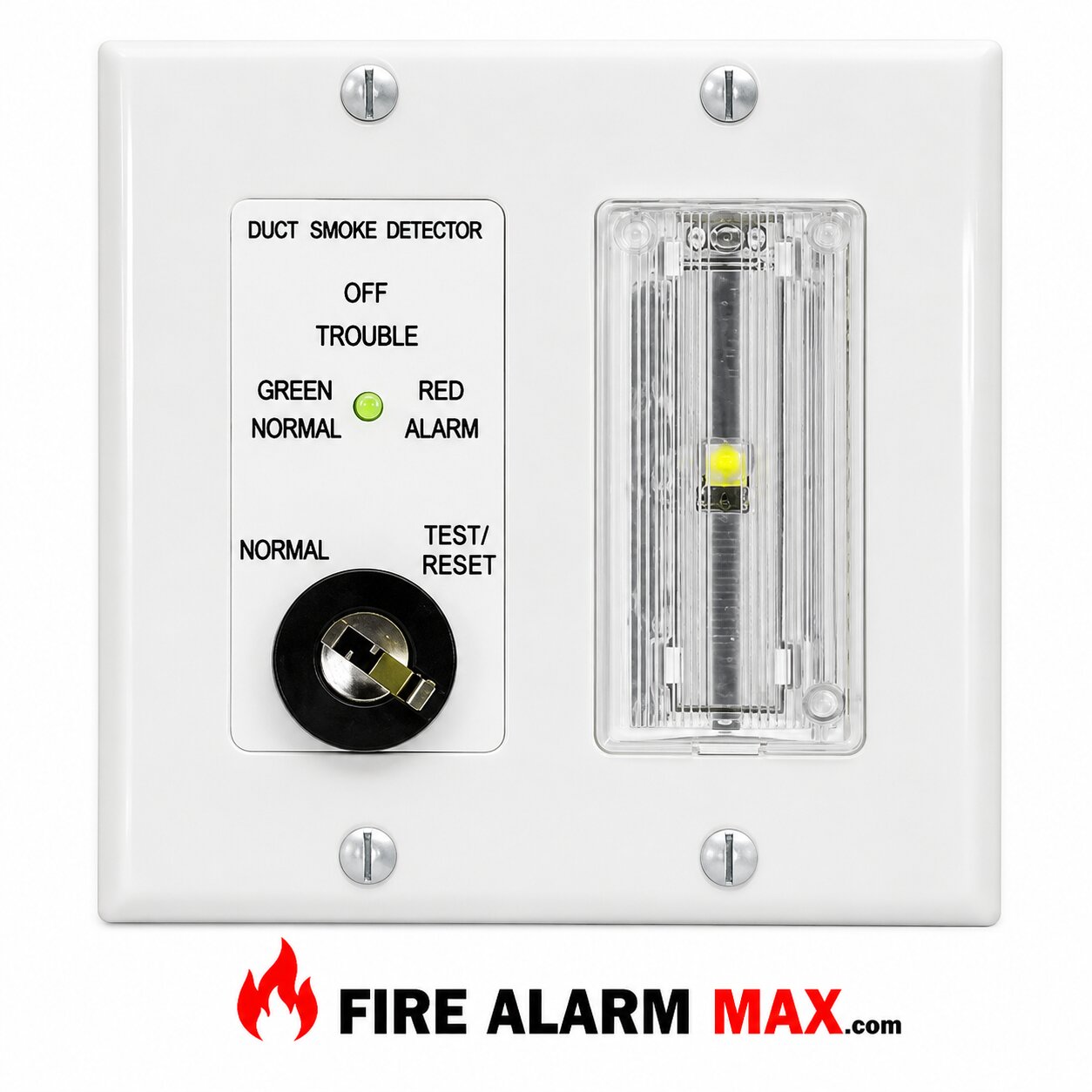

The Space Age SSU-MSR50RKAVWC is an advanced remote indicator and control station designed for use with compatible Space Age duct smoke detectors and duct carbon monoxide detection systems. The Space Age SSU-MSR50RKAVWC combines remote status indication, key-operated detector testing and reset capabilities, and an integrated sounder/strobe assembly within a convenient Decora-style wall-mounted package. Therefore, it provides facility personnel with a centralized location for detector monitoring, alarm indication, and system control.

Space Age SSU-MSR50RKAVWC Function

The SSU-MSR50RKAVWC is designed to provide remote access to duct detector functions while displaying detector operating status. As a result, maintenance personnel can test, reset, and monitor duct smoke or carbon monoxide detectors without accessing HVAC equipment or ductwork. In addition, the unit provides local alarm notification through integrated audible and visual indicators.

Remote Test and Reset Control

The SSU-MSR50RKAVWC incorporates a key-operated test and reset switch that allows authorized personnel to perform detector testing and resetting functions remotely. Consequently, routine inspections and maintenance procedures can be completed more efficiently while maintaining system security. Furthermore, key-operated control helps prevent unauthorized operation.

Tri-Color LED Status Indication

The remote accessory features a highly visible tri-color LED that provides clear indication of detector status conditions, including:

• Green – Pilot/Normal Operation
• Amber – Trouble Condition
• Red – Alarm Condition

Therefore, personnel can quickly determine detector status from a single visual indicator. Additionally, the tri-color design simplifies troubleshooting and system monitoring.

Integrated Sounder and Strobe Notification

The SSU-MSR50RKAVWC includes a built-in sounder and strobe assembly that provides both audible and visual alarm notification. As a result, alarm conditions can be clearly communicated in mechanical rooms, maintenance areas, and other locations where detector monitoring is required. Moreover, the combination sounder/strobe improves awareness of alarm events.

Decora-Style Installation

The Space Age SSU-MSR50RKAVWC utilizes a clean Decora-style design with a white double-gang wall plate. Consequently, the unit integrates easily into commercial and institutional facilities while maintaining a professional appearance. Furthermore, compatibility with standard Decora-style cover plates simplifies installation and replacement.

Tool-Free Wiring Connections

The unit incorporates a lever-operated quick-connect terminal block that allows fast wiring without specialized tools. Therefore, installation time is reduced and wiring errors are minimized. Additionally, the no-tools connection design simplifies future servicing and maintenance activities.

Compatible Detector Systems

The SSU-MSR50RKAVWC is commonly used with:

• Space Age SL-2000 Series Duct Smoke Detectors
• Space Age SM-501 Series Duct Smoke Detectors
• Space Age RT-3000 Series Duct Smoke Detectors
• Space Age SL-701 Duct Carbon Monoxide Detectors
• Compatible Air Products & Controls Duct Detection Systems

Therefore, it provides a versatile monitoring and control solution for HVAC life safety applications.

Technical Specifications

• Model: SSU-MSR50RKAVWC
• Manufacturer: Space Age Electronics
• Series: MSR-50 Series
• Type: Remote Indicator and Control Station
• Control Method: Key-Operated Test and Reset
• Status Indication: Tri-Color LED
• LED Functions:
  • Green – Pilot
  • Amber – Trouble
  • Red – Alarm
• Notification Type: Audible and Visual
• Sounder: Integrated
• Strobe: Integrated Clear-Lens Strobe
• Installation Style: Double-Gang Decora Configuration
• Cover Plate Color: White
• Terminal Type: Lever-Operated Quick-Connect
• Wiring Method: Tool-Free Terminal Block
• Application: Duct Smoke and Carbon Monoxide Detector Monitoring
• Compatible Systems: SL-2000, SM-501, RT-3000, SL-701 Series
• Mounting: Wall Mount
• Environment: Indoor Use
• Listings: UL Listed and CSFM Listed when used with approved systems

Applications

The Space Age SSU-MSR50RKAVWC is ideal for:

• Duct smoke detector monitoring
• Duct carbon monoxide detector monitoring
• HVAC life safety systems
• Mechanical rooms
• Building maintenance stations
• Commercial office buildings
• Schools and universities
• Healthcare facilities
• Industrial buildings
• Building automation environments

Reliable Remote Monitoring and Control Solution

The Space Age SSU-MSR50RKAVWC combines remote detector control, tri-color status indication, key-operated testing and resetting, integrated sounder/strobe notification, and Decora-style installation in a single compact accessory. Overall, it provides a convenient and reliable solution for monitoring and controlling duct smoke and carbon monoxide detection systems while improving maintenance efficiency and occupant awareness during alarm conditions.
