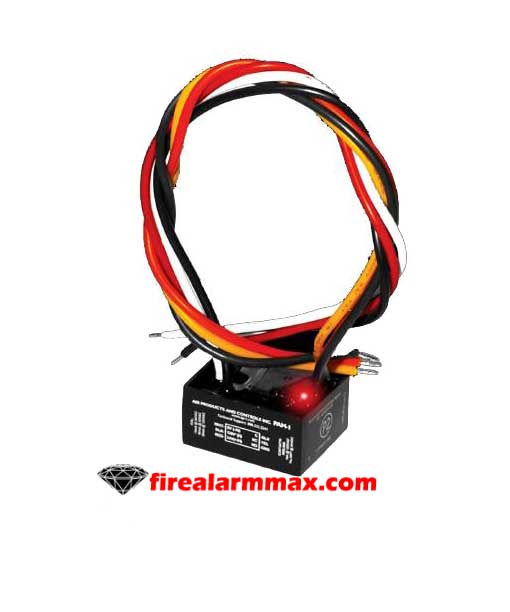

Air Products & Controls PAM-1 Multi-Voltage Relay – Flexible Control Module for Multiple Input Voltages

The PAM-1 Multi-Voltage Relay from Air Products & Controls provides a reliable and flexible solution for control and status-feedback applications. Because it supports one of three input voltages (24 VDC, 24 VAC or 120 VAC), this module works well in fire alarm panels, HVAC systems, lighting control, security systems and building‐automation setups. It delivers 10 ampere Form-C contacts, making it capable of switching significant loads while maintaining a compact footprint.

Versatile Input and Output Performance

This relay allows technicians to standardize on a single module across various power supplies. Moreover, it includes a red LED indicator that illuminates when the coil energizes, allowing quick visual verification of status. Additionally, the encapsulated construction helps protect internal components and ensure long‐term reliability in demanding environments.

Easy Installation and Reliable Construction

Installers can mount the PAM-1 using provided self-tapping screw, double-sided adhesive tape, or simply place it in a back‐box. Because the module uses 12-inch flying leads, it connects easily to field wiring. Its compact size and simplified wiring help reduce installation time and streamline service calls.

Key Features

• Supports 24 VDC, 24 VAC or 120 VAC input voltages

• 10 A Form-C (SPDT) contacts suitable for control of auxiliary devices

• Red LED indicator for “coil energized” status

• Encapsulated design with flying leads for flexible mounting

• Compatible with fire alarm systems, HVAC, lighting controls, security panels

• UL Listed and CSA or FM accepted (as per spec sheet)

Ideal Applications

The PAM-1 Multi-Voltage Relay is perfect for managing control devices in commercial buildings, industrial facilities, educational campuses, healthcare premises and multi-tenant structures. Whether you need to switch a fire alarm relay output, a damper motor, a lighting circuit or an access‐control device, this module supports versatile scenarios.

By combining multi-voltage capability, rugged construction, and ease of installation, the Air Products & Controls PAM-1 offers a professional and cost-effective solution for control system integrators and facility managers.
