Description

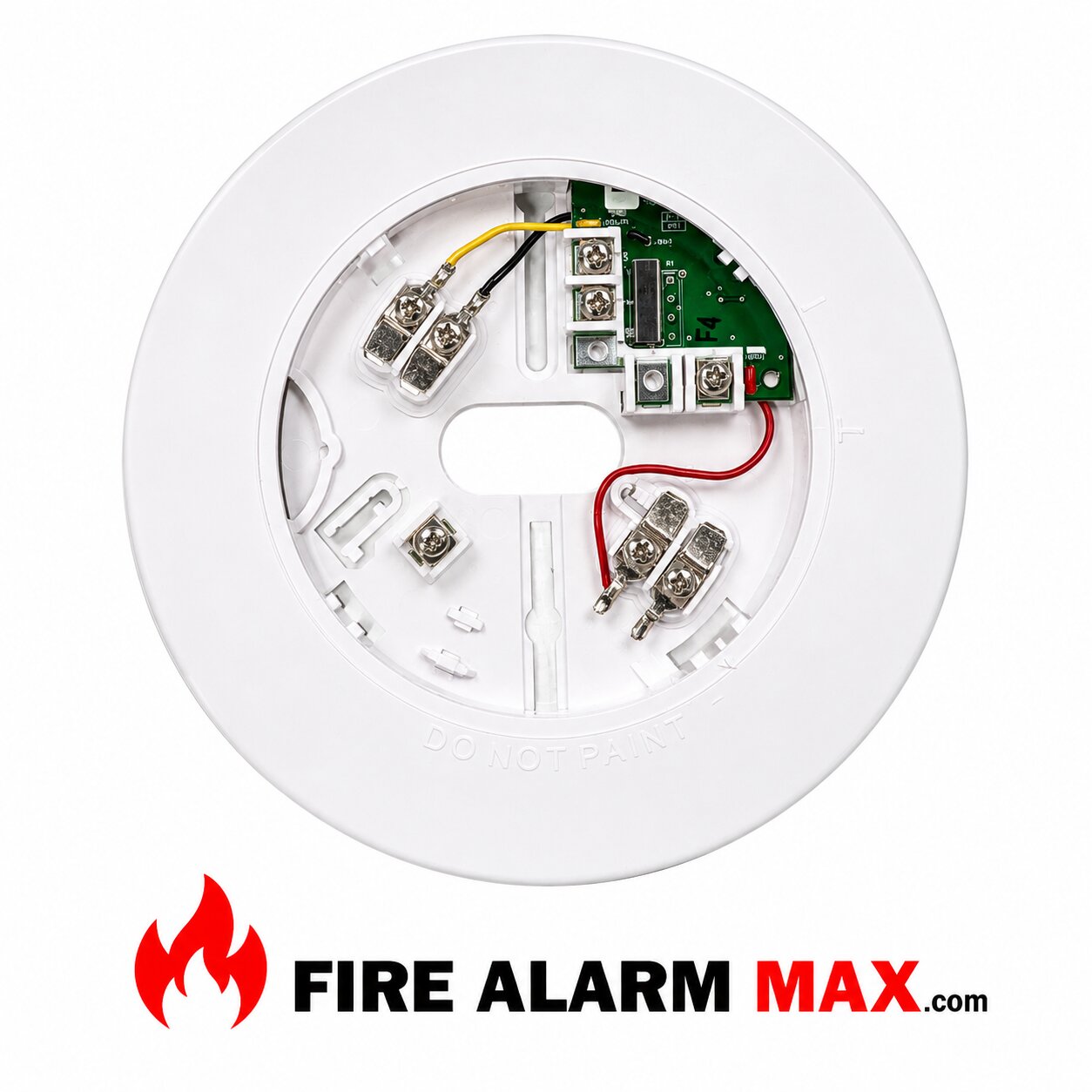

The Bosch F220-B6R is a standard four-wire detector base designed for use with Bosch F220 Series smoke and heat detectors. The Bosch F220-B6R provides reliable detector mounting and incorporates a built-in Form A alarm relay for connection to conventional fire alarm control panels and monitoring circuits. Therefore, it offers a dependable solution for commercial and industrial fire alarm installations requiring four-wire detector operation.

Bosch F220-B6R Function

The F220-B6R serves as the mounting and electrical interface for compatible Bosch F220 Series detector heads. As a result, when the detector enters an alarm condition, the integrated Form A relay activates and reports the alarm to the fire alarm control panel. In addition, the base supports both 12VDC and 24VDC fire alarm systems, providing installation flexibility across a wide range of applications.

Four-Wire Detector Base Design

The Bosch F220-B6R is specifically engineered for four-wire conventional fire alarm systems. Consequently, it provides separate power and initiating device circuit connections for enhanced system design flexibility. Furthermore, the four-wire configuration allows the detector to be used with virtually any compatible UL-listed four-wire fire alarm control panel.

Built-In Form A Alarm Relay

The F220-B6R incorporates a normally-open Form A alarm relay that activates when the detector enters alarm. Therefore, alarm conditions can be transmitted directly to the fire alarm control panel or other monitoring equipment. Additionally, the relay provides dependable alarm signaling for conventional fire detection applications.

12VDC and 24VDC Compatibility

The Bosch F220-B6R supports both 12VDC and 24VDC operating systems. As a result, installers can use the same detector base across multiple project types and control panel configurations. Moreover, dual-voltage compatibility simplifies inventory management and system upgrades.

Compatible Bosch F220 Series Detectors

The F220-B6R is designed for use with Bosch F220 Series detector heads, including:

• F220-P Photoelectric Smoke Detector
• F220-PTH Smoke Detector with Heat Sensor
• F220-PTHC Smoke Detector with Heat and CO Enhancement
• F220-135 Rate-of-Rise Heat Detector
• F220-135F Fixed Temperature Heat Detector
• F220-190F High Temperature Heat Detector

Consequently, the base supports a wide range of fire detection applications while maintaining consistent installation practices.

Remote Annunciator Support

The Bosch F220-B6R supports connection to the optional DRA-5 remote alarm annunciator. Therefore, alarm status can be displayed remotely when detector visibility is limited. Furthermore, remote annunciation improves maintenance efficiency and alarm identification.

Easy Installation and Maintenance

The F220-B6R features a low-profile design and interchangeable detector head compatibility. As a result, installation is simplified and future detector replacement can be performed without changing the base. Additionally, Bosch F220 detectors offer easy maintenance and testing procedures for long-term reliability.

Technical Specifications

• Model: F220-B6R
• Manufacturer: Bosch
• Type: Four-Wire Detector Base
• Operating Voltage: 12VDC or 24VDC
• Relay Type: Form A (Normally Open)
• System Type: Conventional Four-Wire Fire Alarm Systems
• Compatible Detectors: Bosch F220 Series Smoke and Heat Detectors
• Remote Annunciator Support: DRA-5 Compatible
• Wiring Configuration: Four-Wire
• Mounting Style: Detector Base Mounting
• Application: Commercial and Industrial Fire Alarm Systems
• Construction: Fire-Resistant Plastic
• Color: Off-White
• Compatibility: UL Listed Four-Wire Control Panels
• Installation: Indoor Use
• Listings: UL Listed when used with compatible F220 Series detectors

Applications

The Bosch F220-B6R is ideal for:

• Commercial fire alarm systems
• Industrial facilities
• Office buildings
• Schools and universities
• Healthcare facilities
• Warehouses
• Government buildings
• Retail centers
• Apartment complexes
• Conventional fire alarm installations
• New construction projects
• Fire alarm retrofit applications

Reliable Four-Wire Detector Base Solution

The Bosch F220-B6R combines four-wire fire alarm compatibility, Form A alarm relay operation, dual-voltage support, and seamless integration with Bosch F220 Series detectors in a dependable detector base. Overall, it provides a reliable foundation for conventional smoke and heat detection systems while simplifying installation, maintenance, and long-term fire alarm system performance.

F220-B6R Datsheet
