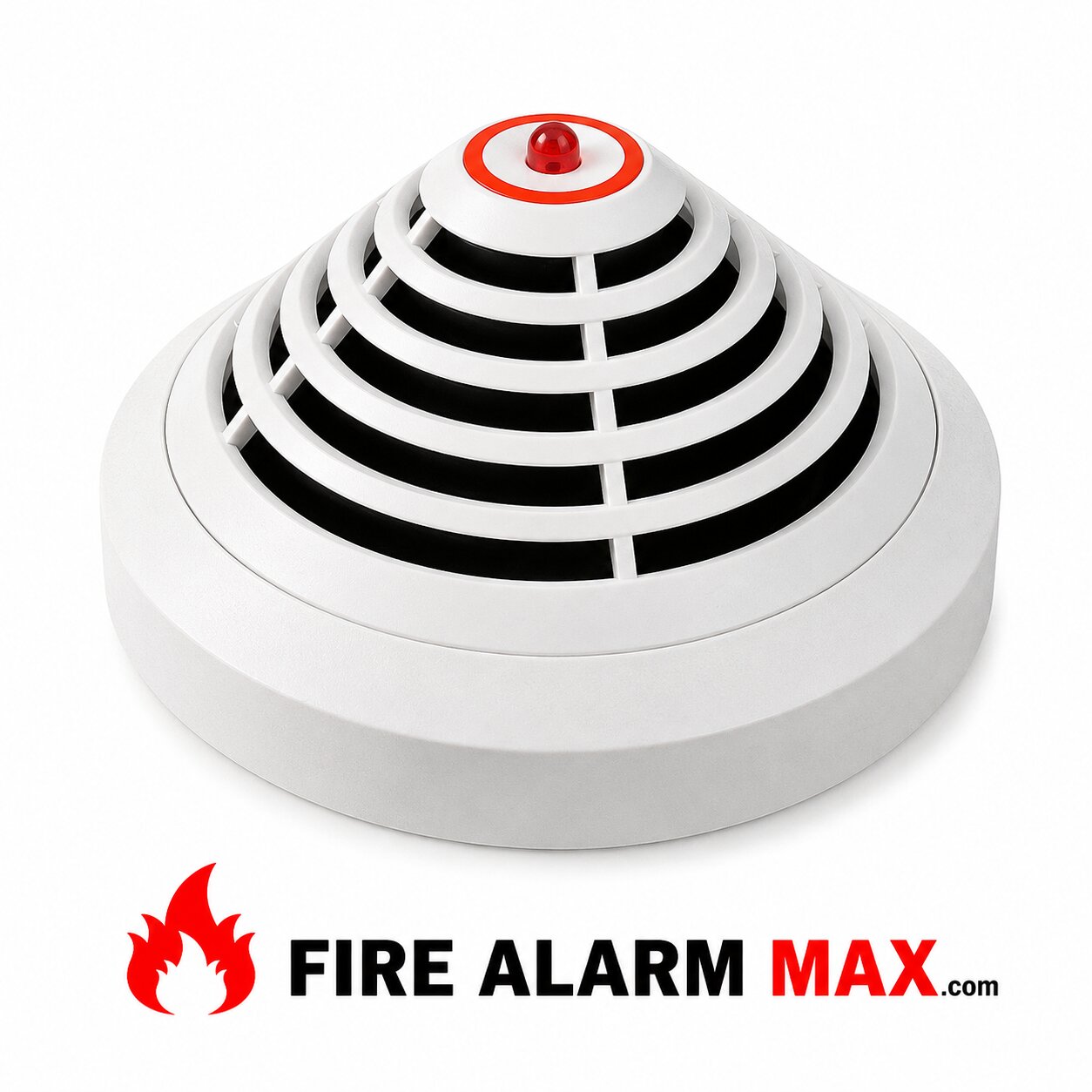

Bosch FCH-T320-R470 Heat Detector

This Product Information describes the entire product range of the FCP-320/FCH-320 Conventional Automatic Fire Detectors.

The FCP-320/FCH-320 Conventional Automatic Fire Detectors work based on conventional technology. Combine standard detection methods.
This method uses state-of-the-art processing methods to evaluate the signals from the gas sensor and scattered light sensor or thermal sensor.

Thanks to the higher information content of the multisensor detectors, the use of detectors – possible in environments where pure smoke detectors cannot – used.
– FCP-OC320: Combined optical, gas-sensitive smoke detectors
– FCP-OT320: Combined optical, and thermal smoke detectors
– FCP-O320: Optical smoke detectors
– FCH-T320: Thermal detectors.
The detector’s timeless and innovative design is a result of the cooperation between engineers and designers. With this design, it is possible to reconcile the contradictory goals of a generous installation space and a small detector.
The placement of the individual display on the detector tip is the first externally visible characteristic of the installation-friendly development concept.
It is suitable for surface and flush cable mounting and includes separate mounting points for dropped ceilings and concealed sockets. For surface mounting, the cable may be fed through on the side.
The integrated strain relief for inter-floor cables prevents the removal of cables from the terminal after installation. The terminals – easily accessible; a retainer for the end-of-line resistor – integrated. Cable diameters of up to 2.5 mm2 can – used.
Equipped with a damp room seal.
The operating voltage range is 8.5 V DC to 30 V DC. This allows the detectors to – used with almost every common conventional fire panel.
