Description

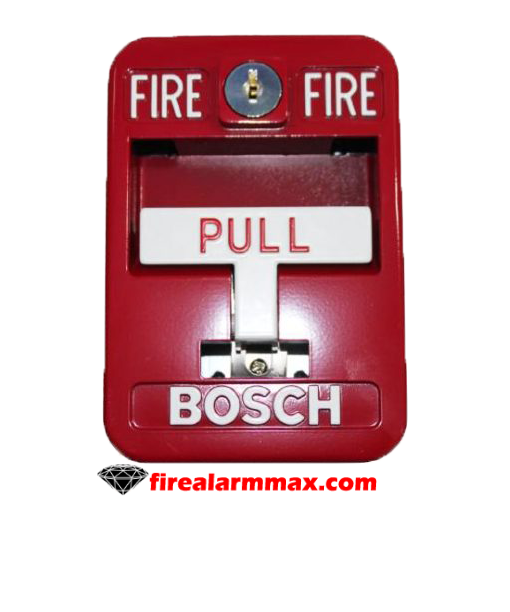

The Bosch FMM-325A manual stations are use in the polling circuit of the Bosch Security Systems, Inc.’s FPA‑1000 Analog Addressable Fire Panels, and the D9024, D8024, and D10024A Fire Alarm Control Panels (FACP). Also, the Bosch FMM-325A communicates with the control panel (both power and data) over a two‑wire polling circuit.

Furthermore, the manual station’s address on the polling circuit is set by programming an EEPROM microchip. Besides, the D5070 Analog Device Programmer is require to set the address. All commercial buildings use manual stations. These manual stations allow people evacuating a building to initiate an alarm. The FACP identifies the alarm point on the polling circuit as well as the alarm lever latches in the pulled position.

In addition, these manual stations are for indoor use only. They have die-cast housings that flush mount on a single gang back box. For surface mounting, use an FMM‑100BB‑R Surface‑mount Back Box.

Features / Specifications

• Digital data communications and power provided over a two-wire circuit
• EEPROM addressing in module unit
• Rugged die‑cast housing and corrosion-resistant construction
• Single‑gang mounting
• Latching alarm lever
• Temperature: +14°F to +120°F (-10°C to +49°C)
• Input: 24 VDC nominal
• Operating: 17 VDC to 41 VDC
