Description

The Bosch FMM-7045 MUX manual stations are UL Listed as fire alarm initiating devices. Also, they can be connect along with other multiplexes (MUX) devices on the FPE-7039, D7039, DS9431 MUX expansion modules. Besides, the FPE-7039 or D7039 are use with the FPD‑7024 or D7024 FACPs. The DS9431 is use with the DS9400 FACPs. The FACPs supervise the entire MUX loop, including the manual stations, for troubles, alarms, and ground fault conditions. Each manual station occupies only one address on the MUX bus. A manual station can be address for any point within the MUX module’s 9 to 255 range.

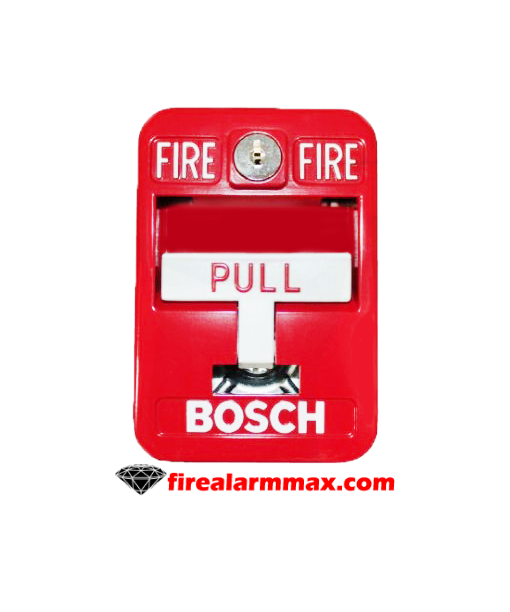

In general, the single‑action Bosch FMM-7045 has a white pull‑down lever in its center. Furthermore, the dual‑action FMM‑7045‑D has a white push lever above the white pull‑down lever in its center. When pulled down the pull‑down lever latches and sends an alarm signal to the control panel over the MUX bus. The pull‑down lever only resets when the correct key unlocks the manual station and the unit is opened. The latched lever can then be restore to the normal position.

Features / Specifications

• Easy addressing with rotary switches
• Terminal connections and low current draw
• Key‑lock reset
• Replaceable scored acrylic break rod option
• UL Listed and ADA compliant

Download the Specification sheet in *.pdf format.
