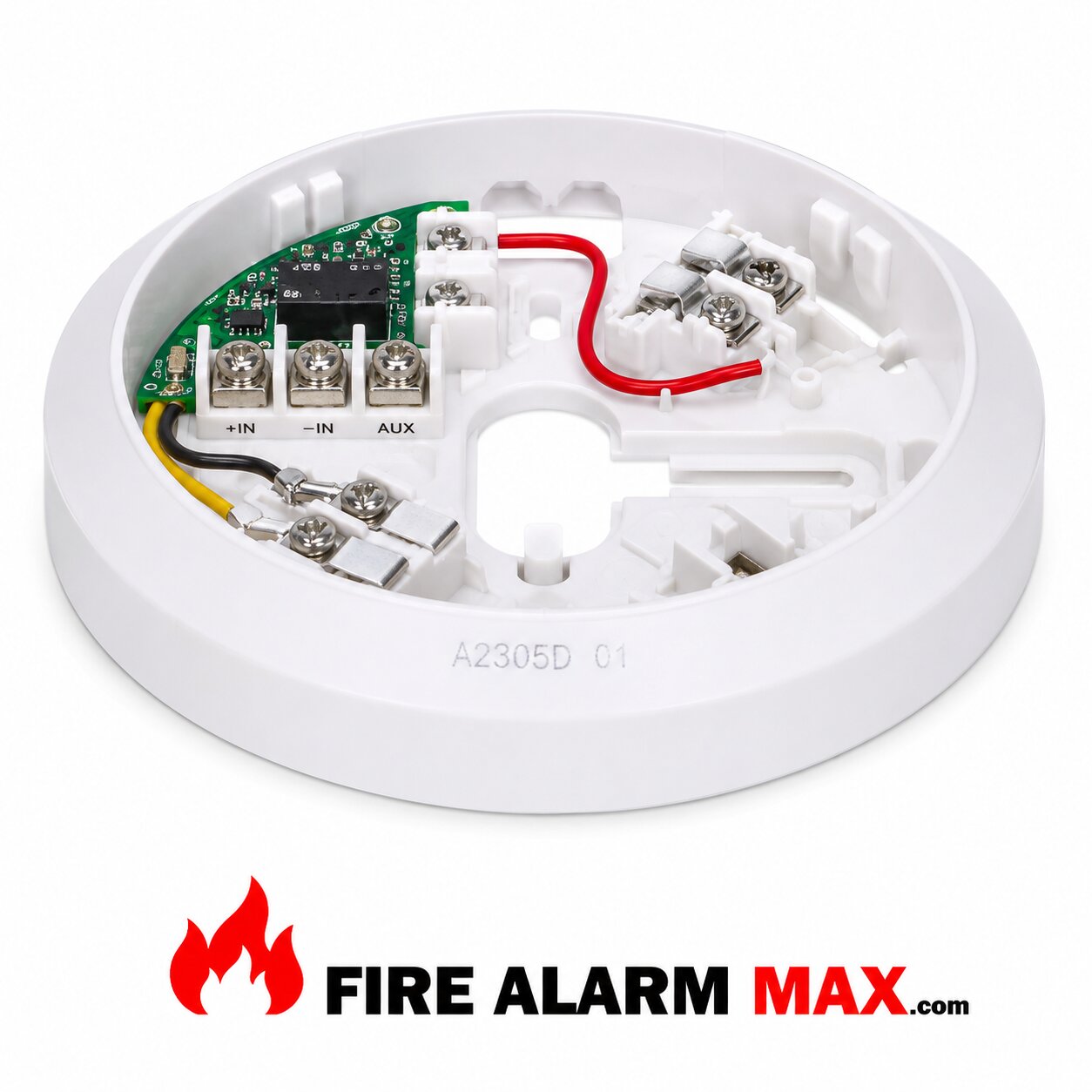

Bosch MSR 320 Base With Relay
Mounting notes for MSR 320
• The bases – prepared for surface cable feed at
four positions with prepared knockouts.
• Flush mounting cable feed occurs through the base
center.
• Keep the shielding wire as short as possible and
isolate it
Locking against unauthorized detector removal
Cable feed allows for surface or flush mounting
Relay can – used to integrate third-party applications
Certifications and approvals
Region Regulatory compliance/quality marks Europe CE MSR 320
Parts included: 1 Detector base with relay.
Technical specifications
Connections: Power supply (0 V, +V). a1/a2, b1, b2. C-point. Shielding. Relay (NO, C, NC).
Relay contact load: 1 A @ 30 V DC
Housing material: ABS (Novodur)
Housing color: similar to RAL 9010
Dimensions: Ø 120 x 22.7 mm
Weight: 82 g
