Description

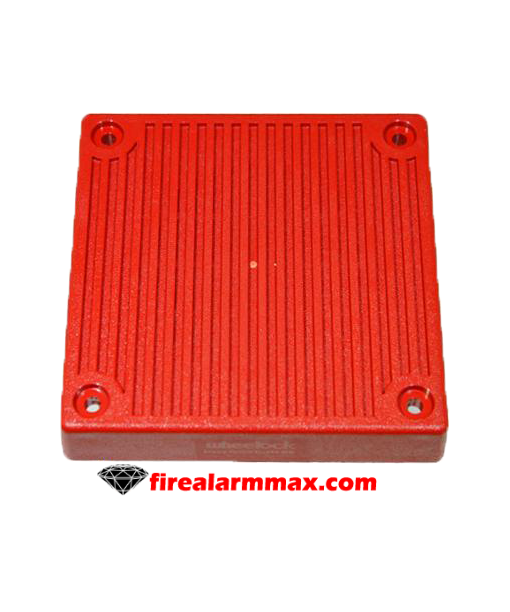

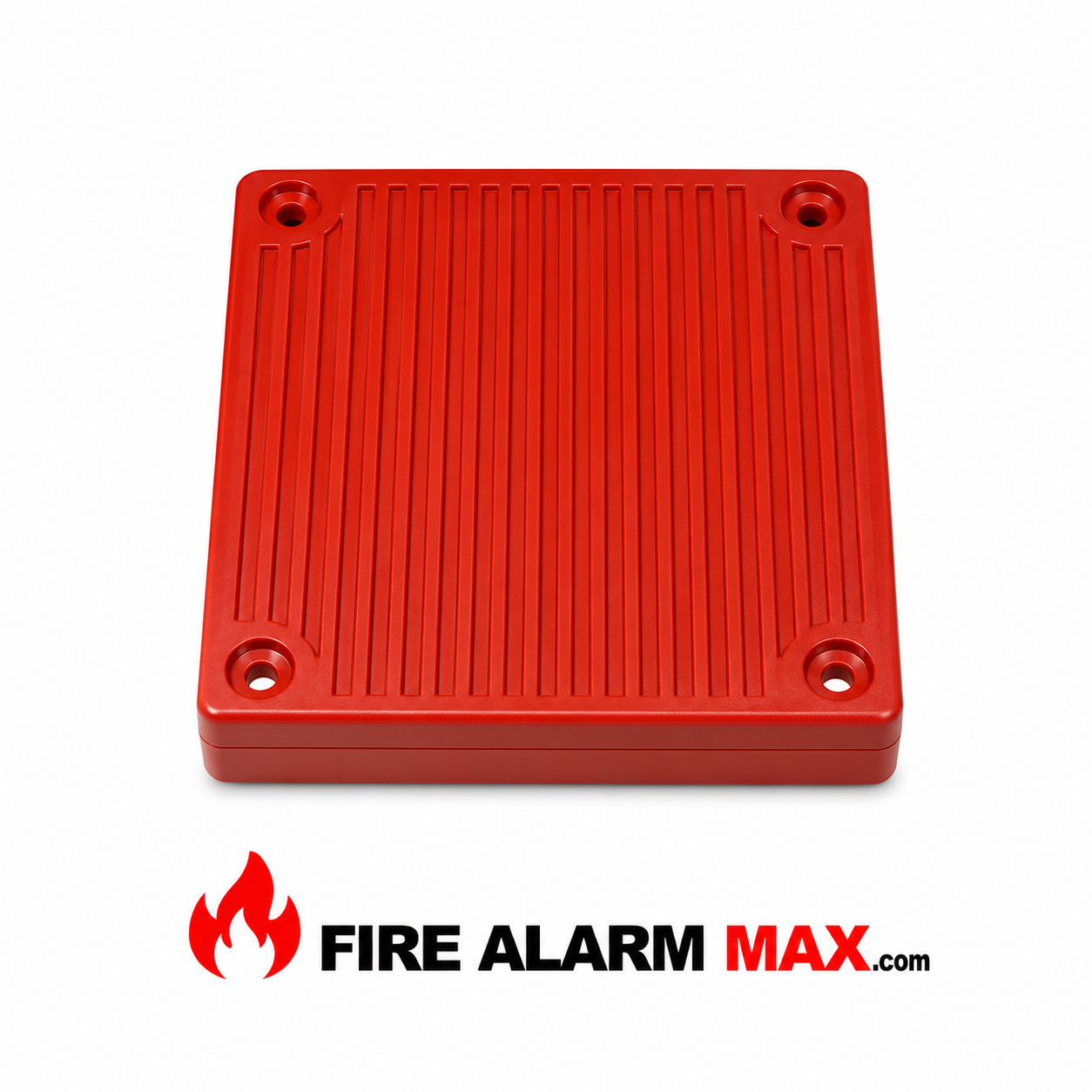

Cooper Wheelock AH-24WP-R. These Wheelock horns offer tone choices of either
continuous horn or temporal pattern (Code 3) tone
when constant voltage from the fire alarm control
panel (FACP) applied. Each tone has three
field‑selectable volume levels.
These horns synchronized when used with the
SM (single) and DSM (dual) Synchronization Modules
or a compatible control panel. If not synchronized, the
temporal sound patterns might overlap and not be
distinctive.

Mounting Considerations
Use as Combination Appliance
Where combination appliances required, the
AH‑24‑R Horn used with the RSSP‑241575W‑FR
Fixed‑candela, RSSP‑24MCW‑FR Multi‑candela, or
RSSP‑24MCWH‑FR High‑candela Retrofit Strobe Plates
that designed to meet or exceed the latest
requirements of NFPA 72, ANSI 117.0 and UL 1971.
The horns and retrofit strobe plates are also
compatible with the SBL2‑R Retrofit Device Back Box.

Outdoor or Severe Environment Applications
For an outdoor application or a severe environment
(NEMA 3R) application, the AH‑24WP Weatherproof
Horn in combination with a WBB‑R Weatherproof Back
Box must be mounted on a flat wall such that the wall
covers the entire rear surface of the back box. The
back box must have its drain holes pointed toward the
ground. The knockouts in the rear surface of the back
box must remain intact.
The knockout hole on top of the back box is sized for a
half‑inch conduit and matching connector. A proper
watertight conduit fitting must be used.

Download the Specification sheet in *.pdf format
