Description

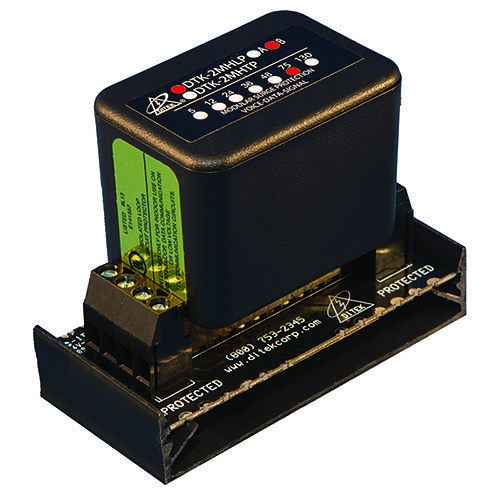

Ditek DTK-2MHLP75BWB Series low voltage surge protectors offer robust protection in a compact package. Designed for easy installation, the series features convenient field-replaceable modules and a Snap-Track base system, allowing multiple circuits to be protected using a common ground point.

**Ditek DTK-2MHLP75BWB Features: **
– Protects two low-voltage circuit pairs per module
– Hybrid design using SAD and GDT technologies
– Shorts to ground when compromised
– Field-replaceable modular design with single-point ground for fast and easy installation
– Six voltage configurations available to protect various types of circuits
– Hardwired multi-base mounting system allows protection for up to ten pairs with a common ground
– Suitable for use on both AC and DC low-voltage circuits

**Applications: **
– Fire Alarm Panel NAC, SLC, PIV, and IDC Circuits
– Burglar Alarm Panel NAC and IDC Circuits
– 70V Speakers and Audio Equipment
– Low-Voltage Landscaping Lighting and Lighting Control Circuits
– 4-20mA Current Loops

**Accessories: **
– To order a module with a base, add “WB” to the end of the part number
– Test Module Kit, p/n DTK-2MHLPTM

**Ditek DTK-2MHLP75BWBTechnical Specifications: **
– ** Service Voltage: ** 5V, 12V, 24V, 36V, 48V, 75V
– ** MCOV: ** 6V, 18V, 33V, 48V, 64V, 90V
– **Clamping Voltage:** 6.8V, 21.6V, 39V, 57V, 76V, 108V
– **Protection Modes:** Common Mode (L-G)
– **Surge Current Rating:** 20,000A
– **Max. Continuous Current:** 5A
– **Failure Mode:** Short to Ground

** Mechanical Specifications: **
– **Base Connection Method:** Hardwired terminals, 30-12 AWG
– **Module Connection Method:** Edge card into mounting base
– **Housing:** ABS
– **Operating Temperature:** -40°F to 158°F (-40°C to 70°C)
– **Maximum Humidity:** 95% non-condensing
– **Dimensions:**
– **Module:** 2.1” L x 1.4” W x 1.9” H (53 mm x 36 mm x 48 mm)
– **Module with Base:** 3.25” L x 1.5” W x 2.6” H (83 mm x 38 mm x 66 mm)
– **Weight:**
– **Module:** 1.2 oz (34 g)
– **Module with Base:** 2.8 oz (79 g)
