Description

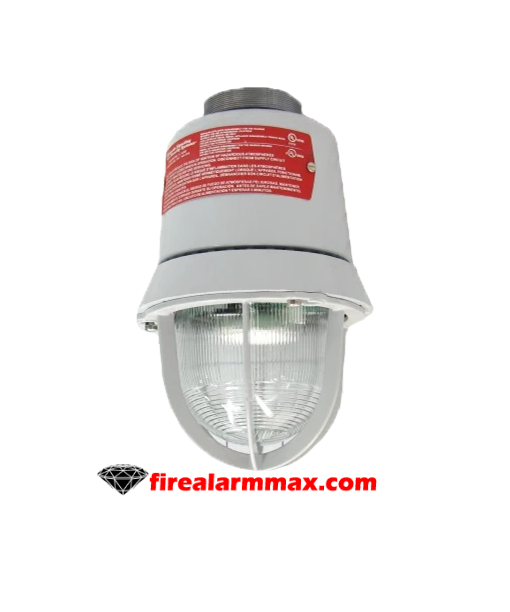

Edwards 116DEGEX-FJ

Hazardous location strobes a re life-safety signaling appliances designed for installation in hazardous environments. Rigid specifications and state-of-the-art technology provide for high visual output and low maintenance.
W hen pendant, wall or ceiling mounted. The 116DEGEX-FJ meets or exceeds the requirements of UL 1971 Signaling Appliance for the Hearing Impaired.
Its intended for indoor use in UL 1971 listed compatible fire alarm systems. The strobe flashes a 360-degree beam of light approximately at 1 Hertz. With a UL 1971 125 cd ceiling and 60 cd wall light output. With the guard installed, the strobe flashes a beam with an output of 86 cd ceiling and 51 cd wall.

Standard Features
UL 1971 listed and ADA compliant for the hearing impaired
Negligible in-rush current
Approved for fire alarm applications
Wall, ceiling, or pendant mount
Diode-polarized for use in electronically supervised circuits
High-impact glass dome
1 Hertz flash rate (65 flashes per minute)
Synchronized with external module
60 cd wall or 125 cd ceiling, per UL 1971
Factory sealed – no external seals required
Quick connect – threads onto mounting module for easy installation
Epoxy powder coat for corrosion resistance
cUL listed to CAN/ULC-S526-07 and UL 1638 for indoor and outdoor applications

Application

Hazardous location strobes a re designed for use in compatible EDWARDS fire alarm systems. And other applications requiring electrical supervision of signaling circuit field wiring.
These strobes a re suitable for many locations including mines, granaries, flour mills, tankers, refineries, and laboratories. And other applications where environmental hazards may b e present.
W hen pendant, wall or ceiling mounted, strobes a re cUL listed to CAN/ULC-S526-07 for indoor and outdoor applications. And UL 1971 Listed (ADA compliant) for indoor visual signaling applications in non-sleeping areas.
