Description

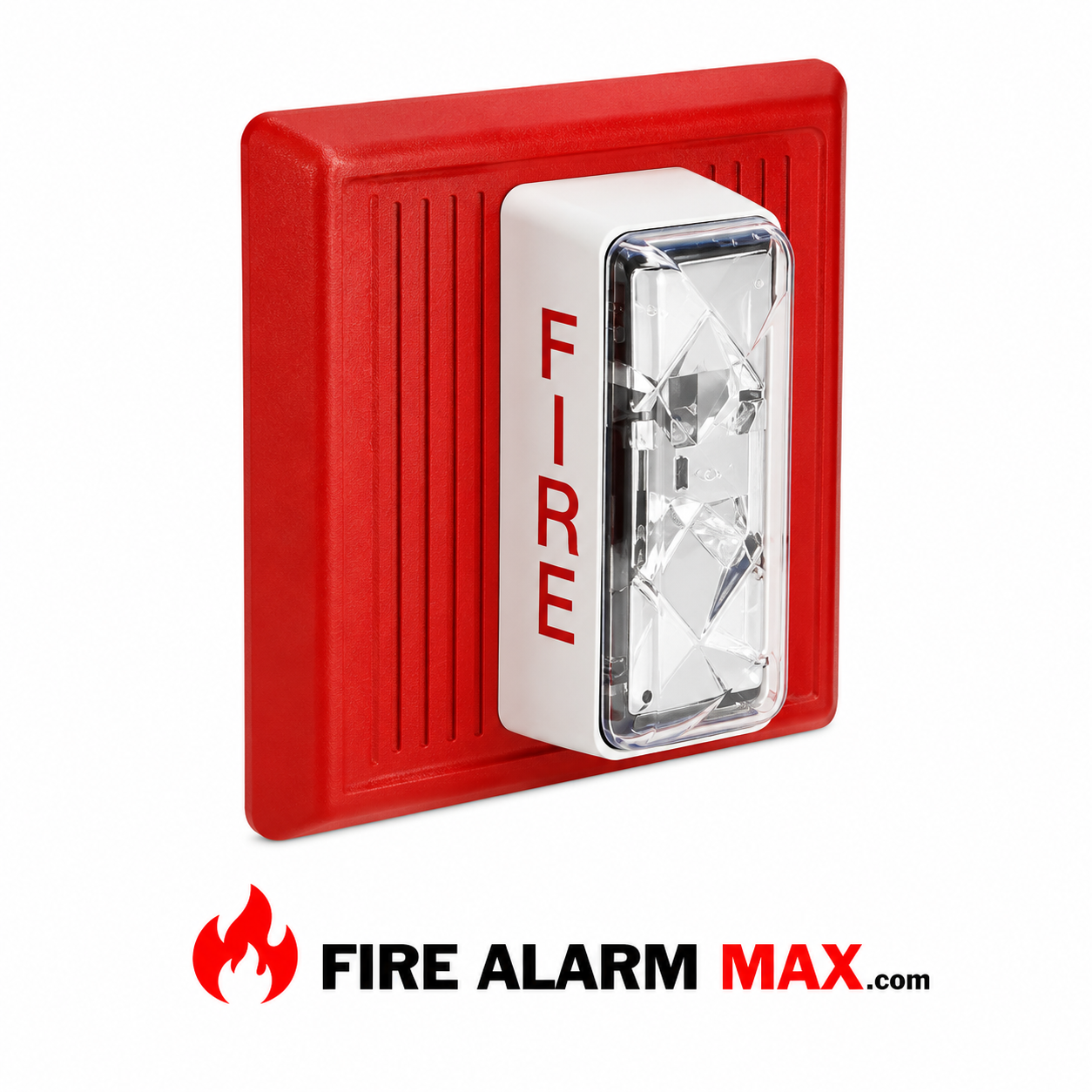

Edwards 2452THS-110-R Temporal Horn Strobe i s specially design for use with compatible life safety communication. And control equipment to alert occupants of a life safety event. The horn emits a piercing low frequency sound. That i s easily heard above moderate ambient noise levels. The flash from its strobe can b e notice from any position in the room, corridor, or large open space.

Integrity’s rug plastic housing i s made from durable and fire retardant, high impact plastic with a slightly textured surface. Its ingenious mounting plate firmly holds the device in place with a single screw. A separate trim plate i s not require. Terminals accept up to #12 AWG (2.5mm²) wire for polarized connections.

Where ceiling orientation, other languages, or different lens markings a re require. Edwards offers optional 2440KTW and 2440KTC series Lens Marking Kits. These optional lens markings simply snap on to the strobe.

Edwards 2452THS-110-R Temporal Horn Strobe integrity horns and horn-strobes ar e designed for 16 to 33 Vdc operation. And must b e connected to signal circuits that output a constant (not pulsed) voltage.

Some of the features and specifications can b e describe b elow:

• UL 1971-listed synchronizing strobe
• Adjustable Audible Output
• Genesis-compatible
• Approved for public and private mode applications
• Durable red or white Noryl front plate
• Field changeable field markings
• Easy Installation
