Description

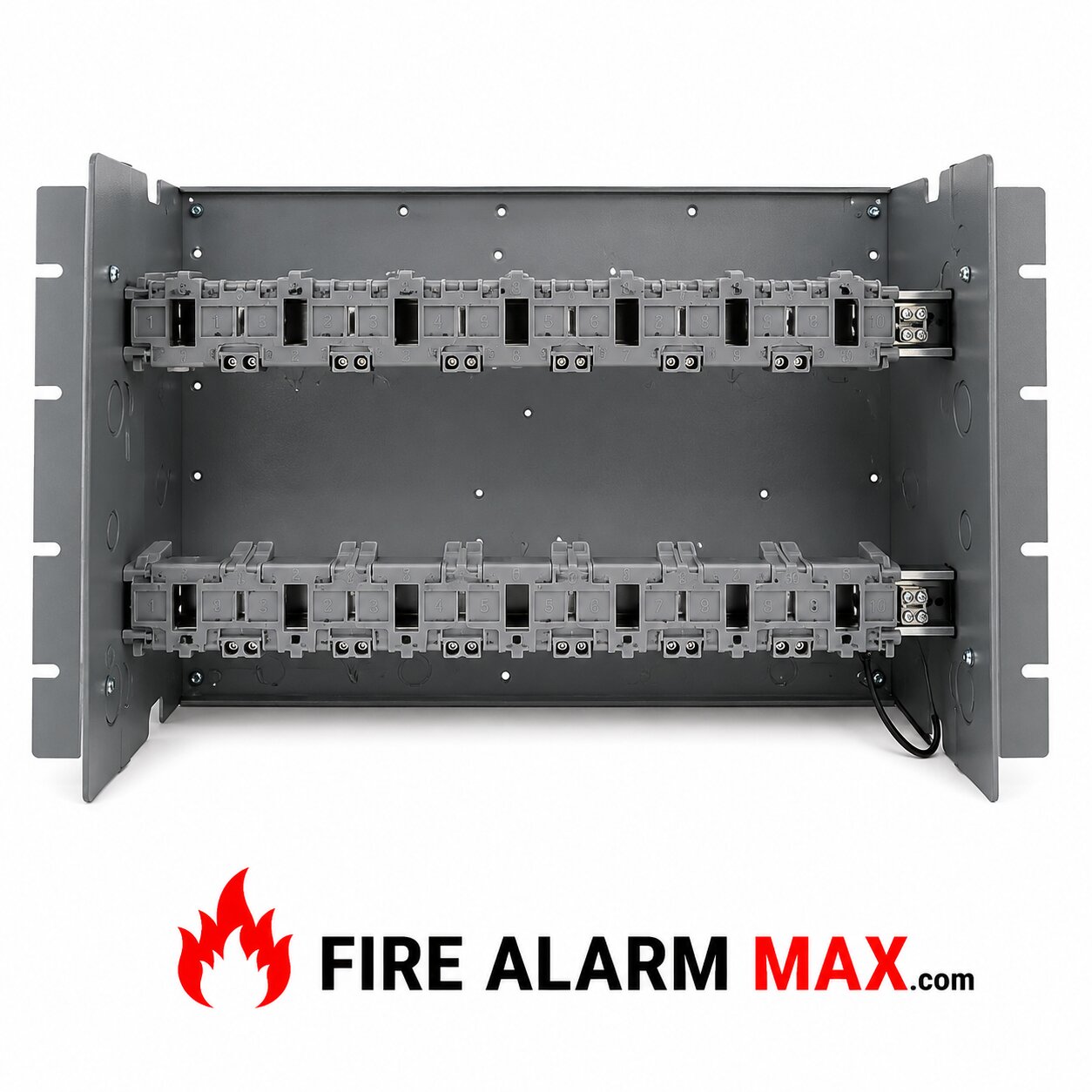

Edwards 3-CHAS7

EST3 has a wide selection of cabinet arrangements allowing the greatest use of EST3’s flexible modular design. Lobby enclosure wall boxes a re manufactured from #14 AWG cold rolled steel with a gray baked enamel finish. Lobby enclosure doors ar e manufactured from #14 AWG cold-rolled steel. Has a modern contoured door design with an integral viewing window. The exception i s the small lobby enclosure 3-CAB5. The 3-CAB5 wall box and non-contoured door a re #16 AWG cold rolled steel. Lobby enclosure doors come with gray-baked enamel or optional red-baked enamel finishes. The EST3 lobby enclosures back boxes, doors, and chassis units a re ordered and shipped separately. The 3-CAB5 lobby enclosure has a door and back box providing space to mount five local rail modules.
The EST3 remote closet cabinet design allows the installation of control panel electronics in electrical closets. The remote closet cabinets have left-hand hinged doors. Available with a red finish only. Optional display modules used for system diagnostics display. Mounted behind the closet cabinet door and a re not visible with the door closed.

Edwards 3-CHAS7

Lobby enclosure doors come with gray-baked enamel or optional red-baked enamel finishes. The EST3 lobby enclosures back boxes, doors, and chassis units a re ordered and shipped separately. The 3-CAB5 lobby enclosure has a door and back box providing space to mount five local rail modules.
The EST3 remote closet cabinet design allows the installation of control panel electronics in electrical closets. The remote closet cabinets have left-hand hinged doors. Available with a red finish only. Optional display modules used for system diagnostics display. Mounted behind the closet cabinet door and a re not visible with the door closed.

Datasheet
