Description

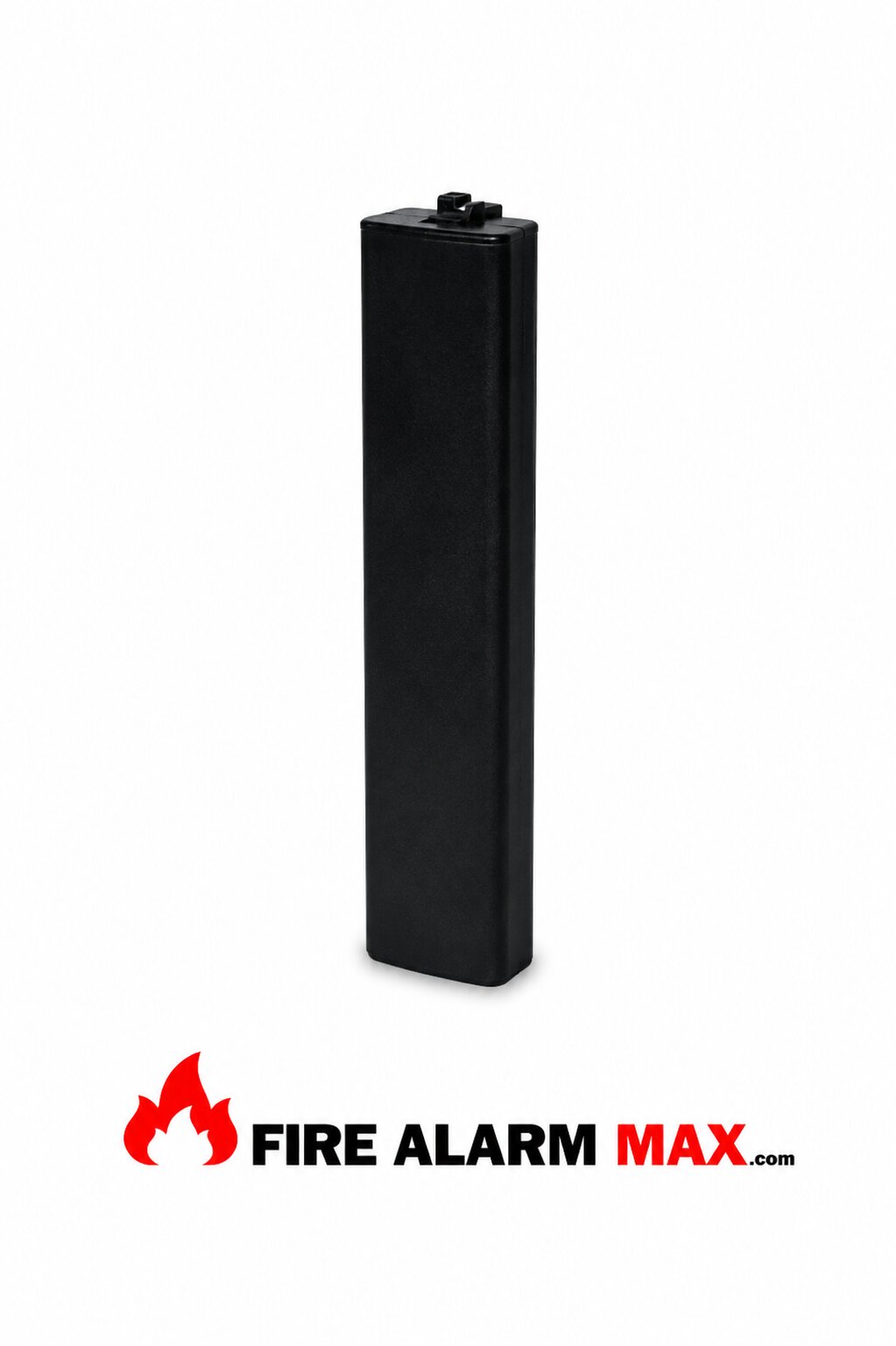

Edwards 4-FIL Blank Filler Plate

Control-Display Modules come with 24 LED indicators
Programmers configure indicators to display their pre-selected color according to the type of information conveyed by the indicator.
A level of design efficiency that can reduce the number of display strips necessary for an application.

Control display modules simply snap into place on the inner door of control panels or annunciators. Can – mounted in any unused display location. They can – positioned according to use, and spaced to create a physical separation between different control functions.
Control modules feature large and easy-to-see buttons.
Printable slide-in label inserts give control-display modules context with color-coded shading and other effects. They can – localized for regional language requirements and printed on the fly to
accommodate system changes as they – implemented.

Simple design, sophisticated operation
Designed to provide simple identification and operation of system functions for the emergency user. This configuration flexibility means that there – fewer models needed to cover a wide array of applications. Just four models handle all the control and display options needed for EST4 operation.
At each indicator location, display modules have five individual LEDs: red, yellow, blue, green, and white. At configuration time the system designer matches the color of the LED to the needs of the system design. This allows maximum use of indicators and switch locations on each module.
Multi-use modules increase efficiency
Flexible multi-use design allows the same control-display model to – used for several different applications.
Switches. They can – grouped into a latching interlock to support operations that must – kept separate. The interlock of any combination – right up to the full module complement of 24 switches.
Its design flexibility is sure to inspire new and creative ways to make buildings safer.

Edwards 4-FIL Blank Filler Plate
