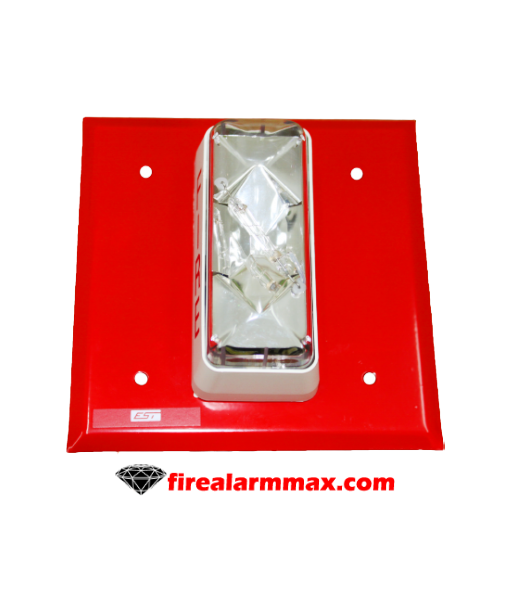

Edwards 405-5A-T strobe comes specially designed for use with compatible life safety communication and control equipment to alert the hearing impaired of a life safety event. Also, strobes are available with 15/75 cd and 110 cd effective flash intensity. Besides, they are fully compatible with Genesis signals.
405 Series strobes exceed UL synchronization requirements (within 10 milliseconds over two hours) when used with a separately-installed EG1M Signal Master, or E-NAC Synchronization Module, or when powered by suitably enabled booster power supplies and control panels.
In fact, the Edwards 405-5A-T strobe lights flash from almost anywhere in the room, hallway, or large open space. In addition, 405 series strobes are UL 1971 listed with ceiling and wall cd intensity ratings (see Specifications). This is useful in areas where the Authority Having Jurisdiction (AHJ) permits ceiling-mount strobes.
405 Series strobes are designed for 16 to 33 Vdc operation as well and must be connected to signal circuits that output a constant (not pulsed) voltage. Furthermore, a diode is used to allow full signal circuit supervision, and polarized connections are made to terminals that accept up to #12 AWG (2.5mm²) wire.
Features / Specifications
| Weight | 4 lbs |
|---|---|
| Dimensions | 8 × 8 × 8 in |
| Brand |
Your Payment information is processed securely. We do not store credit card details, nor have access to your credit card information.
Orders ship same day
Thousands of parts in stock
Reliable products & service
Order anytime, anywhere
Edwards 405-5A-T strobe comes specially designed for use with compatible life safety communication and control equipment to alert the hearing impaired of a life safety event. Also, strobes are available with 15/75 cd and 110 cd effective flash intensity. Besides, they are fully compatible with Genesis signals.
405 Series strobes exceed UL synchronization requirements (within 10 milliseconds over two hours) when used with a separately-installed EG1M Signal Master, or E-NAC Synchronization Module, or when powered by suitably enabled booster power supplies and control panels.
In fact, the Edwards 405-5A-T strobe lights flash from almost anywhere in the room, hallway, or large open space. In addition, 405 series strobes are UL 1971 listed with ceiling and wall cd intensity ratings (see Specifications). This is useful in areas where the Authority Having Jurisdiction (AHJ) permits ceiling-mount strobes.
405 Series strobes are designed for 16 to 33 Vdc operation as well and must be connected to signal circuits that output a constant (not pulsed) voltage. Furthermore, a diode is used to allow full signal circuit supervision, and polarized connections are made to terminals that accept up to #12 AWG (2.5mm²) wire.
Features / Specifications
| Weight | 4 lbs |
|---|---|
| Dimensions | 8 × 8 × 8 in |
| Brand |
