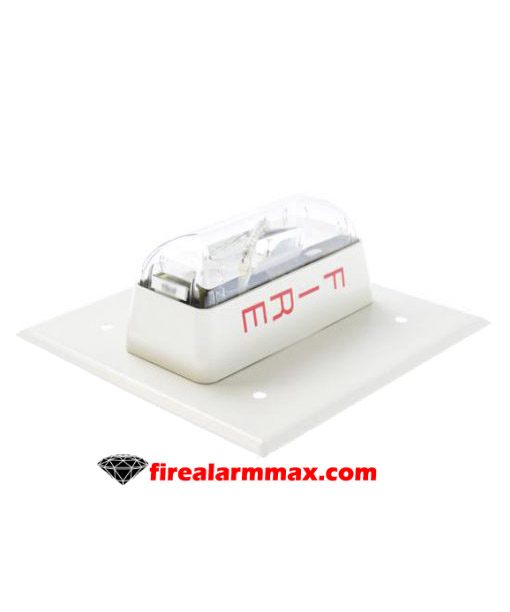

Edwards 405-6A-TW strobe comes specially designed for use with compatible life safety communication and control equipment to alert the hearing impaired of a life safety event. Strobes are available with 15 cd, 15/75 cd, 30 cd, 60 cd, and 110 cd effective flash intensity. They are fully compatible with Genesis signals.
405 Series strobes exceed UL synchronization requirements (within 10 milliseconds other over a two-hour period) when used with a separately-installed G1M Signal Master, or SIGA-CC1S Synchronization Module, or when powered by suitably enabled booster power supplies and control panels.
In general, the flash from Edwards 405-6A-TW strobes can be notice from almost any position in the room, corridor, or large open space. 405 Series strobes are UL 1971 list with both wall and ceiling cd intensity ratings. This is useful in areas where the Authority Having Jurisdiction (AHJ) permits ceiling-mount strobes.
405 Series strobes come designed for 16 to 33 Vdc operation and must be connect to signal circuits that output a constant (not pulsed) voltage. Also, a diode is used to allow full signal circuit supervision and polarized connections are made to terminals that accept up to #12 AWG (2.5mm²) wire. Besides, the strobe front plate is of steel construction finish with durable baked epoxy-polyester powder-coat paint.
Features / Specifications
| Weight | 1 lbs |
|---|---|
| Dimensions | 6 × 6 × 6 in |
Your Payment information is processed securely. We do not store credit card details, nor have access to your credit card information.
Orders ship same day
Thousands of parts in stock
Reliable products & service
Order anytime, anywhere
Edwards 405-6A-TW strobe comes specially designed for use with compatible life safety communication and control equipment to alert the hearing impaired of a life safety event. Strobes are available with 15 cd, 15/75 cd, 30 cd, 60 cd, and 110 cd effective flash intensity. They are fully compatible with Genesis signals.
405 Series strobes exceed UL synchronization requirements (within 10 milliseconds other over a two-hour period) when used with a separately-installed G1M Signal Master, or SIGA-CC1S Synchronization Module, or when powered by suitably enabled booster power supplies and control panels.
In general, the flash from Edwards 405-6A-TW strobes can be notice from almost any position in the room, corridor, or large open space. 405 Series strobes are UL 1971 list with both wall and ceiling cd intensity ratings. This is useful in areas where the Authority Having Jurisdiction (AHJ) permits ceiling-mount strobes.
405 Series strobes come designed for 16 to 33 Vdc operation and must be connect to signal circuits that output a constant (not pulsed) voltage. Also, a diode is used to allow full signal circuit supervision and polarized connections are made to terminals that accept up to #12 AWG (2.5mm²) wire. Besides, the strobe front plate is of steel construction finish with durable baked epoxy-polyester powder-coat paint.
Features / Specifications
| Weight | 1 lbs |
|---|---|
| Dimensions | 6 × 6 × 6 in |
