Description

Description

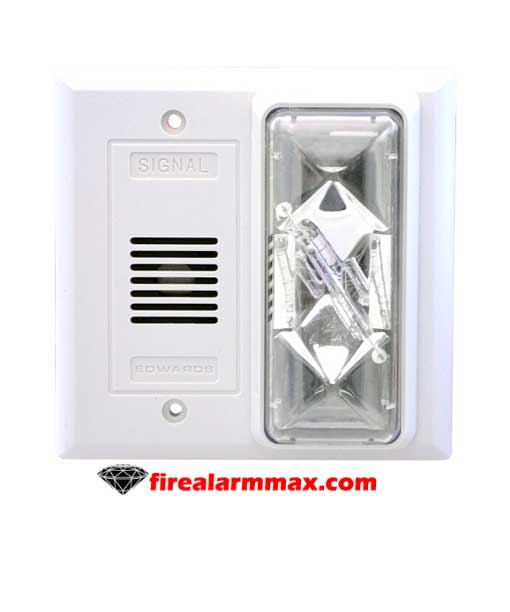

Edwards 692-5A-103 are electrically operated mini horns. This device requires 20-24V dc and full wave rectified signaling appliances to provide low power consumption. This model can be mounting indoor and on walls only.

Installation

1. Install a 2″ deep electrical box
   – Flush mount installation available as well.
2. Bring signaling circuit field wiring into the electrical box
3. Wire the device and observe the polarity.
4. When connections are complete, mount device onto the electrical box and secure with supplied screws.
5. Apply power to the control panel. Initiate an alarm to verify the device operates. Reset the panel and return to supervisory mode.

Safety Instructions

A qualified electrician familiar with local code requirements must install this device. Failure to follow this precautions could result in property damage, injury, or death.
