Description

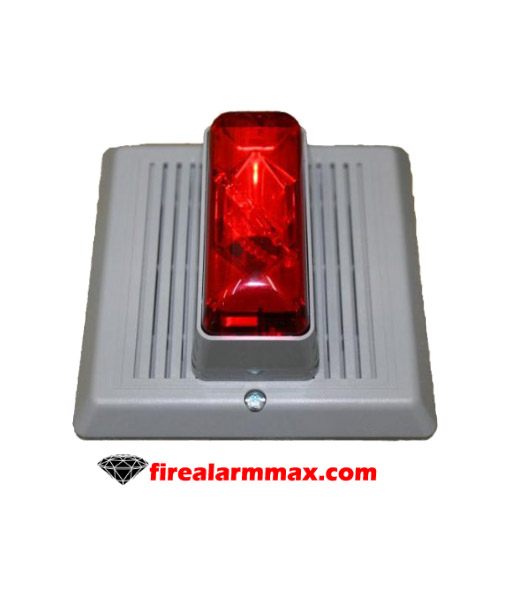

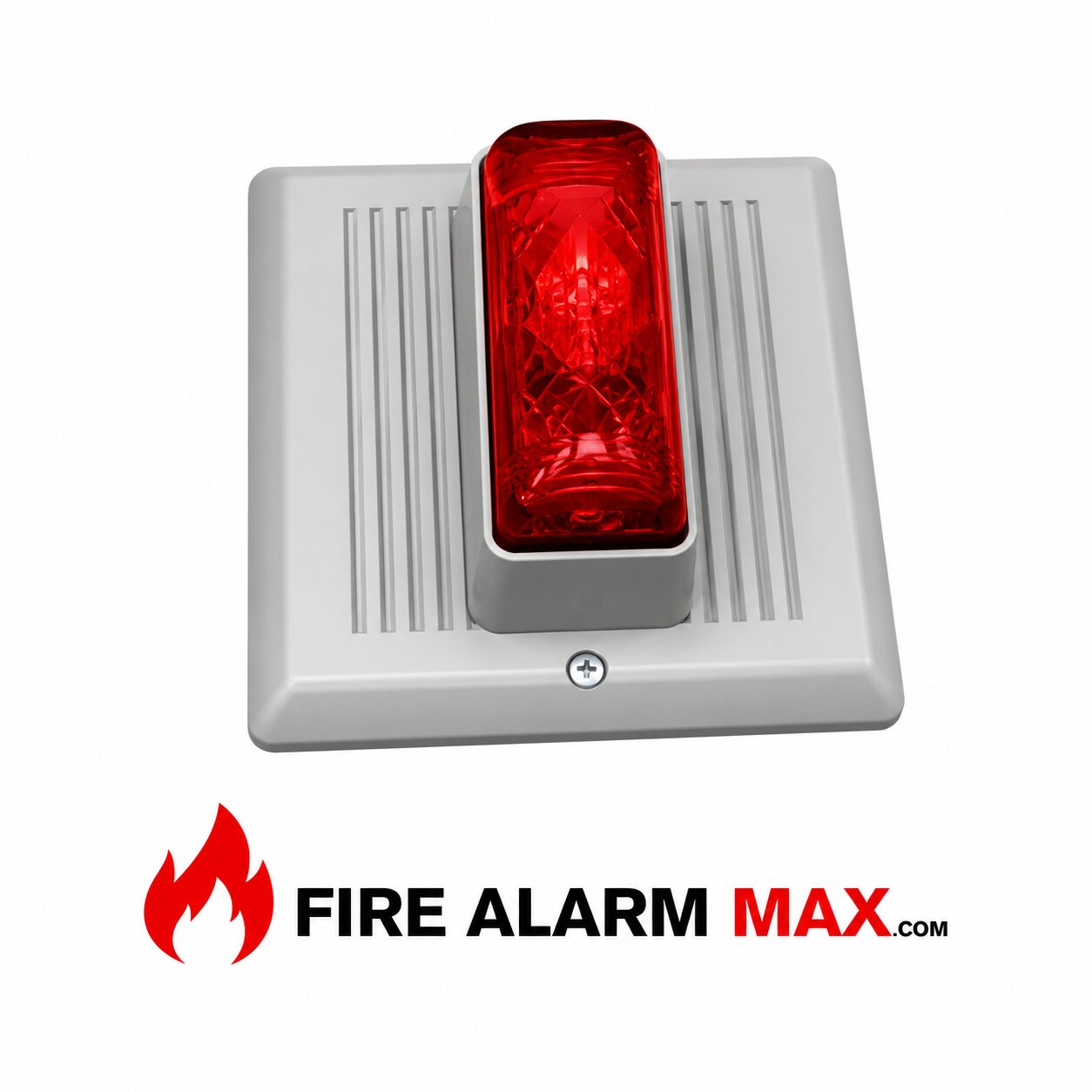

The Edwards 869STRR-AQ xenon strobe beacons with horns are bright, low-current, high-decibel, combination signals designed for use where a distinctive visual or audible signal is required. Also, the housing is made of gray, engineered thermoplastic. The strobe and horn can be operated independently.

In general, the Edwards Est 869STRR-AQ horn strobe series beacons can be flush-mounted. Besides, they come designed to mount in a standard 4″ (102mm) square electrical box with an extension ring (total min. depth of 3″ (76mm) not supplied). In addition, the Edwards Est 869STRR-AQ AdaptaBeacon is for indoor flush mounting in manufacturing sites. Furthermore, used where a distinctive visual or audible signal is required for timing, scheduling, paging, process control, and general alarm applications.

Features / Specifications

• Xenon strobe light source with a horn
• Flash rate 60 fpm
• Low current draw
• Diode Polarized for use in electrically supervised circuits
• Versions suitable for indoor and outdoor applications
• Operating indoor temperature range: 85% relative humidity at 86°F (30°C), 32°F to 120°F (0 to 49°C) variable ambient temperature.
• Operating outdoor temperature range: 95% relative humidity at 86°F (30°C), -31°F to 150°F (-35°C to 66°C) variable ambient temperature.
• Gray, engineered thermoplastic housing
• Terminals for easy wiring
• 100dB at 1 meter/90dB at 10ft. (measured in an anechoic chamber)
