Description

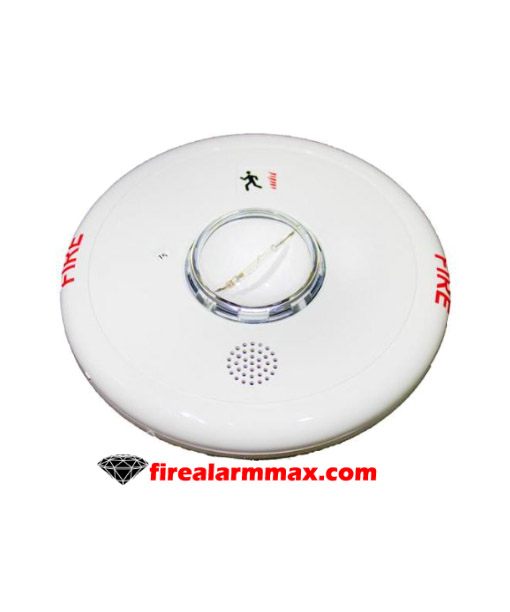

The Edwards EGCF-HDVM Signaling Genesis Series Ceiling Horn and Strobe are small, compact, attractive, audible-visible emergency signaling devices. Protruding no more than 1.6″ (41mm) from the ceiling, the EGCF-HDVM Genesis horn-strobes feature textured housings in neutral white or life safety red blending with any decor.
Thanks to patented breakthrough technology, Edwards Genesis strobes do not require bulky specular reflectors and lenses. Instead, an exclusive cavity design conditions light to produce a highly controlled distribution pattern. Significant development efforts employing this new technology have given rise to a new benchmark in strobe performance – FullLight technology.
FullLight strobe technology produces a smooth light distribution pattern without the spikes and voids characteristic of specular reflectors. Accordingly, this ensures the entire coverage area receives consistent illumination from the strobe flash. As a result, Genesis strobes with FullLight technology go well beyond the minimum UL-required “cross” pattern.
Also, Genesis horn-strobes feature textured housings in architecturally neutral white or eye-catching fire alarm red. An ingenious iconographic symbol indicates the purpose of the device. This universal symbol is code-compliant and is easily recognized by all building occupants regardless of what language they speak. Models with “FIRE” markings are also available.
Features:
- Housing Color: White
- Selectable: 15, 30, 75, or 95 cd output
- Operating Temperature: 32 to 120° F
- Operating Voltage: 24VDC
- Weight: 0.65 lb
- Wiring terminals accommodate #18 to #12 AWG (0.75 mm² to 2.5 mm²) wiring
- Indoor wall or ceiling applications only
Datasheet
