Description

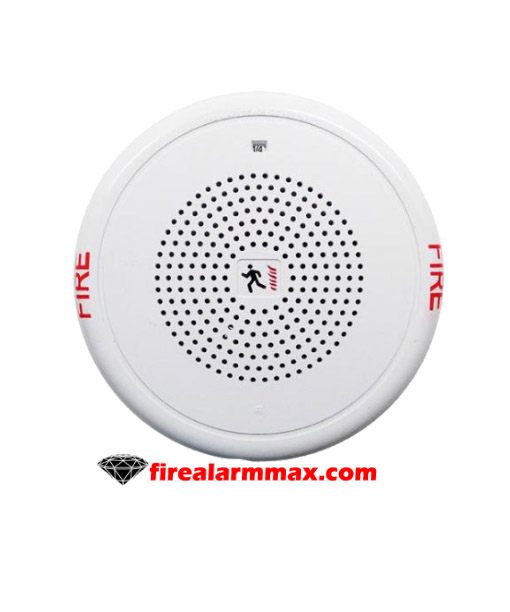

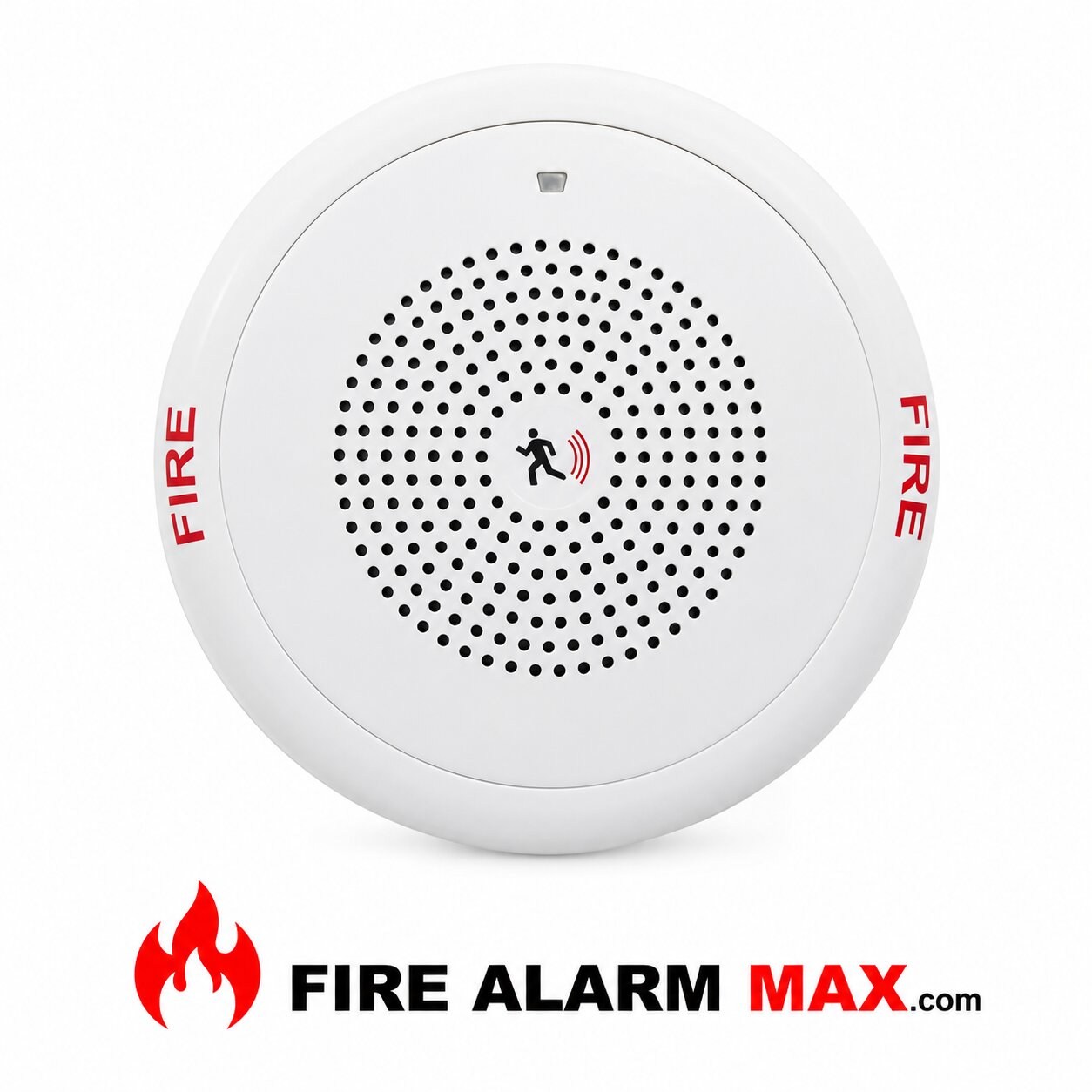

Edwards EST GCHFWF-S7 Ceiling Speaker combines high-performance output with a low-profile design to deliver a life safety signal solution that’s as versatile as it is effective. While Edwards EST GCHFWF-S7 Ceiling Speaker is designed to be mounted inconspicuously overhead, these devices are also rated for wall-mounted applications.

Besides, clear-lens speaker strobes are available in high and low candela models, which feature 15 to 95 or 95 to 177 cd output (see ordering information). Ceiling speakers feature ¼ W to 2 W operation, which allows devices to be easily fine-tuned to achieve maximum benefit in exchange for the lowest possible system overhead.

Light output and wattage tap settings are selectable with conveniently located switches. Settings remain clearly visible even after final installation, yet they are locked in place to prevent unauthorized movement after installation. In addition, high-fidelity models meet the NPFA 520 Hz requirements for newly constructed commercial sleeping areas. They also produce crisp, clear voice audio output that is highly intelligible over large areas.

These low-profile appliances feature textured housings in architecturally neutral white or eye-catching life safety red. Furthermore, optional ALERT or FIRE markings make them ideal for applications that require differentiation between life safety and mass notification alerts.

Features / Specifications

• High Fidelity 520 Hz speaker models available
• Field configurable – no need to remove the device
• Ideal for Mass Notification applications
• Unique low-profile design
• Unparalleled performance
• Easy to install
• Approved for public and private mode applications
• Operating Voltage: 70 Vrms
• Operating Temperature: 32 to 120° F (0-49° C)
• Humidity: 0-93% relative humidity
