Description

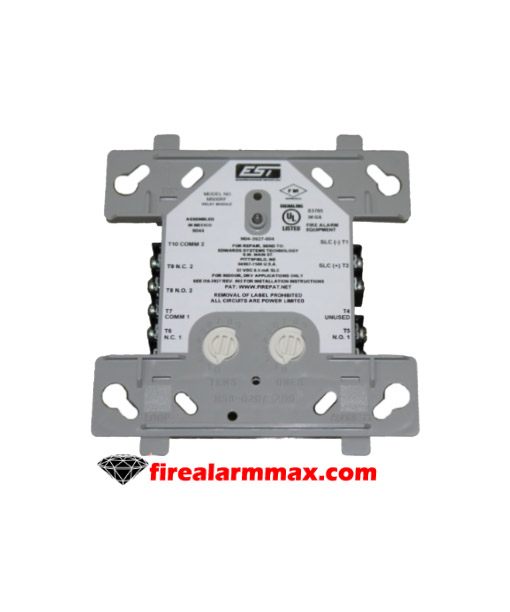

Edwards Est M500RF Addressable Relay Control Module, the module requires one connection on the rail chassis. Also, the Edwards Est M500RF must support 99 addressable analog sensors and 99 addressable analog modules. The controller also features a hinged front panel for a Control Display Module, which is available in a variety of LED and/or switch configurations.

Monitor and control modules can be use to supervise together with activate sounders, strobes, door closers, pull stations, waterflow switches, conventional smoke detectors, and more. Each module is rigorously design as well as test for electromagnetic compatibility and environmental reliability, in many cases exceeding industry standards. In addition, all existing FAST / System Sensor addressable devices can be reuse with the 3-AADC1 module.

In general, the Addressable Analog circuit cable must be a minimum of 18 gauge twist-pair with 6 twists per foot. This cable may be unshield or shield as required. Besides, shielded cable is recommended where electrical noise might interfere with data transmission. If the shielded wire is used, it must be used through the entire length of the circuit. Furthermore, distance limits are determine using the maximum allowable circuit resistance and capacitance, and manufacturer’s cable specifications.

Compatible Accessories:

• CB500 Module Barrier
• SMB500 Surface Mount Electrical Box

Features / Specifications

• Normal Operating Voltage: 15 to 32 VDC
• Maximum Current Draw: 6.5mA (LED on)
• Average Operating Current: 300 µA, 1 communication every 5 seconds
• Temperature Range: 32˚F to 120˚F (0˚C to 49˚C)
• Humidity: 10% to 93% Non-condensing
• Dimensions: 4.675˝ H x 4.275˝ W x 1.4˝ D (Mounts to a 4˝ square by 21/8˝ deep box.)
• Addressable Analog Circuit
