Description

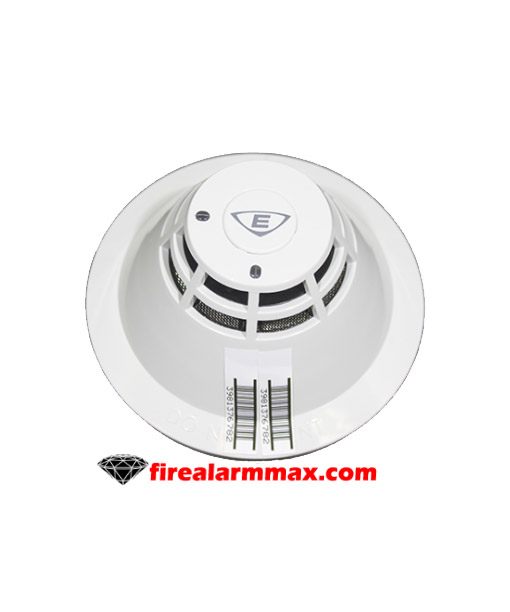

The Edwards Est SIGA-PHS Intelligent Smoke Detector can give and initiate a smoke detector.  Not only does this detector offer smoke detection, but it also offers heat detection as well. The Signature Series Data Entry Program also uses the mapping feature. With interactive menus and graphic support. Also, the Edwards Est SIGA-PHS intelligent detector constantly runs self-checks to provide important maintenance information. The self-check results are automatically updated and permanently stored in the detector’s non-volatile memory. Besides, this information is accessible for reviewing any time at the control panel, PC, or using the SIGA-PRO Signature Program/Service Tool.

The Signature Series Data Entry Program also uses the mapping feature. With interactive menus and graphic support, the wired circuits between each device can be examined. Layout or “as-built” drawing information showing wire branches. Furthermore, the detector automatically identifies when it is dirty or defective and causes a “dirty detector” message. Also, the detector’s sensitivity measurement can be transmitted to the loop controller.

Features / Specifications

• 135°F Fixed Temp
• Twenty pre-alarm sensitivity values, set in 5% increments
• Sensor Range: 0.67 – 3.77% /FT
• Non-volatile memory
• Electronic addressing
• Integral microprocessor – intelligent detector

Compatible Bases:

• SIGA-SB as well as SIGA-SB4
• SIGA-RB
• SIGA-IB
• SIGA-AB4

Download the Specification sheet in *.pdf format
