Description

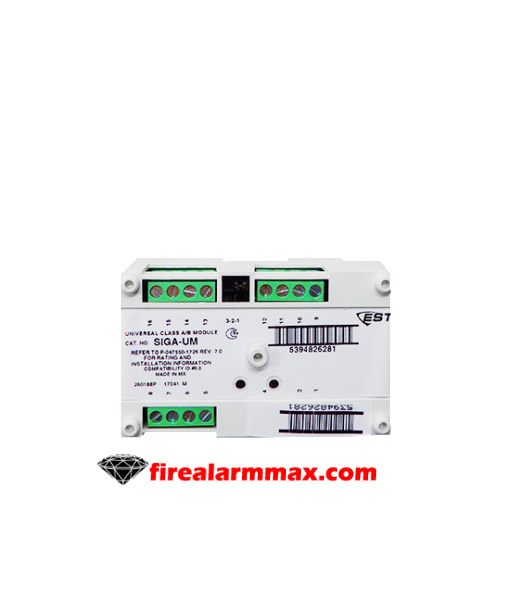

The Edwards Est SIGA-UM is Universal Class A/B Modules. Edwards Est SIGA-UM is an intelligent analog Addressable device that is part of GE Security’s Signature Series system. Also, the actual function of the module is determined by the “personality code” selected by the installer. This is download to the module from the Signature loop controller during system configuration. Besides, the SIGA-UM and SIGA-MAB gather analog information from the slave devices connected to them and convert this into digital signals. Each module’s onboard microprocessor measures and analyzes the signal and decides whether or not to input an alarm.

The SIGA-UM is installed to a standard North American 2-gang electrical box, making it ideal for locations where only one module is required. Separate I/O and data loop connections come made to each module.

SIGA-UM may be use to connect any one of the following:

• two Class B or one Class A Initiating Device Circuits
• one Class A or B Notification Appliance Circuit
• one Class A or B Circuit for 2-wire Smoke Detectors
• one Form “C” (NO/NC) Dry Output Contact Relay

Features / Specifications

• 15 modules in one
• Plugin (UIO) or standard 2-gang mount
• Automatic device mapping
• Electronic addressing
• Operating Voltage: 15.2 to 19.95 Vdc (19 Vdc nominal)
• Operating Temperature: 32°F to 120°F (0°C to 49°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C) Humidity: 0 to 93% RH
