Description

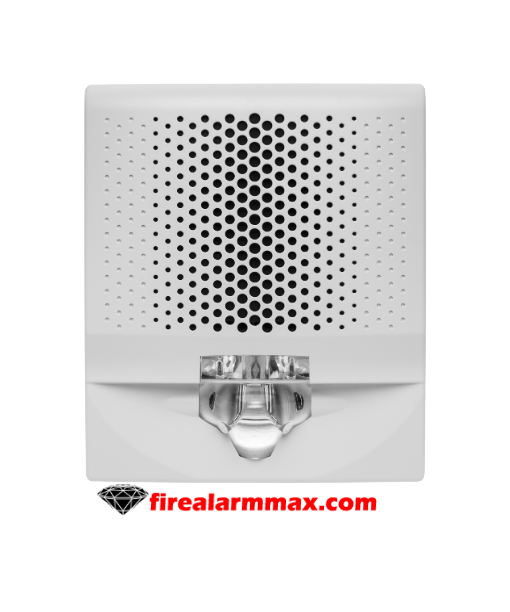

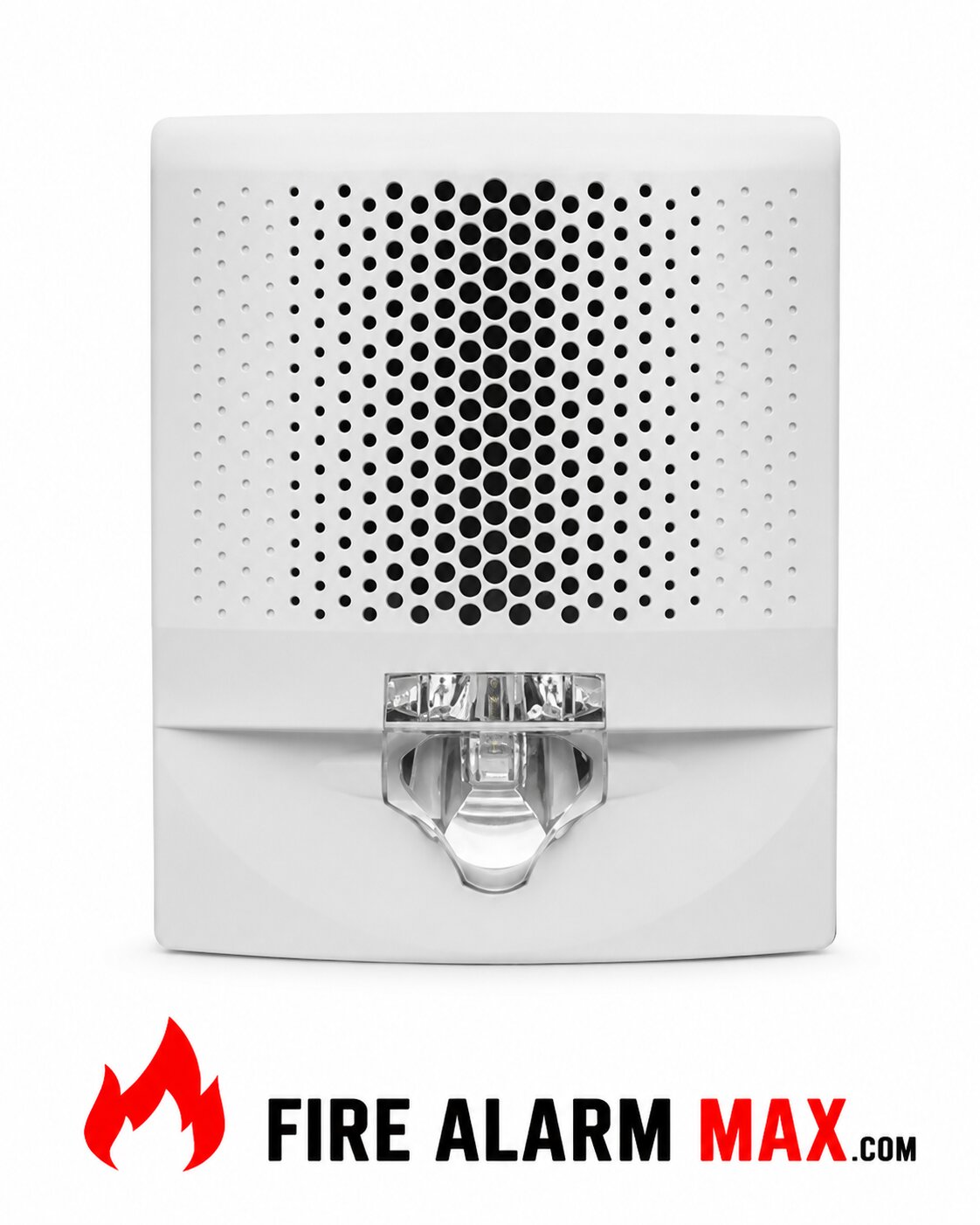

Edwards G4SWN Genesis LED G4S Series speakers and speaker strobes. Combine high-performance output with a sleek low-profile design and energy-efficient technology. That makes them less expensive to install and operate. High-performance LEDs require fewer power supplies, backup power, and batteries. These new appliances ar e designed with energy efficiency, and life safety in mind.

Speakers feature selectable wattage taps. W hile speaker strobes allow wattage and light output levels to b e configured in the field.

Speakers ar e capable, of 25V and 70V and voltage in a single model with a field-selectable switch. All this flexibility allows devices to b e easily fine-tuned to exactly, how they’r e needed to perform. All Genesis speakers include a DC-blocking capacitor to allow electrical supervision of the audio distribution circuit.

Genesis LED G4S Series uses high-efficiency optics combined with patented electronics. To deliver a highly controlled and efficiently focused light distribution pattern in exchange for lower current requirements. Strobes feature field-selectable 15, 30,75, or 110 cd light output.

Field-configurable sound output levels provide the flexibility modern life safety projects demand. W hile the Genesis LED control protocol keeps multiple strobes on compatible NAC circuits. Synchronized to well within NFPA 72 requirements.
They meet NFPA and UL 520Hz requirements for sleeping areas making them ideal for new construction or retrofits.
