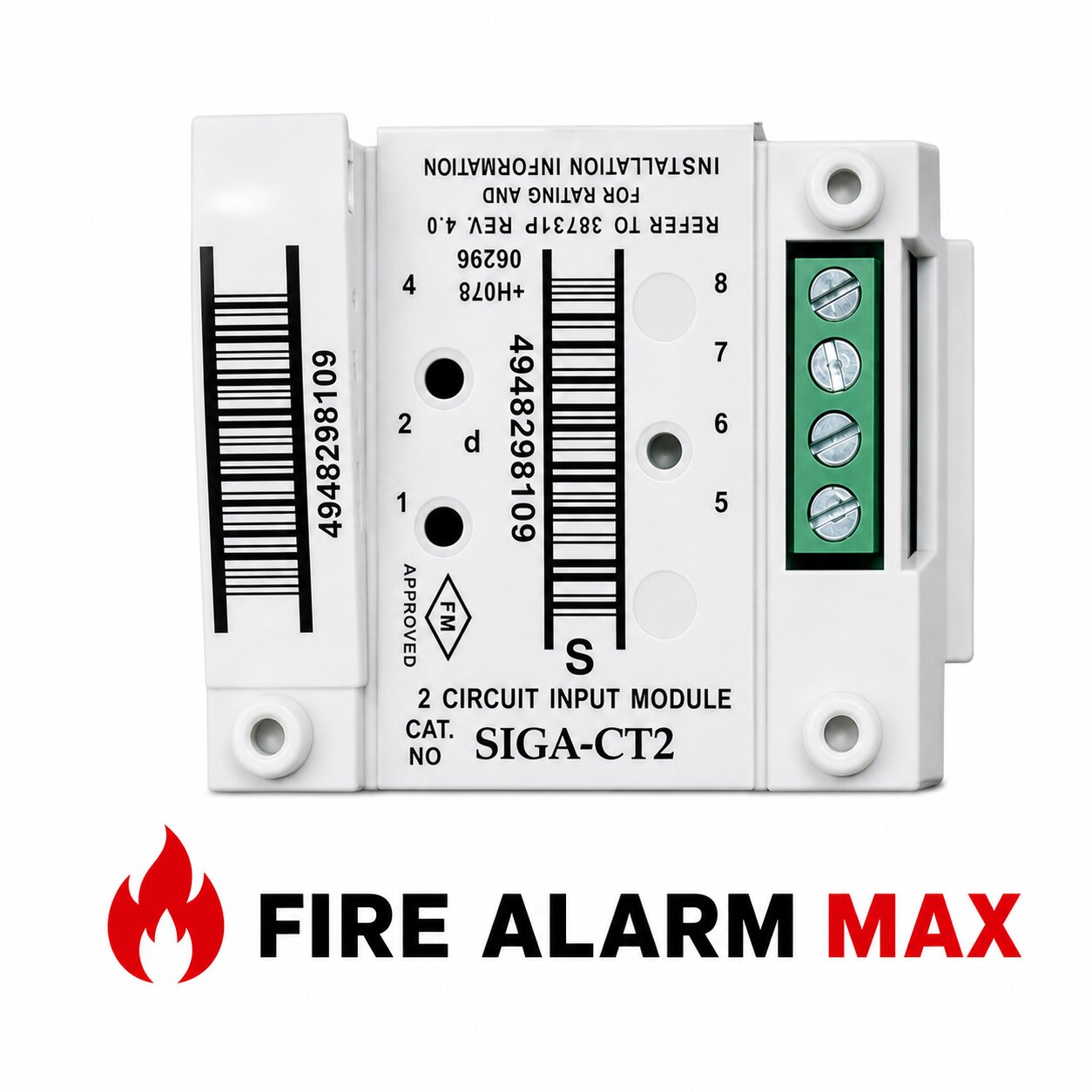

The Edwards SIGA-CT2 Dual Input Module is an intelligent addressable interface designed for compatible Edwards Signature fire alarm systems. It provides two independent Class B input circuits for connecting normally open alarm, supervisory, or monitor-type dry-contact initiating devices.
The SIGA-CT2 uses Edwards Signature intelligent communication, electronic addressing, and selectable Personality Codes. Each of its two inputs can be individually identified and programmed by the compatible fire alarm control system.
The SIGA-CT2 provides two independently monitored circuits:
Input 1
Input 2
Each input can supervise a separate normally open dry-contact circuit and communicate its condition to the compatible Edwards fire alarm control panel.
This allows two conventional initiating or supervisory circuits to be interfaced through a single module.
Both SIGA-CT2 inputs operate as:
Class B Initiating Device Circuits
Each circuit is supervised using a:
47 kΩ End-of-Line Resistor
Published specifications allow a maximum circuit distance of approximately:
4,000 ft / 1,219 m
subject to the specified wire resistance and capacitance limitations.
The SIGA-CT2 does not support two-wire smoke detectors.
The SIGA-CT2 is designed for normally open dry-contact devices.
Typical applications can include:
The programmed Personality Code determines how the fire alarm system responds to the monitored circuit.
The SIGA-CT2 supports four primary operating personalities:
Personality 1 — Alarm, Latching
Used for normally open alarm devices.
Personality 2 — Alarm, Delayed Latching
Provides an approximately 16-second delay and is commonly used for waterflow switches.
Personality 3 — Active, Non-Latching
Used for monitor and equipment-status applications.
Personality 4 — Active, Latching
Used for supervisory and tamper-switch applications.
The SIGA-CT2 requires:
Two Signature module addresses
This allows the compatible fire alarm control system to individually identify and process the two monitored input circuits.
The SIGA-CT1, by comparison, provides a single input and uses only one module address.
The SIGA-CT2 uses electronic addressing rather than mechanical DIP or rotary switches.
The Signature system identifies the module through its electronic serial number and assigns its address through compatible system programming.
This eliminates mechanical address switches and supports Edwards Automatic Device Mapping.
The SIGA-CT2 supports Automatic Device Mapping.
This allows compatible Edwards Signature systems to identify the module’s physical relationship to other devices on the signaling circuit, assisting with commissioning, troubleshooting, and system servicing.
The SIGA-CT2 incorporates onboard status LEDs.
Green LED: Flashes when the module is polled
Red LED: Flashes when the module is in an alarm or active condition
These indicators provide local confirmation of communication and monitored input activity.
Model: SIGA-CT2
Device Type: Intelligent Dual Input Module
Inputs: Two
Input Circuit: Class B
Contact Type: Normally Open Dry Contact
Addresses Required: Two
Type Code: 49
Operating Voltage: 15.2–19.95 VDC
Nominal Voltage: 19 VDC
Standby Current: 396 µA
Activated Current: 680 µA
EOL Resistor: 47 kΩ per circuit
Maximum Circuit Resistance: 50 Ω
Maximum Circuit Capacitance: 0.1 µF
Status Indicators: Green / Red LEDs
Communication: Edwards Signature
Compatibility: Signature Loop Controller
| Weight | 1 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Brand |
