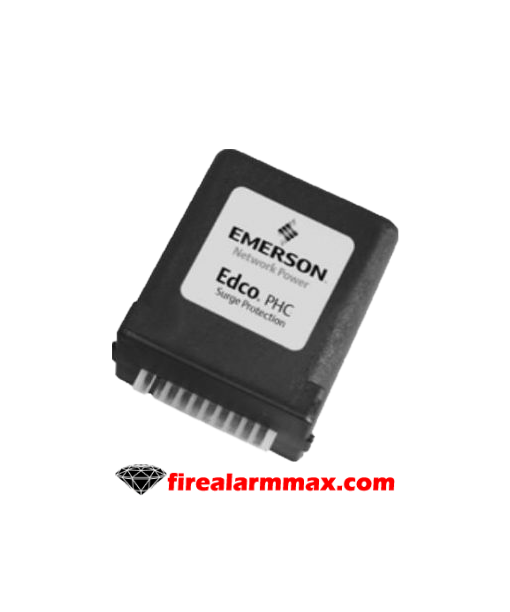

The Emerson PHC-043 is designed to protect two pairs of wires specifically for alarm and security systems where operating currents can be as high as 5 Amps. Electrically, the Edco PHC Series is a rugged series hybrid implementing a staged complement of MOVs, copper wound inductors and Silicon Avalanche Diodes. This design reduces series resistance to 0.2 ohms per pair. These products are intend to mate with an Edco PCB1B-WKEY gold-plated female terminal connector.
The Emerson PHC-043 plugs into a base assembly (Edco PCB1B-WKEY). The base assembly can be mount to any flat surface and should be located as close as practical to the protected equipment. Terminal 1 and/or terminal 10 should be connect to Building-Approved Ground with 12 or 10 gauge solid wire.
Features / Specifications
| Weight | 1 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
Your Payment information is processed securely. We do not store credit card details, nor have access to your credit card information.
Orders ship same day
Thousands of parts in stock
Reliable products & service
Order anytime, anywhere
The Emerson PHC-043 is designed to protect two pairs of wires specifically for alarm and security systems where operating currents can be as high as 5 Amps. Electrically, the Edco PHC Series is a rugged series hybrid implementing a staged complement of MOVs, copper wound inductors and Silicon Avalanche Diodes. This design reduces series resistance to 0.2 ohms per pair. These products are intend to mate with an Edco PCB1B-WKEY gold-plated female terminal connector.
The Emerson PHC-043 plugs into a base assembly (Edco PCB1B-WKEY). The base assembly can be mount to any flat surface and should be located as close as practical to the protected equipment. Terminal 1 and/or terminal 10 should be connect to Building-Approved Ground with 12 or 10 gauge solid wire.
Features / Specifications
| Weight | 1 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
