Description

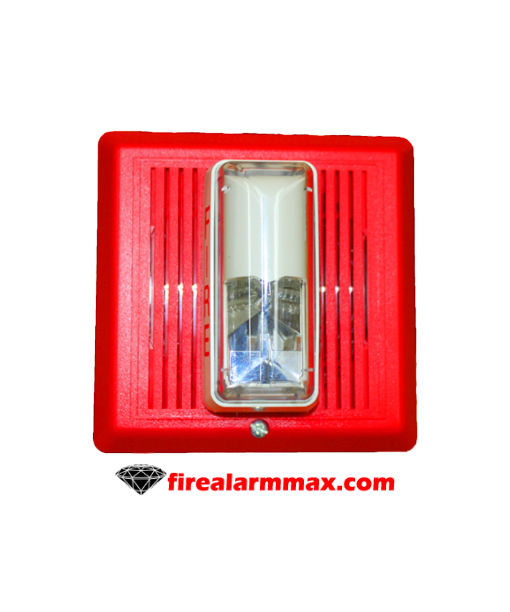

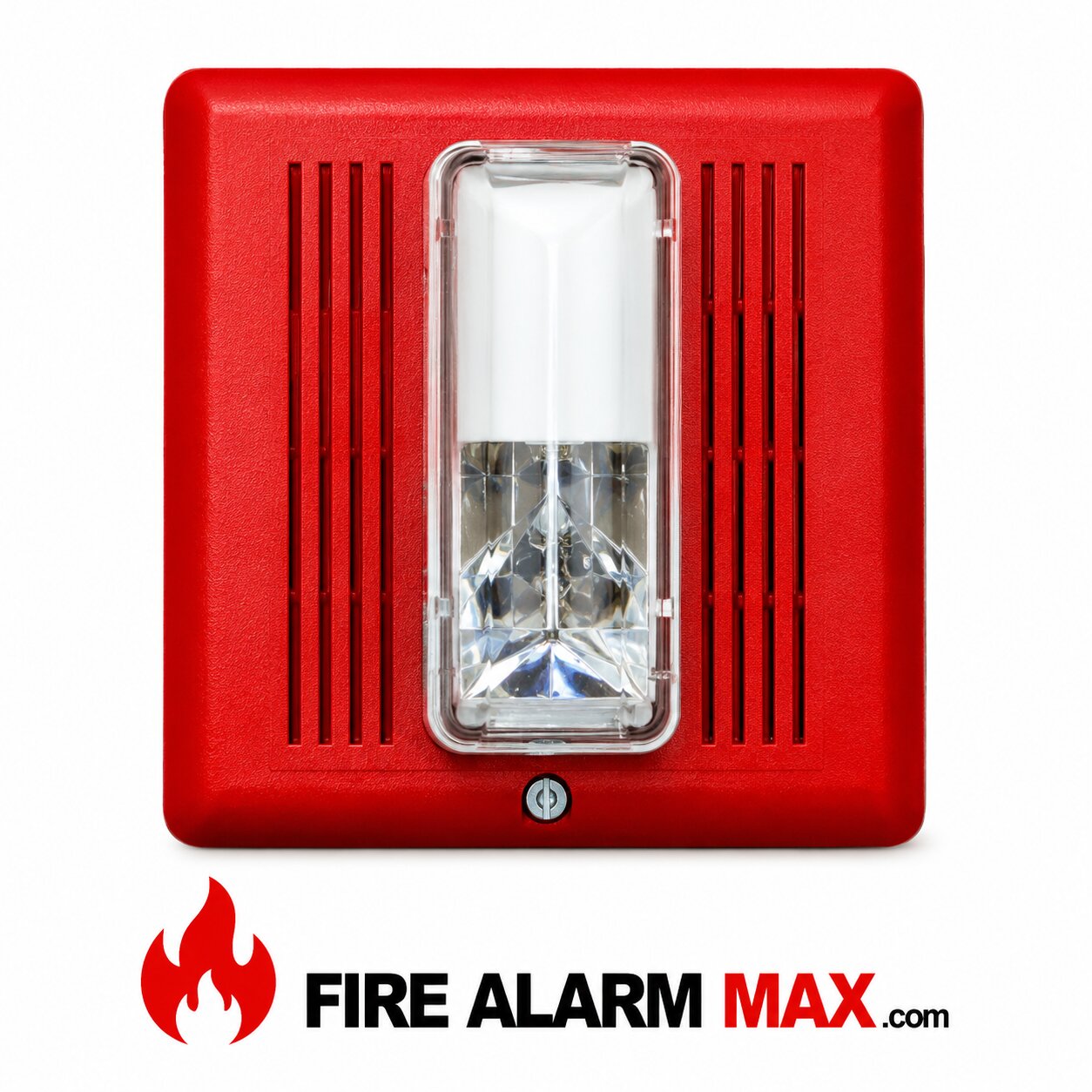

Est Edwards 757S2-75PS speaker-strobes are designed for broadcasting high-quality, integrated, emergency voice communications, as well as alert and alarm tone signals. Use them in life safety applications, especially to notify the hearing impaired and where transitory people are expect such as in hotels, malls, airports, hospitals, and other public buildings.

Integrity’s rugged plastic housing is make from durable as well as fire retardant, high-impact plastic with a slightly textured surface. Housings are available in red or white. Also, integrity’s ingenious mounting plate firmly holds the device in place with a single screw. Besides, this ensures quick and attractive installation. Terminals accept up to #12 AWG (2.5mm²) wire for polarized connections.

Synchronization is important because a small portion of the population has a condition that may cause them to become disoriented from multiple random flashes of light. PowerSaver strobes minimize this risk. Furthermore, Est Edwards 757S2-75PS is designed for 20 to 31 Vdc operation and must be connect to signal circuits that output a constant (not pulsed) voltage. A diode is use to allow full signal circuit supervision.

Features / Specifications

• Exclusive Low Current Draw Technology – 15 cd at 49 mA
• UL 1971-listed synchronizing strobe
• Genesis-compatible
• Approved for public and private mode applications
• High dBA Output
• Multiple Output Taps, 25 or 70 Volt Models
• Durable Noryl front plate
• Field changeable field markings
• Easy Installation
