Description

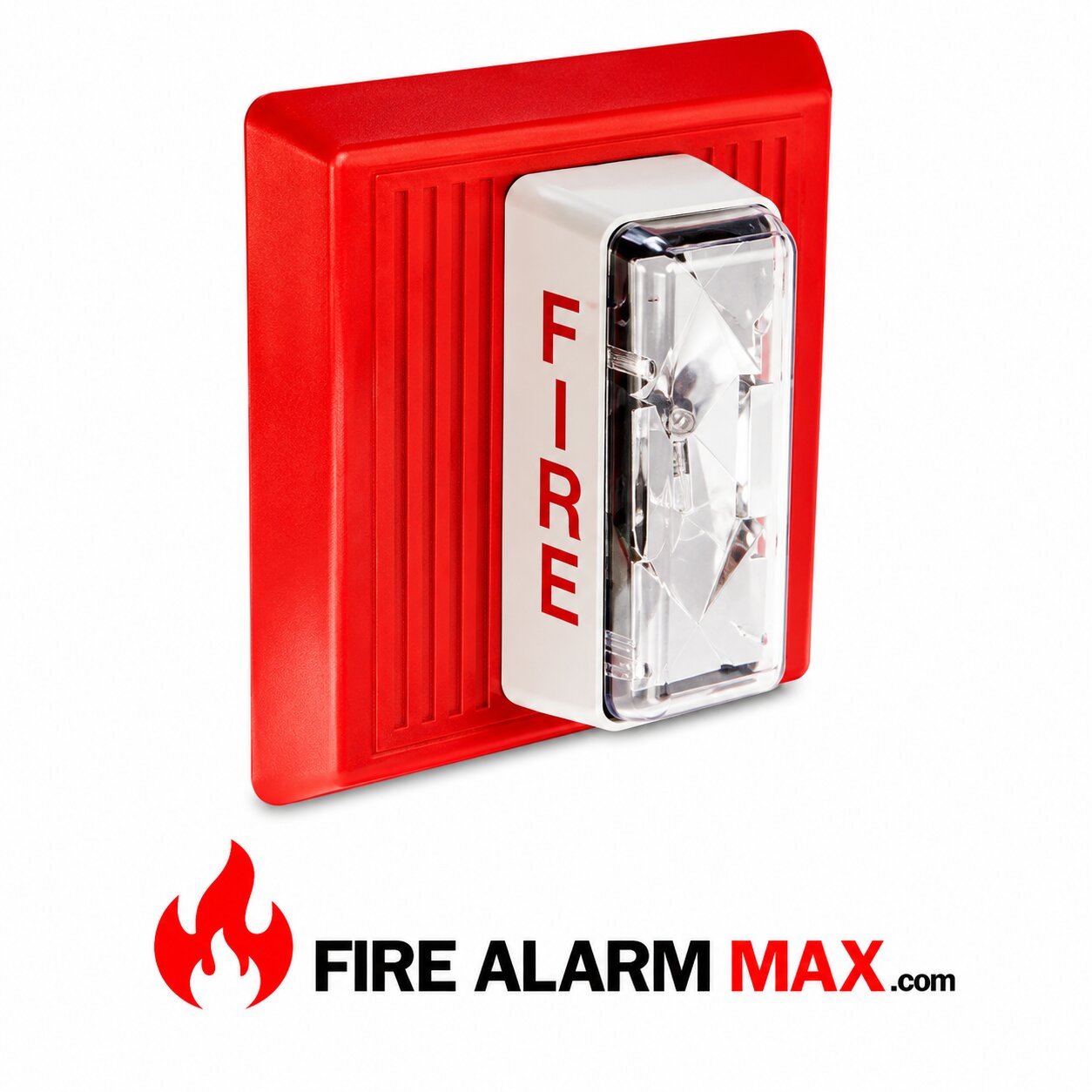

Est Edwards 757-5A-SS70 Speaker-Strobes is designed for broadcasting high quality, integrated, emergency voice communications, as well as alert and alarm tone signals. Use them in life safety applications, especially to notify the hearing impair and where transitory people are expect such as in hotels, malls, airports, hospitals and other public buildings.

In fact, these Est Edwards 757-5A-SS70 speakers come shipped complete with a ‘DC Blocking Capacitor’ to permit electrical supervision of the audio distribution circuit. Also, models for 25 Vrms and 70 Vrms circuits are available. The mylar speaker with sealed back construction provides extra durability as well as improved audibility. Besides, wattage taps from 1/4W to 2W provide maximum on-site flexibility.

Integrity’s rugged plastic housing is available with a red or white textured finish. With its ingenious mounting sub-plate, Integrity is firmly held in place with a single screw ensuring a quick, attractive installation. A separate trim plate is not require for flush mounting.

The flash from EDWARDS strobes will be notice from almost any position in the room, corridor, or large open space. EDWARDS strobes are UL1971 list with both wall and ceiling cd intensity ratings (see Specifications). This is useful in areas where the Authority Having Jurisdiction (AHJ) permits ceiling mount strobes.

Features / Specifications

• UL 1971-listed synchronizing strobe
• Genesis-compatible
• Approved for public and private mode applications
• High dBA Output
• Multiple Output Taps, 25 or 70 Volt Models
• Field changeable field markings
• Easy Installation
