Description

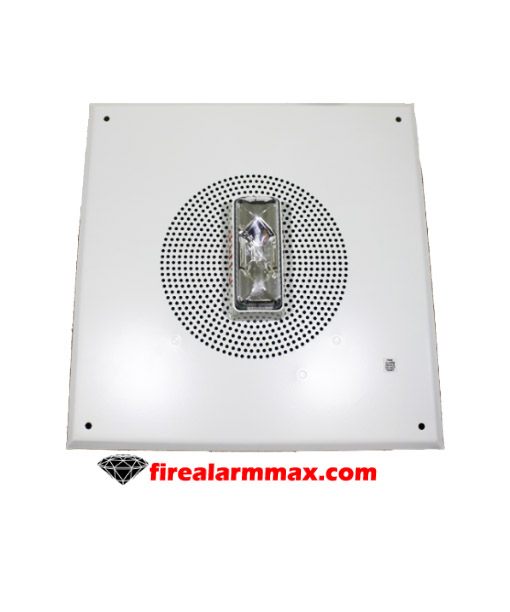

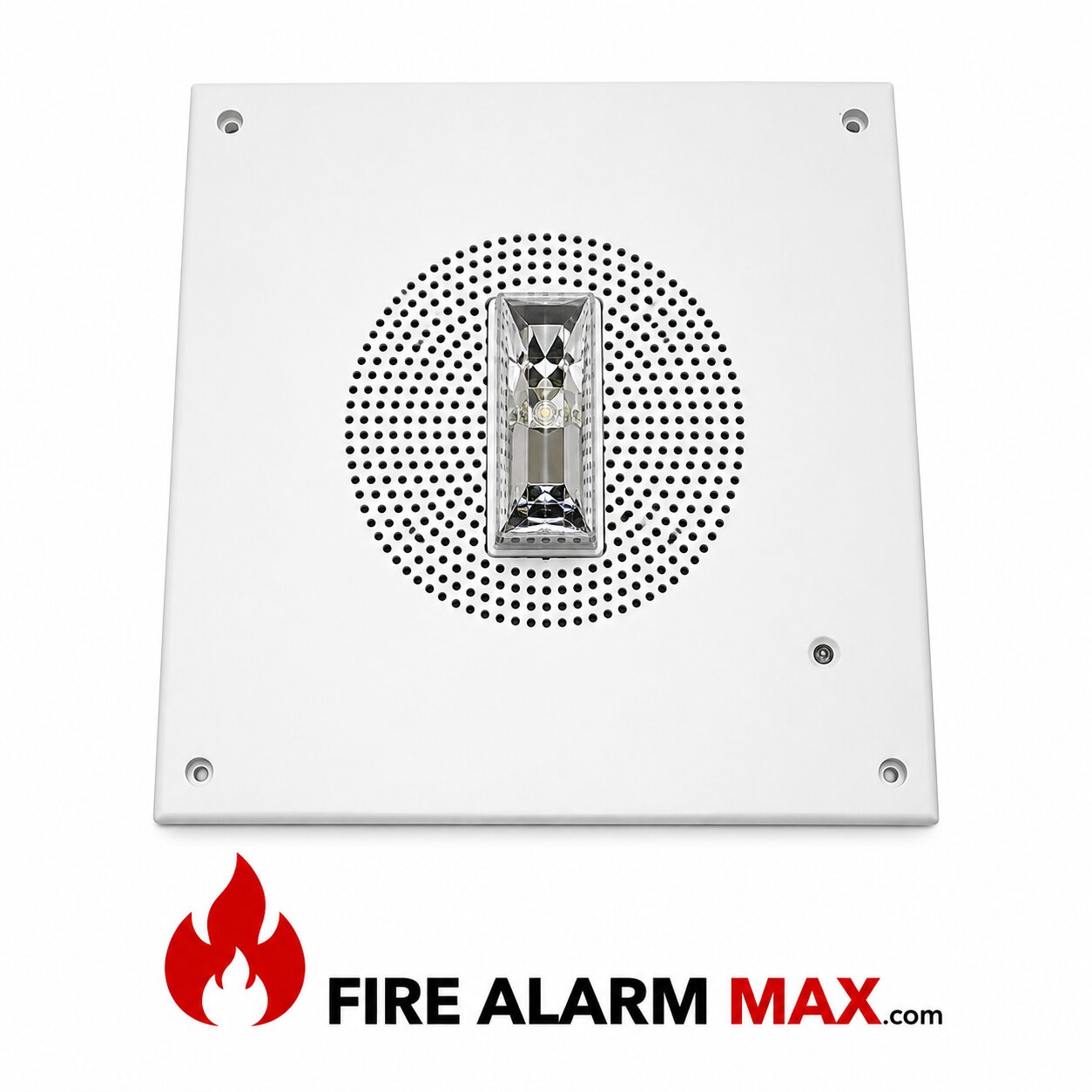

Est Edwards 965-8A-8SW Speaker-Strobes is designed for broadcasting high-quality, integrated, emergency voice communications, alert as well as alarm tone signals. Use them in life safety applications, especially to notify the hearing impaired, where transitory people are expect such as hotels, malls, airports, hospitals, and other public buildings.

Speakers come shipped complete with a ‘DC Blocking Capacitor’ to permit electrical supervision of the audio distribution circuit. Use the 964 series for 25 Vrms circuits; the 965 series for 70 Vrms circuits. Besides, the large eight-inch speaker cone offers a wide frequency response to improve audibility and intelligibility. In addition, wattage taps from ½ to 4 watts provide on-site flexibility where higher or lower dB output is desire. Wattage tap selection is easy; just move the slide-on connector on the speaker’s terminal block.

The 12½ inch (318 mm) diameter steel baffle is finish with an attractive yet durable, high quality, baked white epoxy-polyester powder coat. Also, the speakers flush mount to EDWARDS’s custom 960A-8SF box. The flush box comes made from satin-coat steel as well as has flexible mounting straps for easy installation with poured concrete forms.

In general, the flash from Est Edwards 965-8A-8SW strobes will be notice from almost any position in the room, corridor, or large open space. The output is controlled using a specially shaped reflector to ensure precise dispersion of the light in all viewing directions. EDWARDS strobes are UL1971 list with both wall and ceiling cd intensity ratings. This is useful in areas where the Authority Having Jurisdiction (AHJ) permits ceiling mount strobes.

Features / Specifications

• High fidelity
• 25 and 70 volt RMS models
• Screw terminal wire connection
• UL 1971-listed synchronizing strobe
• Genesis-compatible
• Approved for public and private mode applications
• Field changeable field markings
