Description

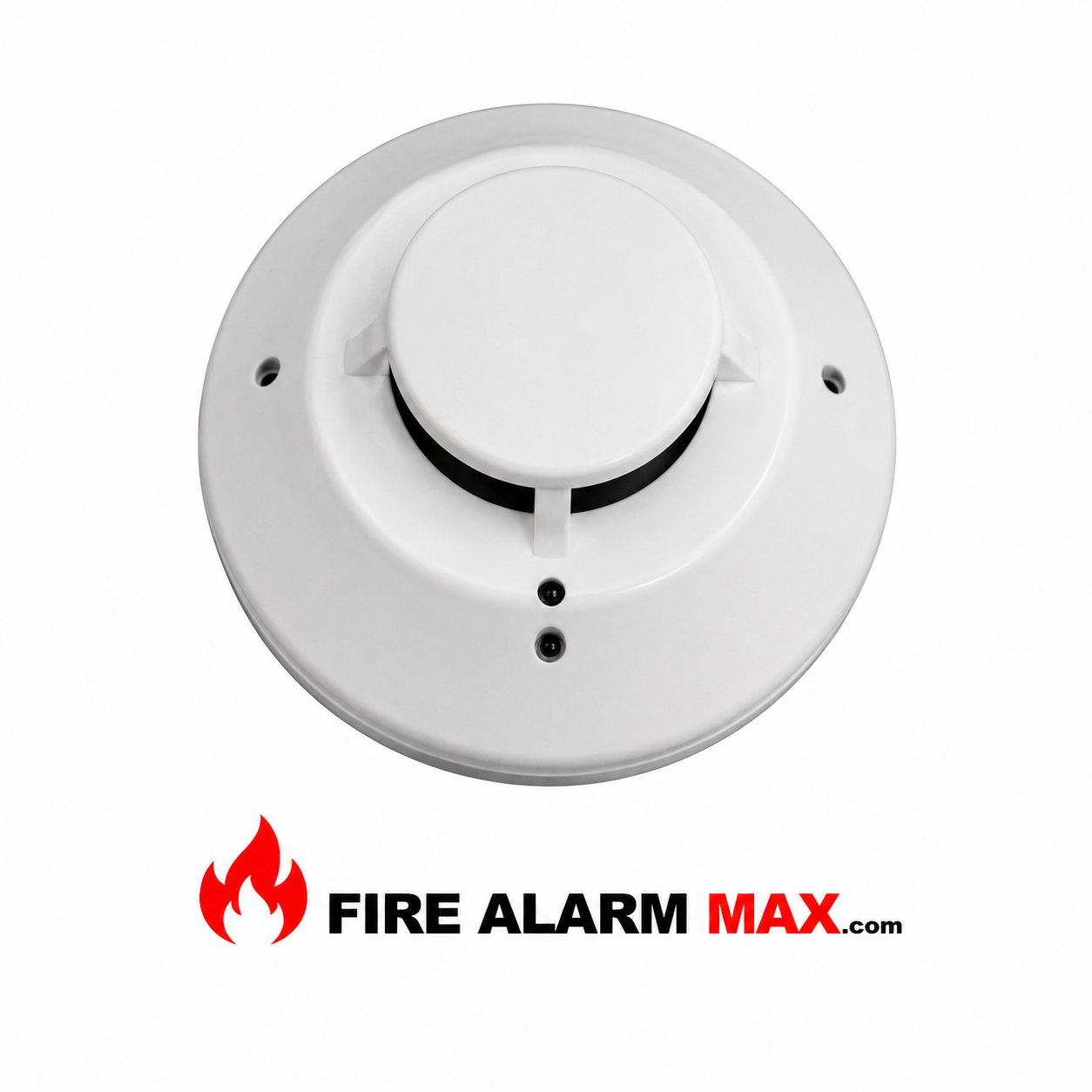

The Fike 67-033 an Intelligent Ionization, spot-type smoke detector utilizes a state-of-the-art sensing chamber designed to respond rapidly to a broad range of fires. Also, the sensing chamber employs features that minimize the effect of settled dust on performance. Additionally, the detector designed with tri-color LEDs to indicate detector status. Furthermore, a remote LED annunciator, P/N 02-3868, is available as an accessory. The isolator version, P/N 67-034, provides complete short circuit isolation for NFPA 72, Class X wiring if used with an isolator base.

The Fike 67-033 detector is compatible with Fike’s CyberCat® and Cheetah® Xi intelligent control panels. Furthermore, its operating parameters configured using the panel’s programming software stored within non-volatile RAM in the detector. Also, this on-board intelligence allows each detector to communicate its status directly to other devices connected to the panel. This peer-to-peer digital protocol results less information that needs to be sent between the detector as well as the host control panel, resulting in faster, more reliable communication.

Features / Specifications

• Voltage Range: 15 to 30 VDC
• Standby Current: 481µA @ 24 VDC
• Humidity Range: 10% to 93%
• Operating Temperature Range: 0 to 49°C
• Alarm Current (LED on): 2 mA @ 24 VDC
• Velocity Range: 1200 FPM
