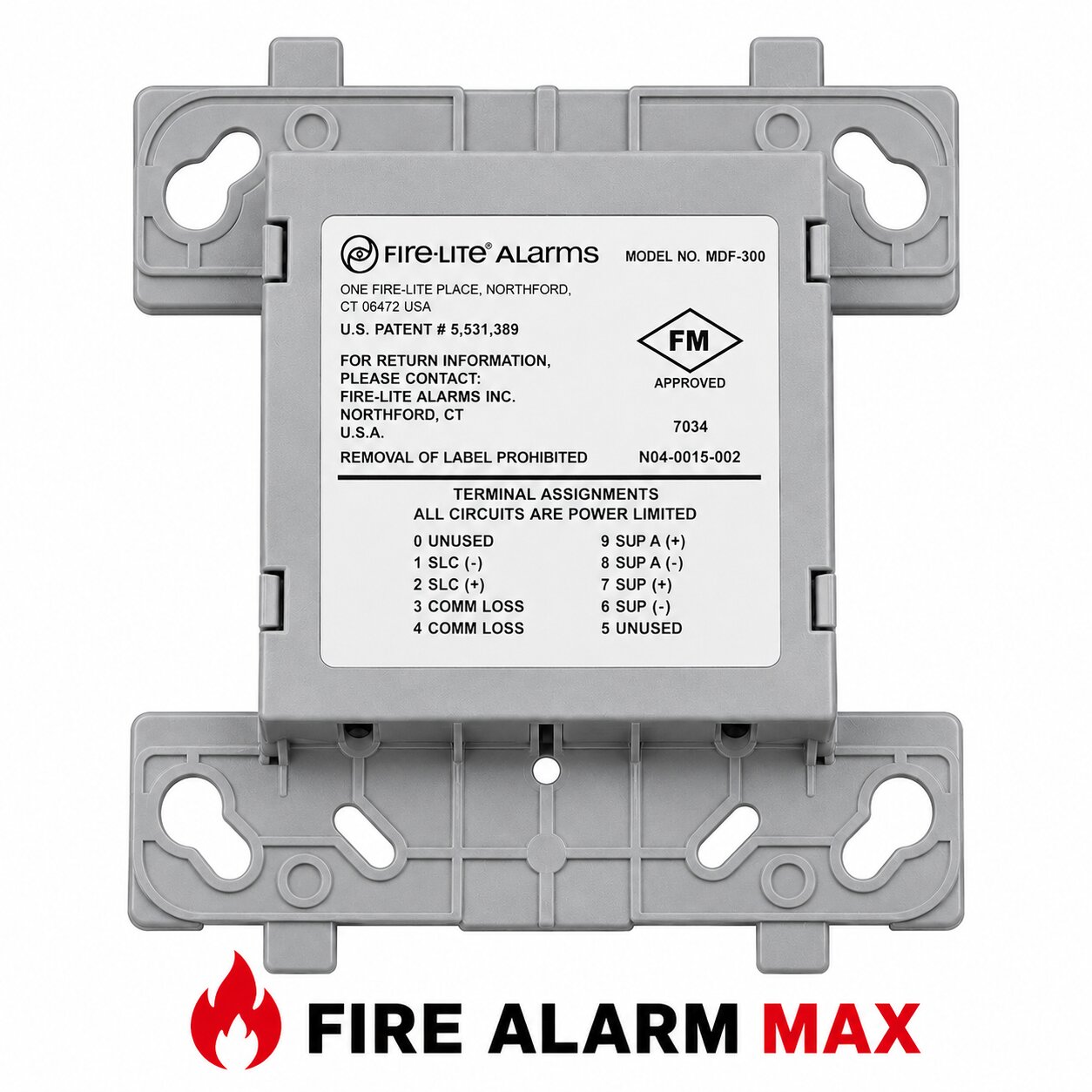

The Fire-Lite MDF-300 Dual Monitor Module is an intelligent addressable interface module designed for compatible Fire-Lite fire alarm control panels. It provides two independently monitored initiating device circuits (IDCs) for connecting conventional normally open contact devices to an addressable signaling line circuit.
The MDF-300 is useful where two conventional initiating or supervisory circuits are located near each other, reducing the number of individual monitor modules required.
The MDF-300 provides:
Monitor Input 1
Monitor Input 2
Each input functions as an independently supervised Class B initiating device circuit.
This allows two conventional contact devices or circuits to connect to the addressable system through a single module.
The MDF-300 is designed to monitor normally open dry-contact initiating devices.
Typical applications can include:
The fire alarm control panel determines whether each monitored input functions as alarm, supervisory, or another programmed point type.
The MDF-300 communicates with the compatible Fire-Lite control panel through the signaling line circuit.
The module uses rotary decimal switches for address selection, simplifying device addressing and field servicing.
Each monitored input can be individually identified by the control system, allowing separate point descriptions and event reporting.
The MDF-300 supports Fire-Lite’s LiteSpeed protocol on compatible signaling line circuits.
LiteSpeed communication allows rapid polling and identification of intelligent field devices while maintaining individual addressable point reporting.
Exact compatibility depends on the Fire-Lite control panel and system configuration.
Both MDF-300 input circuits operate as:
Class B IDCs
The field wiring is supervised using an end-of-line resistor installed at the end of each monitored circuit.
This allows the module and control panel to distinguish between normal, active, and open-circuit conditions.
The MDF-300 incorporates status LEDs that provide local indication of module communication and monitored circuit activity.
LED behavior is controlled by the compatible Fire-Lite fire alarm system and can provide visual confirmation during commissioning, troubleshooting, and testing.
The MDF-300 receives its operating power directly from the compatible signaling line circuit.
Separate External Power: Not required
This simplifies wiring because the module does not require an additional 24V auxiliary power connection for normal monitoring operation.
Model: MDF-300
Device Type: Intelligent Dual Monitor Module
Inputs: Two
Circuit Type: Class B
Monitored Devices: Normally Open Contacts
Communication: LiteSpeed
Addressing: Rotary Decimal Switches
Operating Voltage: 15–32 VDC
Maximum SLC Current: Approximately 750 µA
External Power: Not Required
Field Wiring: Supervised
Mounting: 4-inch square electrical box
Exact electrical requirements and end-of-line resistance should follow the applicable Fire-Lite technical documentation and control-panel compatibility requirements.
| Weight | 1 lbs |
|---|---|
| Dimensions | 7 × 7 × 6 in |
| Brand |
