Description

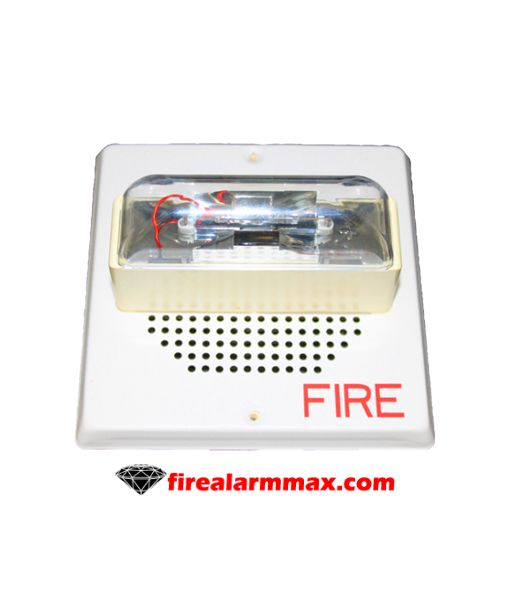

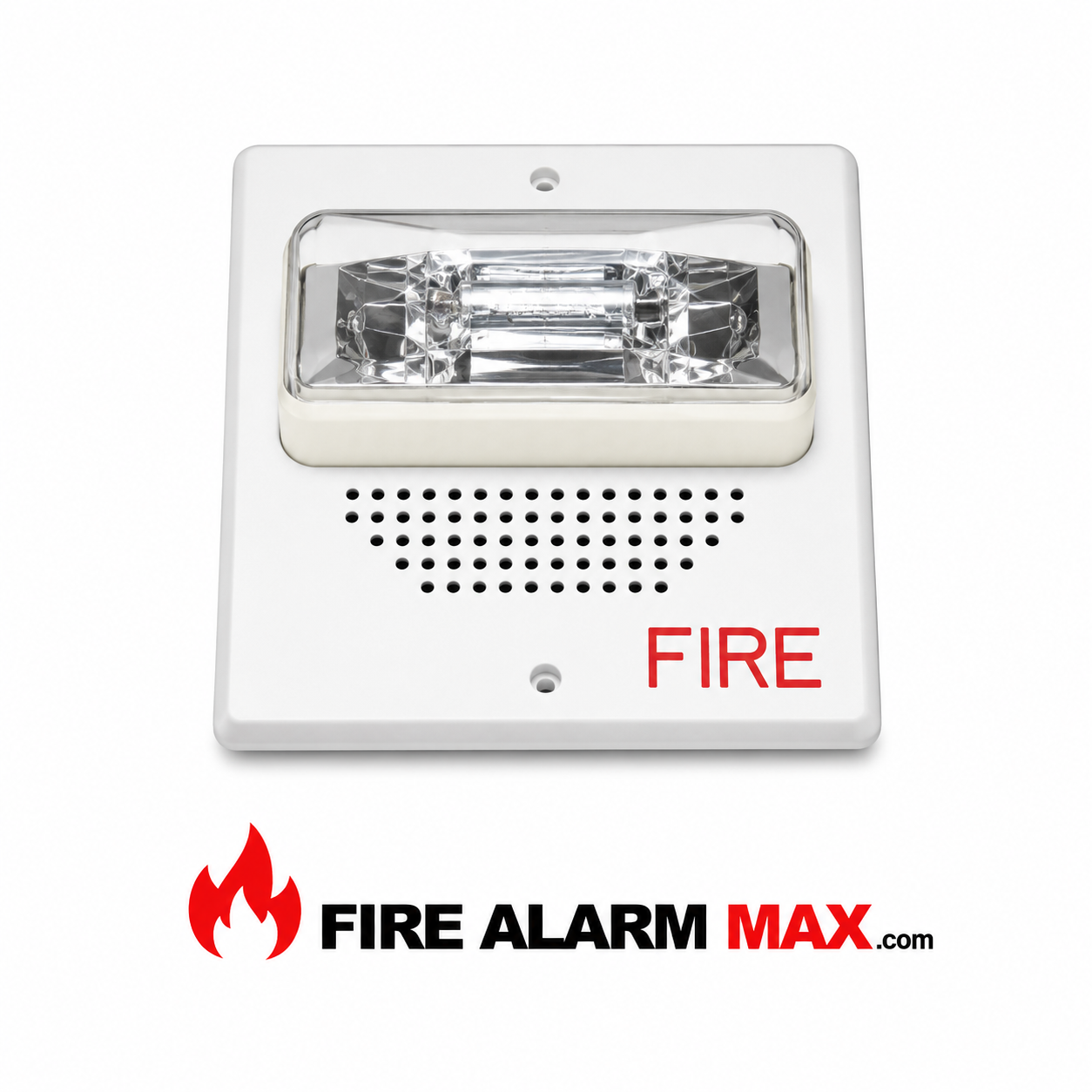

Firecom FE70-24MCW-FW

The Wheelock E70 wall and E90 ceiling speakers. Speaker strobes a re designed for high-efficiency sound output for indoor applications.
The E product line features intelligible communications with crisp. Clear voice messages and tone signaling, ideal for mass notification, and voice evacuation.
Providing a sleek aesthetic appearance, the Wheelock Series E speaker strobes feature dual voltage (25/70 VRMS) capability. And field selectable taps from 1/8 to 2 watts. The low-profile design incorporates a speaker mounting plate for faster and easier installation. Each model has a built-in level adjustment feature and an aesthetic two-screw grille cover.
For visible signaling to meet the hearing impaired, the E-speaker Strobe models incorporate the Low Current draw RSS Strobes.
Strobe options for wall mount models include the 1575. Or Wheelock patented MCW multi-candela strobe with field selectable candela settings.
Ceiling mount models ar e available in Wheelock patented MCC multi-candela ceiling strobe.
The strobe portion of all E speaker strobes may b e synchronized. Wh en used in conjunction with the Wheelock DSM Sync Modules, Wheelock Power Supplies. Or other manufacturers’ panels incorporating the Wheelock Patented Sync Protocol. Wheelock synchronized strobes offer an easy way to comply. With ADA recommendations concerning photosensitive epilepsy
The E speakers a re UL listed under 1480 (Speaker Appliances). And ULC listed under CAN/ULC-S541 (Speakers, Fire Alarm). The E speaker strobes ar e UL listed for indoor use under Standard 1971, Standard 1638, and Standard 1480. And ULC i s listed under CAN/ULC-S526 and under CAN/ULC-S541. The strobes shall b e certified to meet the requirements of FCC Part 15, Class A. All inputs employ IN/OUT wiring terminals for fast installation using #12 to #18 AWG wiring.
