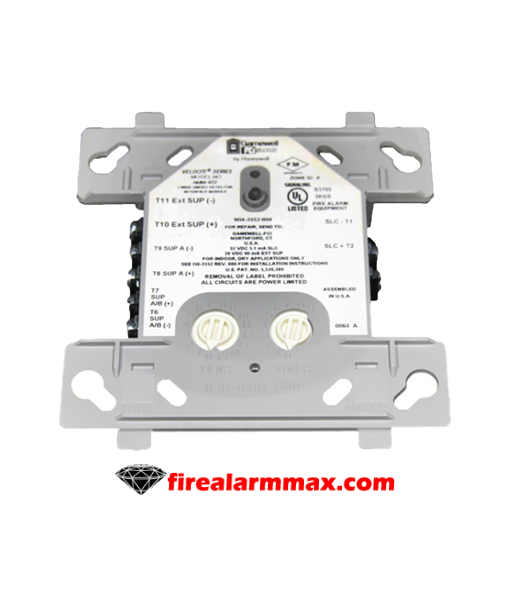

The Gamewell FCI AMM-4SF addressable monitor module features a single Style D, Class A initiating device circuit. It may also be configure as a Style B, Class B initiating circuit with an end-of-line resistor. Also, this module provides an address for a group of conventional 2-wire smoke detectors.
The Velociti® Series uses a communication protocol that substantially increases the speed of communication between the sensors and certain Gamewell-FCI analog addressable fire alarm control panels. Furthermore, these devices operate in a grouped fashion. If one of the devices in the group has a status change, the panel’s microprocessor stops the group poll and concentrates on the single device. The net effect is response speed up to five times greater than earlier designs.
In general, the Gamewell FCI AMM-4SF module is design to be install with the signaling line circuit in any Gamewell-FCI analog addressable fire alarm control panel. Besides, the signaling line circuits of Gamewell-FCI analog addressable panels are designed to accommodate up to 159 monitor modules per circuit.
Features / Specifications
| Weight | 1 lbs |
|---|---|
| Dimensions | 6 × 6 × 6 in |
Your Payment information is processed securely. We do not store credit card details, nor have access to your credit card information.
Orders ship same day
Thousands of parts in stock
Reliable products & service
Order anytime, anywhere
The Gamewell FCI AMM-4SF addressable monitor module features a single Style D, Class A initiating device circuit. It may also be configure as a Style B, Class B initiating circuit with an end-of-line resistor. Also, this module provides an address for a group of conventional 2-wire smoke detectors.
The Velociti® Series uses a communication protocol that substantially increases the speed of communication between the sensors and certain Gamewell-FCI analog addressable fire alarm control panels. Furthermore, these devices operate in a grouped fashion. If one of the devices in the group has a status change, the panel’s microprocessor stops the group poll and concentrates on the single device. The net effect is response speed up to five times greater than earlier designs.
In general, the Gamewell FCI AMM-4SF module is design to be install with the signaling line circuit in any Gamewell-FCI analog addressable fire alarm control panel. Besides, the signaling line circuits of Gamewell-FCI analog addressable panels are designed to accommodate up to 159 monitor modules per circuit.
Features / Specifications
| Weight | 1 lbs |
|---|---|
| Dimensions | 6 × 6 × 6 in |
