Description

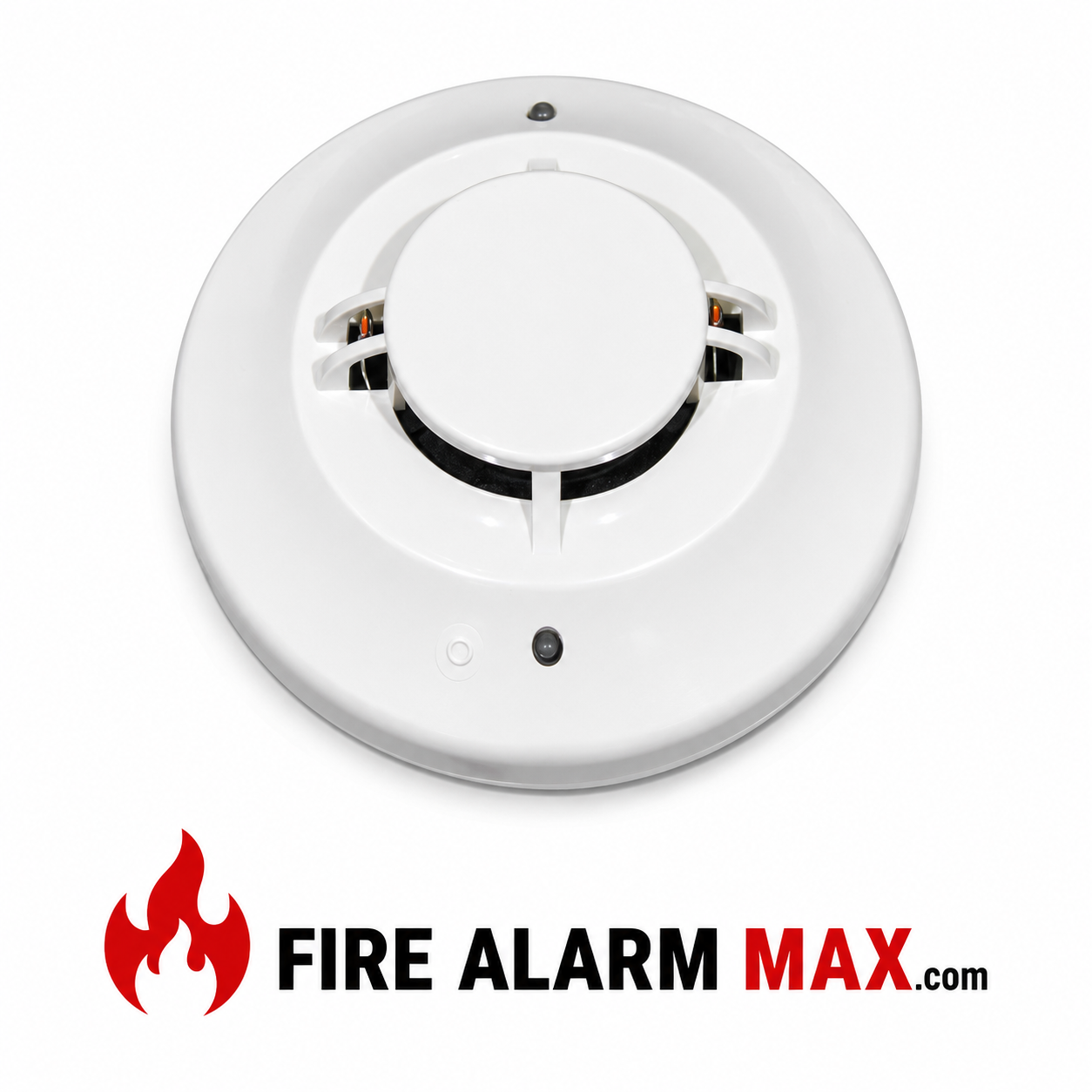

The Gamewell-FCI ASD-PTL2F is a commercial smoke heat detector designed for compatible Gamewell-FCI Velociti® addressable fire alarm systems. It combines smoke detection with an integrated 135°F (57°C) fixed-temperature thermal sensor, providing enhanced fire detection for a wide range of commercial applications.

The detector features programmable sensitivity, rotary decimal addressing, dual-status LEDs, and continuous panel supervision. Its low-profile plug-in design simplifies installation, maintenance, and replacement while providing dependable system performance. This product is intended exclusively for commercial fire alarm installations.

Product Functions

• Detects airborne smoke
• 135°F (57°C) fixed-temperature heat detection
• Reports alarm conditions to the fire alarm control panel
• Continuous sensitivity monitoring
• Automatic maintenance reporting
• Individual device identification
• Magnetic functional testing
• Continuous electronic supervision

Electrical & System Information

The ASD-PTL2F operates on compatible Gamewell-FCI Velociti signaling line circuits using analog addressable communication. Detector sensitivity is programmed through the fire alarm control panel and continuously monitored to provide maintenance alerts when cleaning is required.

Rotary decimal switches provide local device addressing, while the control panel supervises detector communication and operating status. A compatible detector base is required and may be sold separately.

Features

• Commercial smoke and heat detector
• Integrated 135°F fixed-temperature thermal sensor
• Programmable sensitivity
• Rotary decimal addressing (01–159)
• Dual bi-color LED indicators
• Built-in magnetic functional test
• Plug-in detector design
• Low-profile white housing
• Noise-immune communication
• Optional remote LED annunciator support

Mounting & Design

The ASD-PTL2F installs onto compatible Gamewell-FCI detector bases using a plug-in design that allows detector removal for testing, inspection, cleaning, or replacement without disturbing field wiring.

Its compact, low-profile housing blends with commercial interiors while providing easy access for routine maintenance.

Protection & Applications

Suitable for:

• Office Buildings
• Schools
• Hospitals
• Hotels
• Warehouses
• Manufacturing Facilities
• Retail Centers
• Government Buildings
• Commercial Properties

Compatibility

Compatible with:

• Gamewell-FCI Velociti Fire Alarm Control Panels
• Velociti Signaling Line Circuits
• B501 Detector Base
• B224RB Relay Base
• B224BI Isolator Base
• B200S Sounder Base
• RA100Z Remote LED Annunciator

Always verify compatibility with the installed fire alarm control panel, detector base, and system firmware before installation.

Technical Specifications

Manufacturer: Gamewell-FCI

Parent Company: Honeywell

Model: ASD-PTL2F

Product Type: Commercial Smoke Heat Detector

Detection Method: Smoke Detection with Fixed-Temperature Heat Sensing

Heat Sensor Rating: 135°F (57°C)

Operating Voltage: 15–32 VDC

Typical Standby Current: 300 µA @ 24 VDC

Address Range: 01–159

Addressing: Rotary Decimal Switches

Status Indicators: Dual Bi-Color LEDs

Sensitivity: Programmable Through Compatible Control Panel

Testing: Built-In Magnetic Test Switch

Housing Color: White

Mounting: Compatible Plug-In Detector Base Required

Application: Indoor Commercial Fire Alarm Systems

Listings: UL, FM Approved, MEA, and CSFM (application dependent).

Applications

The Gamewell-FCI ASD-PTL2F is designed for commercial fire alarm systems requiring both smoke detection and fixed-temperature heat detection in a single addressable device. Typical applications include offices, healthcare facilities, educational campuses, hotels, warehouses, retail buildings, manufacturing facilities, and other commercial occupancies where enhanced fire detection and continuous system supervision are required.
