Description

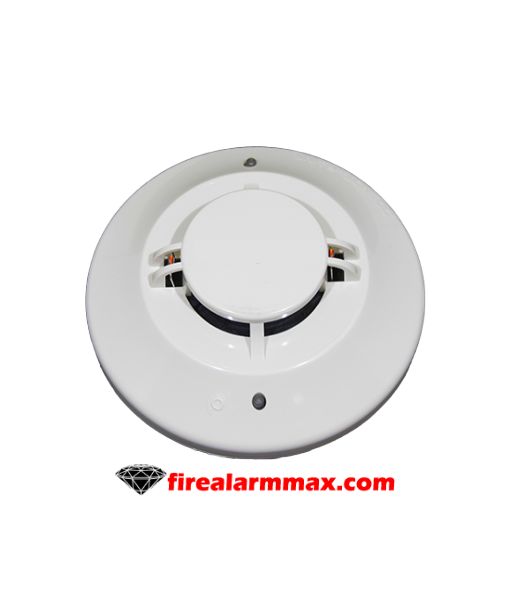

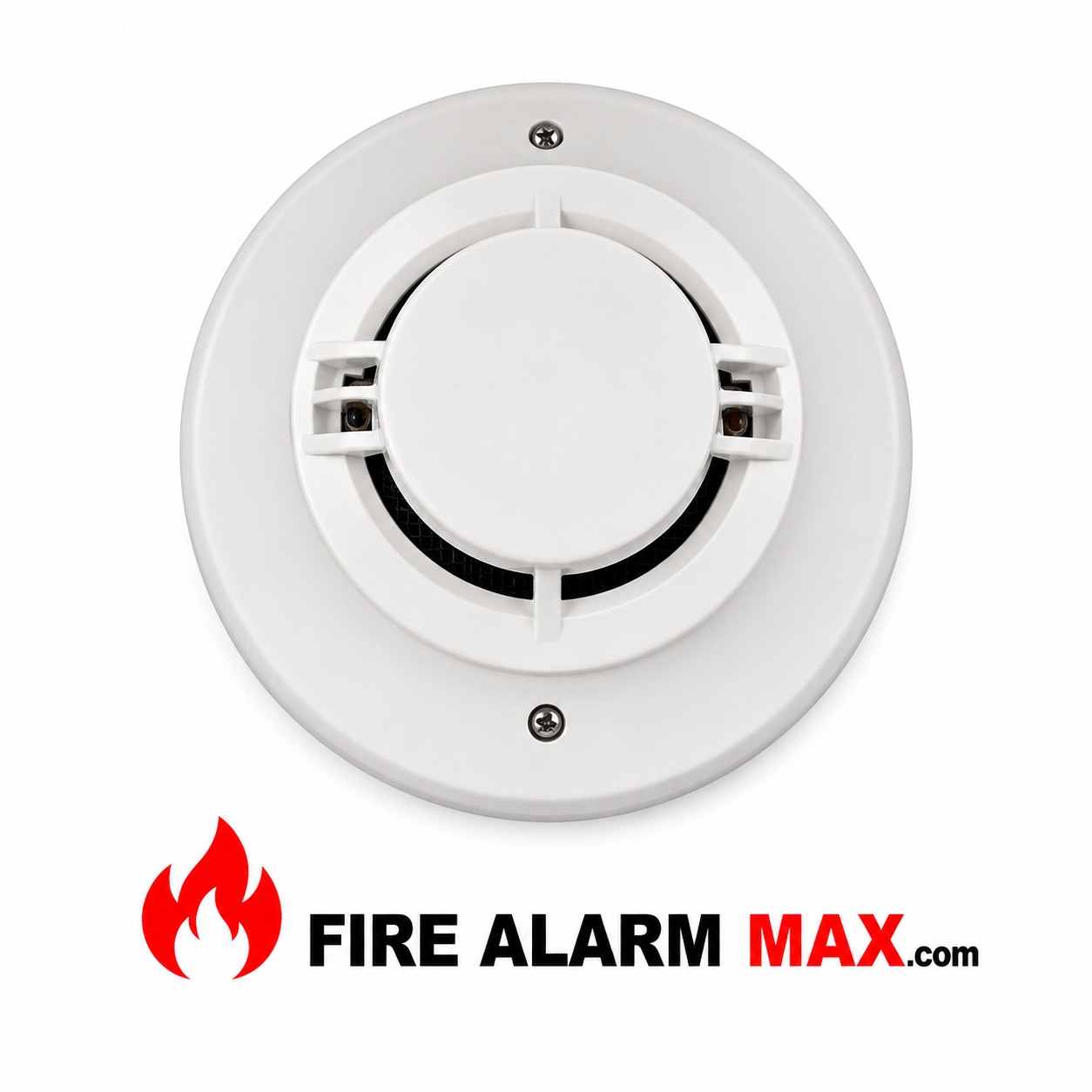

The Gamewell-FCI MCS-ACCLIMATE2F sensor is an analog, addressable, multi-sensing, low-profile sensor designed for use with the Gamewell-FCI analog addressable fire alarm control panels.

The MCS-ACCLIMATE2F sensor uses a combination of photoelectronic as well as thermal sensing technologies that are designed to increase immunity to false alarms. Unlike traditional addressable devices, the MCS-ACCLIMATE2F sensor has a microprocessor in the sensor head that processes alarm data. As a result, the MCSACCLIMATE2F sensor automatically adjusts its sensitivity, without requiring operator intervention.

Areas where the Gamewell FCI MCS-ACCLIMATE2F sensor is especially useful include office complexes, schools, college campuses, manufacturing and industrial facilities, and anywhere else where the use of a particular area may change. One day a conference room, tomorrow a kitchen, the next day a copy machine room — the MCSACCLIMATE2F sensor automatically adjusts its sensitivity to the environment! MCS-ACCLIMATE2F plug-in sensors use a separate base to simplify installation, service, together with maintenance. Also, a special tool allows maintenance personnel to plug-in and remove sensors without using a ladder.

Features / Specifications

• Compatible with the Gamewell-FCI analog addressable panels
• Designed with a sleek, low-profile design
• Suitable for installation in ducts
• Has a visual rotary, decimal switch addressing range of (01-159)
• Built-in functional test switch activated by an external magnet
• Low-temperature signal at 45°F (7.2°C) +/- 10°F (5.5°C)
• Displays bi-color LEDs flash green whenever the sensor is addressed, and light steady red on alarm
• Offers the relay, isolator and sounder base options
• Provides microprocessor-based, combination photo and thermal technology
• Automatically adjusts sensitivity levels without the need for operator intervention or programming sensitivity increases with heat
