Description

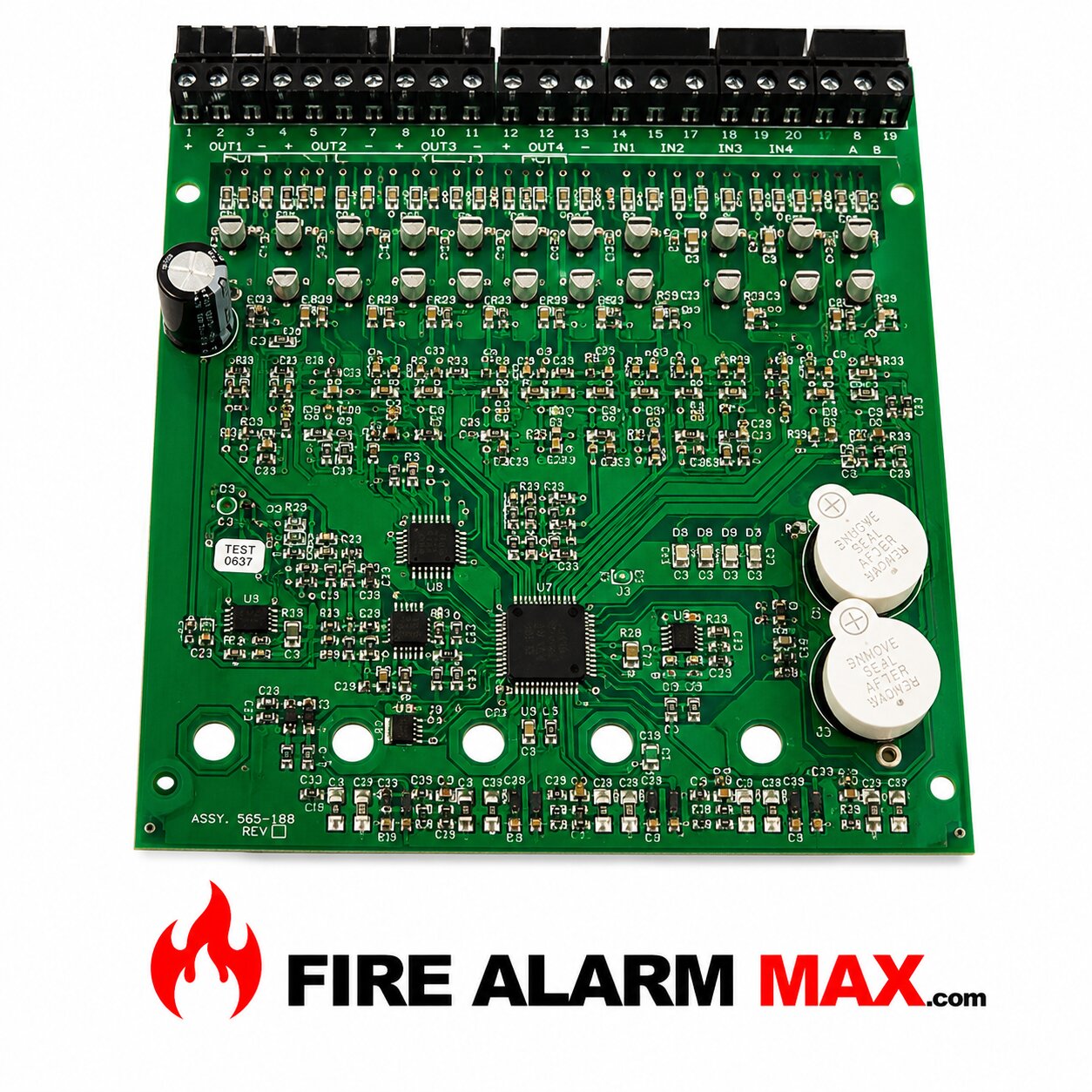

The Gamewell MMI-10F multi-mode ten-input monitor module provides ten Style B (Class B) or five Style D (Class A) supervised initiating device circuits (IDCs) that are suitable for a wide range of monitoring applications. Also, the Velocity Series uses a communication protocol that substantially increases the speed of communication between the sensors and certain Gamewell-FCI analog addressable fire alarm controls.

These devices operate in a grouped fashion. If one of the devices in the group has a status change, the panel’s microprocessor stops the group poll and concentrates on the single device. The net effect is a response speed up to five times greater than earlier designs.

In general, Gamewell MMI-10F connects to the signaling line circuits of the Gamewell-FCI analog addressable series fire alarm control panels. Besides, each of the Gamewell MMI-10F circuits occupies its address on the system’s SLC, allowing each to be fully programmable in its control-by-event sequence of operation.

Features / Specifications

• Each MMI-10F monitor module provides ten Style B (Class B) or five Style D (Class A) individually addressable, individually programmable initiating device circuits
• Ideal for applications requiring the monitoring of normally open contact devices
• Removable wiring terminal blocks allow ease of installation and servicing
• Terminal blocks can accommodate 12 to 18 AWG wire
• Flexible jumper configuration feature allowing one or two monitoring circuit addresses to be disabled
