Description

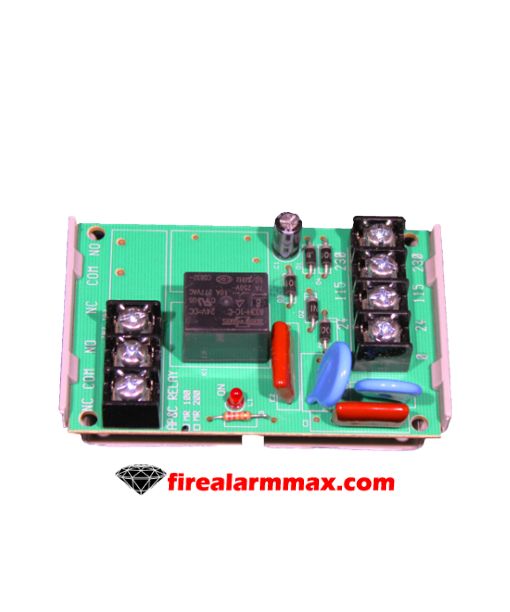

The Gatorgate SSU-MR-101/T Multi-Voltage Control Relays offer SPDT resistive contacts which may be operated by one of four input control voltages. Also, a single relay may be energized from a voltage source of 24VDC, 24VAC, 120VAC or 230VAC by wiring to appropriate input terminals.

In fact, each Gatorgate SSU-MR-101/T relay position contains a red LED which indicates the relay coil is energized. Relays may be “snapped apart” from a standard 4 module assembly together with used independently. Besides, these Devices are Ideal for applications where local contacts are required for system status, remote contacts for control of electrical loads and general purpose switching. They are suitable for use with HVAC, Temperature Control, Fire Alarm, Security, Energy Management as well as Lighting Control Systems.

Features / Specifications

• Relays may be energized from a voltage source of 18 to 35VDC or VAC, 120VAC or 230VAC
• Each relay position contains a red LED, which illuminates when the coil is energized. This provides a time saving device when checking an installed system
• Single, dual or triple relay modules may be “snapped apart” from standard 4-position master
• DC control inputs are polarized
• For continuous duty use at 24VAC, 24VDC or 120VAC
• Available in dust resistant enclosures with LED viewing port(s)
• Polarized: DC input only
• Energized Led Indicator: One per module position
• Contact Ratings: 7A @ 28VDC / 10A (NO:1/6HP, NC:1/8HP) @ 120VAC / 7A @ 230VAC
• Environmental: 32°F to 120°F (0°C to 49°C) @ 85% RH (@ 32°F), Non-condensing, Non-freezing
• Wiring: Solid or stranded; #14 to #22 AWG terminals
