Description

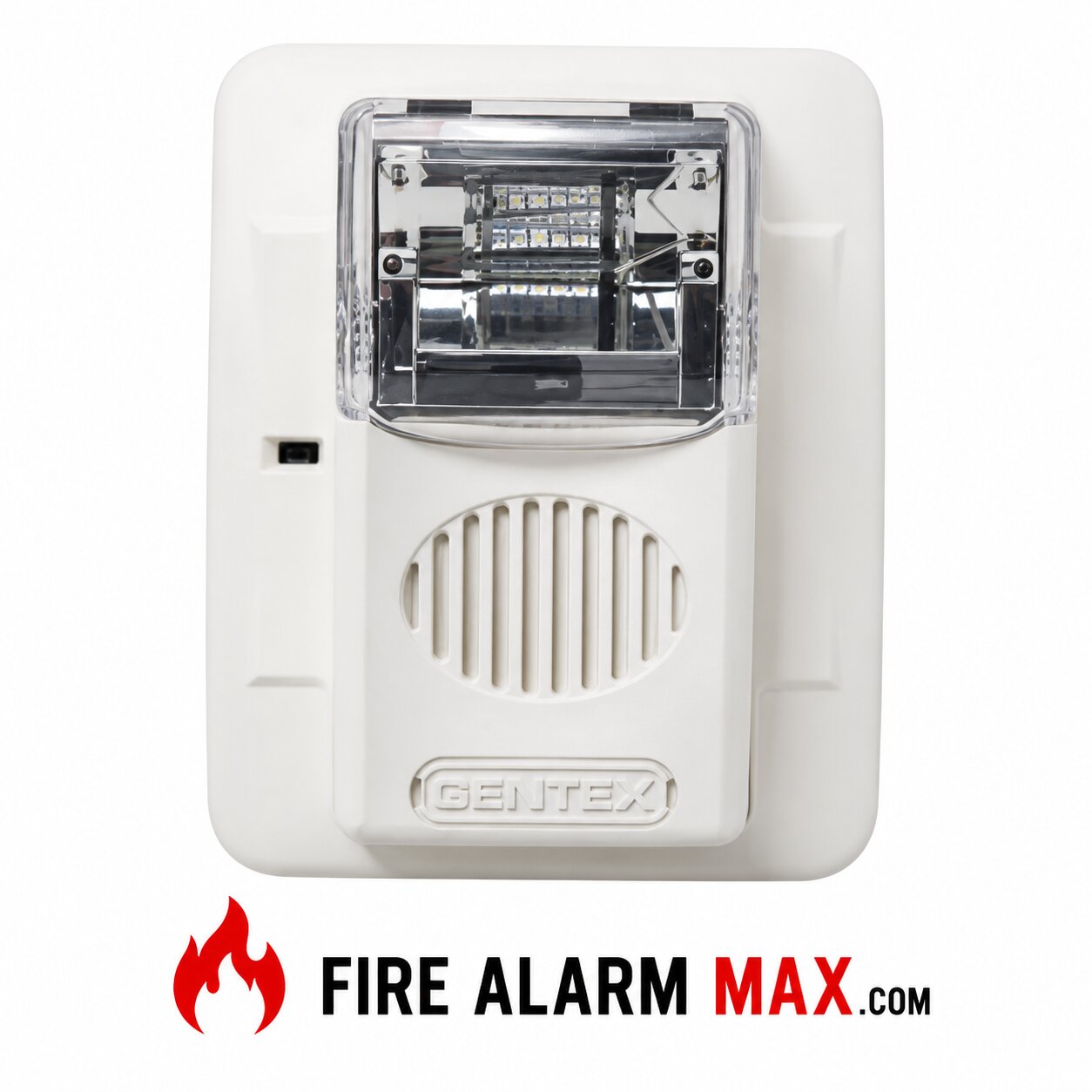

The Gentex GEC24-15/75PWW is a low-profile horn/strobe combination that offers dependable audible and audible/visual alarms and the absolute lowest current available. Also, the GE Series is available in fixed candela options of 15/75 and 177. The Commander2 Series horn offers a continuous or synchable temporal 3 in 2400Hz and mechanical and, chime as well as a whoop tone. All tones are easy for the professional to change in the field by using switches

In general, the Gentex GEC24-15/75PWW is shipped with the standard 4″ mounting plate which incorporates the popular Super-Slide® feature that allows the installer to easily test for supervision. The product also features a locking mechanism that secures the product to the bracket without any screws showing. The Commander2 Series also features the patented Checkmate® Instant Voltage Verification feature which allows the installer to check the voltage drop draw and match it to the blueprint.

Features / Specifications

• Nominal voltage 24 VDC for horn, strobe, and horn/strobe
• Fixed candela models of 15/75 and 177
• Unit Dimensions: 5” (12.7 cm) high x 4.5” (11.43 cm) wide x 2.5” (6.35 cm) deep
• Super-Slide® Bracket, Ease of Supervision Testing
• Prewire entire system, install mounting bracket, then install signals
• Documented lower installation and operating costs
• Input terminals 12 to 18 AWG
• Tamperproof re-entrant style grill and locking screw
