Description

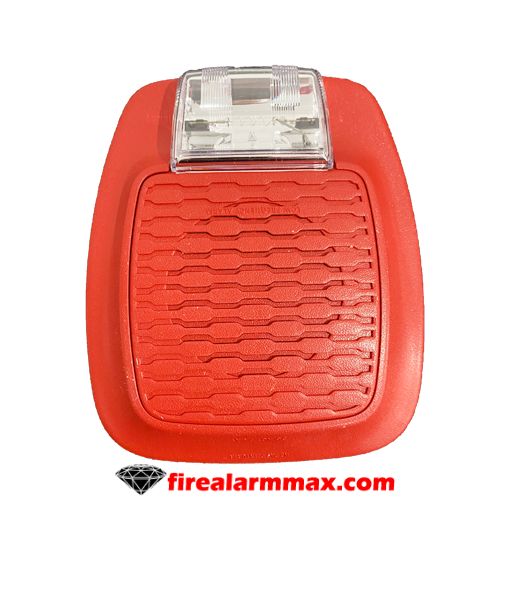

The Gentex GHSLF177R is a high quality, low profile, low frequency audible, and visible appliance that offers a dependable audible and visual alarm. Also, the GHSLF is ideal for any occupancy that requires notification appliances. The GHSLF horn offers a 520 Hz square wave, temporal 3 tone. A jumper selection is available for normal or loud decibel tone. A temporal 4 pattern is available when used with the Gentex GTSM Synchronization Control Module. Besides, the GHSLF is available in a fixed 15, 110 and 177 candela strobe.

In general, the Gentex GHSLF177R is shipped with a standard 4” metal mounting plate which incorporates the popular Super-Slide® feature that allows the installer to easily test for supervision. The product also features a locking mechanism that secures the product to the bracket without any screws showing. The GHSLF also features the patented Checkmate® – Instant Voltage Verification feature which allows the installer to check the voltage drop and match it to the blueprint. The GHSLF is list as ANSI/UL 1971, ANSI/UL 464, CAN/ULC S525, and CAN/ULC S526..

Features / Specifications

• Produces a 520 Hz square wave, temporal 3 tone
• Nominal voltage 24 VDC
• Jumper selection for normal or loud dBA
• Super-Slide® Bracket – Ease of Supervision Testing
• Input terminals accept 12 to 18 AWG
• Tamperproof re-entrant style grill and locking screw
