Description

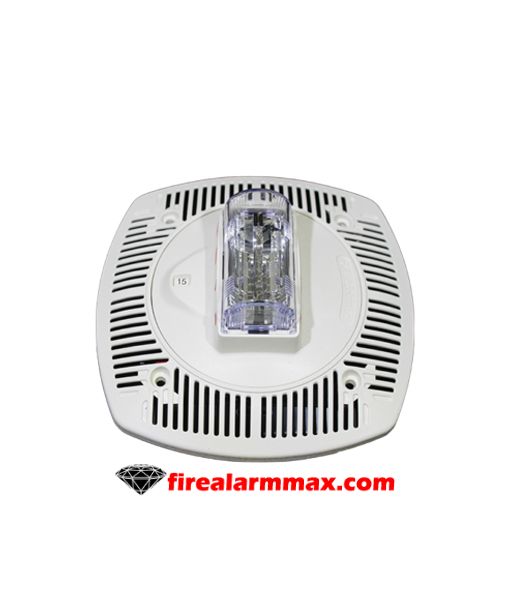

The Gentex SSPK24CLPW is a ceiling mount, selectable candela speaker/strobe, as well as the SSPKCLP is a universal mount speaker designed to meet code requirements for audio, visual, and voice communications. The SSPKCLP Series are quality speaker products offering both dependable evacuation signaling and visual alarms, or a combination of both. The Gentex SSPK24CLPW has high output tamperproof candela selections are 15, 30, 75, 95, and 115.

In fact, the SSPKCLP Series grills are constructed of high-impact textured plastic. Also, it can be mounted in a 4” square x 2-1/8” deep back box, an extension ring is not needed. Besides, the SSPKCLP Series provides a 25 or 70.7 VRMS speaker with field selectable power taps of 1/8W, 1/4W, 1/2W, 1W, 2W, or 4W. Furthermore, the SSPK24CLP strobes can be synchronized by using the Gentex AVSM Control Module, FACP’s or power supplies that include the Gentex Synchronization Protocol. The SSPK24CLPW is a quality speaker product offering both dependable evacuation signaling and visual alarms, or a combination of both.

Features / Specifications

• 24VDC tamperproof selectable candela options of 15, 30, 75, 95 & 115
• Unit Dimension: 6.1” (15.494 cm) square X 1.88” (4.7752 cm) deep
• Speaker voltage 25 or 70.7 VRMs standard, field selectable
• Field selectable power taps: 1/8W, 1/4W, 1/2W, 1W, 2W, 4W
• High-quality dBA output (intelligible)
• Frequency range 400-4000 Hz
• Screw terminals, separate in/out wiring (12-18 gauge)
• Mount to a standard 4” X 2-1/8″ deep back box
• Tamperproof grill
