Description

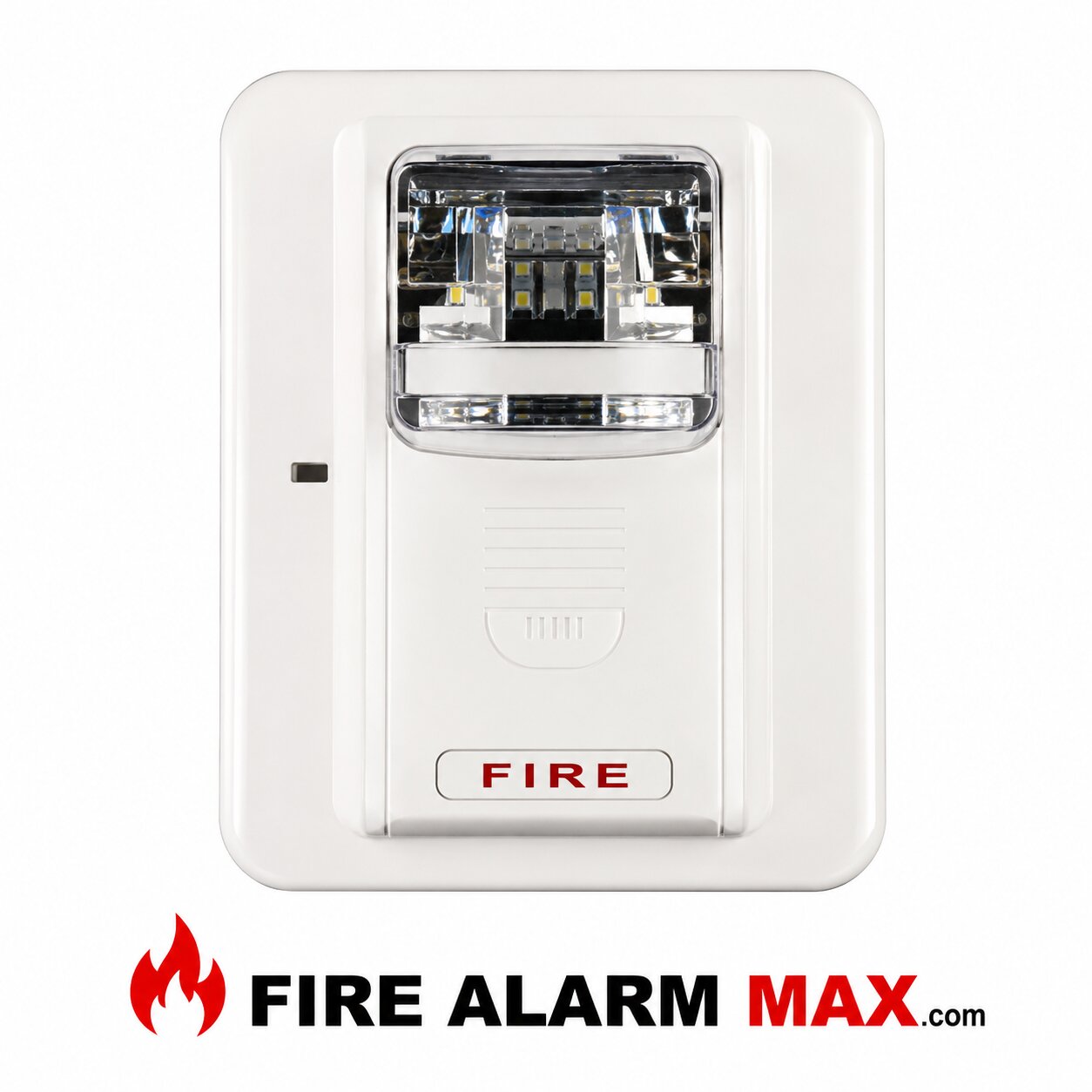

Hochiki HES3-24WW

A low-profile strobe combination that offers dependable audible, and visual alarms and the lowest current available. The HE Series 24VDC offers tamperproof field selectable candela options of 15, 30, 60, 75, and 110 candelas. The 12VDC models offer tamperproof field selectable candela options of 15, 30, 60, and 75 candelas. The HE Series horn offers continuous or synchable temporal three in 2400Hz. And mechanical tone, a chime, and a whoop tone. All tones a re easy for the professional to change in the field by using switches.

Hochiki HES3-24WW

Has a minimal operation current and a minimum flash rate of 1Hz regar dless of input voltage. The HE Series i s shipped with the standard 4″ metal mounting plate, which incorporates, the popular Slide feature. That allows the installer to, easily test for supervision. The product features a locking mechanism that secures the product to the bracket without any screws showing.

Features / Specifications

Nominal voltage 12VDC and 24VDC

24VDC units have field selectable candela options of 15, 30, 60, 75, and 110 candela

Unit Dimensions: 5″ high x 4.5″ wide x 2.5″ deep

Prewire the entire system, th en install signals

Lower installation and operating costs

Input terminals support 12 to 18-gauge wire

Switch selection for high or low dBA
