Description

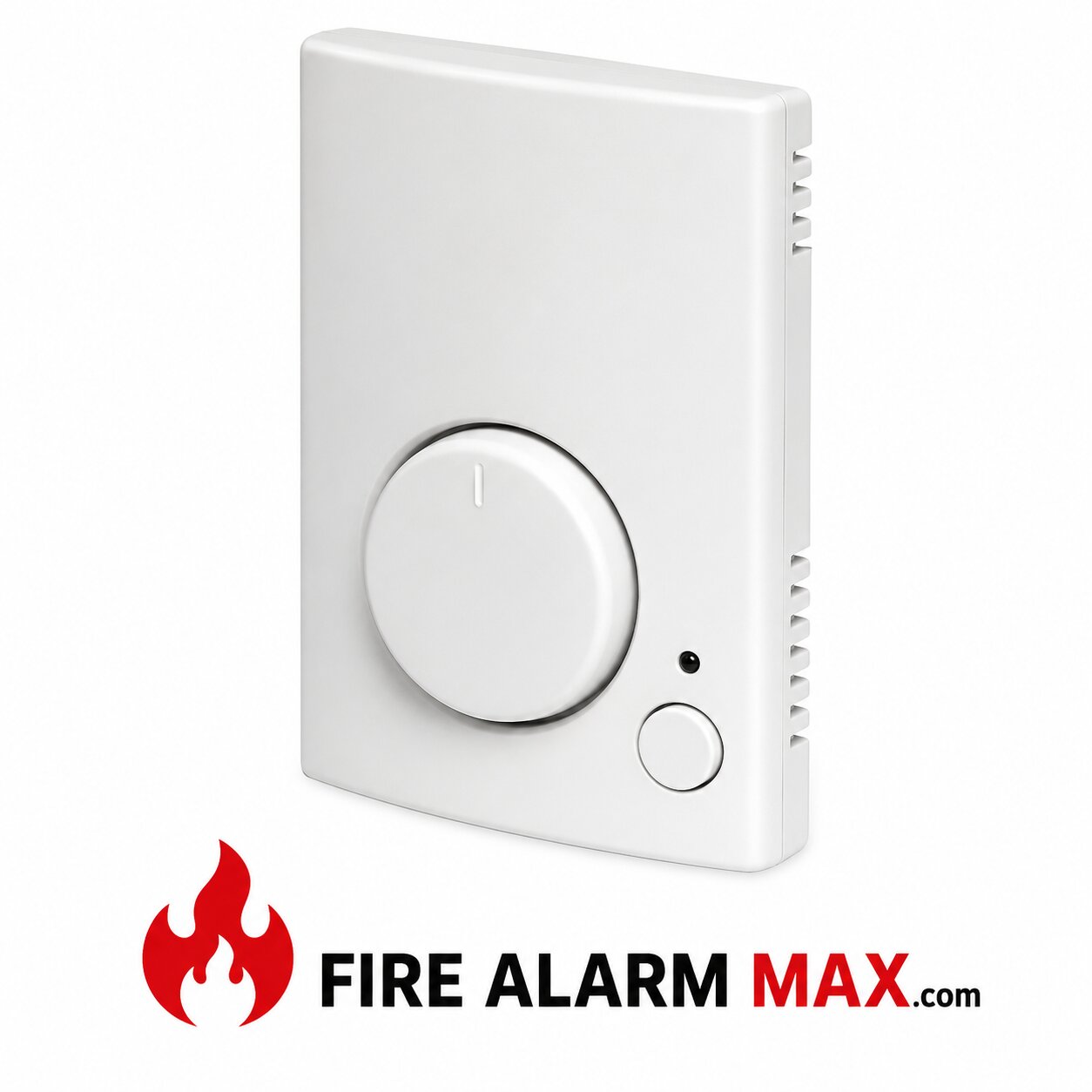

Honeywell TR23-F5 – The TR21, TR22, TR23, and also TR24 are a family of direct wired wall modules for use with Honeywell Excel 600, 500, 100, and 80 controllers; Additionally, Excel 10 W7750, W7751A, W7752, and W7753 controllers; W7761 Controller; as well as Spyder Unitary Controllers. Furthermore, all models have a space temperature sensor. (Please note: a separate sensor does not come with the unit. Also, this product is the module only).

Features:

• Models available with user selectable setpoint adjustment dials in Fahrenheit, Celsius as well as Relative Scales
• Available with occupied/unoccupied override (bypass) with LED
• Models available with 3-position (auto/0/1) or also 5-position (auto/0/1/2/3 speed) fan switch
• LONWORKS network jack on all models except the TR21 and TR21-A models
• Models available with on board humidity sensor, humidity output: 0-10Vdc, 0-5 Vdc, 4-20ma selectableSpecifications:
• Wall module with temperature, selectable setpoint adjustment, LON network jack, Override button with LED & 5 position fan
• Application: Networked Sensor
• Sensor Type:20 K ohm NTC non-linear
• Mounting: Mounted on a standard 2 x 4 inch junction box
• Switch Positions (Fan): Auto-Off-1-2-3
• Includes: Selectable Setpoint dials in Fahrenheit, Celsius, and Relative (- to +), LON Jack, Override Button with LED and 5 position fan
• Used with: Spyder, Excel 600, 500, 100, 80 and Excel 10, 15 Series Controllers
