Description

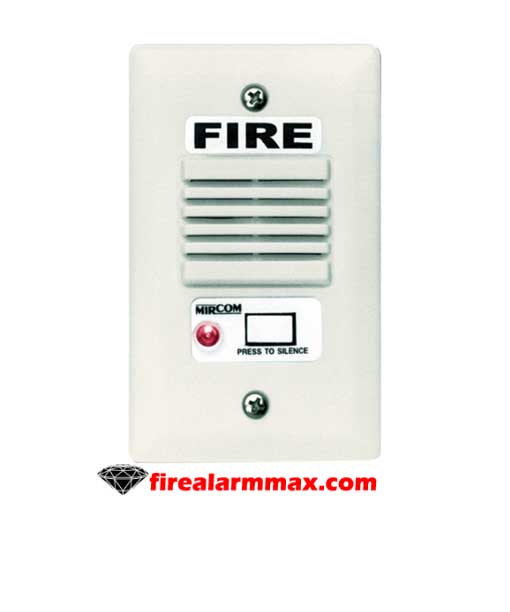

Mircom MH-525WA mini horns are compact electronic alarm appliances; that ideal for alarm signaling in individual rooms, apartments, hotels and offices; where attractive appearance and dependable performance are prime concerns. When activated, the MH-25 Series mini-horns produce a high sound output of over 90 dBA at 10 feet; with a minimum current draw of 15.5 milliamps at 24 VDC (unfiltered) on the non silenceable models. Designed as alert or alarm signal
appliances for use with any conventional Fire Alarm Control panel, the MH-Series mini horns are available in a standard version (MH-25) and a Silenceable version (MH-S25).

The Mircom MH-525WA versions are silenceable mini horns; equipped with a “Silence” push button and a red LED to indicate “active signal circuit” when lit. The push button allows the user to silence the mini-horn for a maximum of 10 minutes upon which the mini-horn sound again until the signal circuit inactive or the mini horn silenced again or the fire alarm panel reset. Furthermore, upon the fire alarm being reset, it takes approximately 25 seconds for the MH-S25 Mini-Horns to reset.

All MH-25 Series mini horns designed for easy installation with convenient mounting to standard single gang boxes; as well as in-out wire leads for fast connection. The front face plates ruggedly constructed of high impact thermoplastic and are available in fire alarm red or off-white to blend with any room decor.
