Description

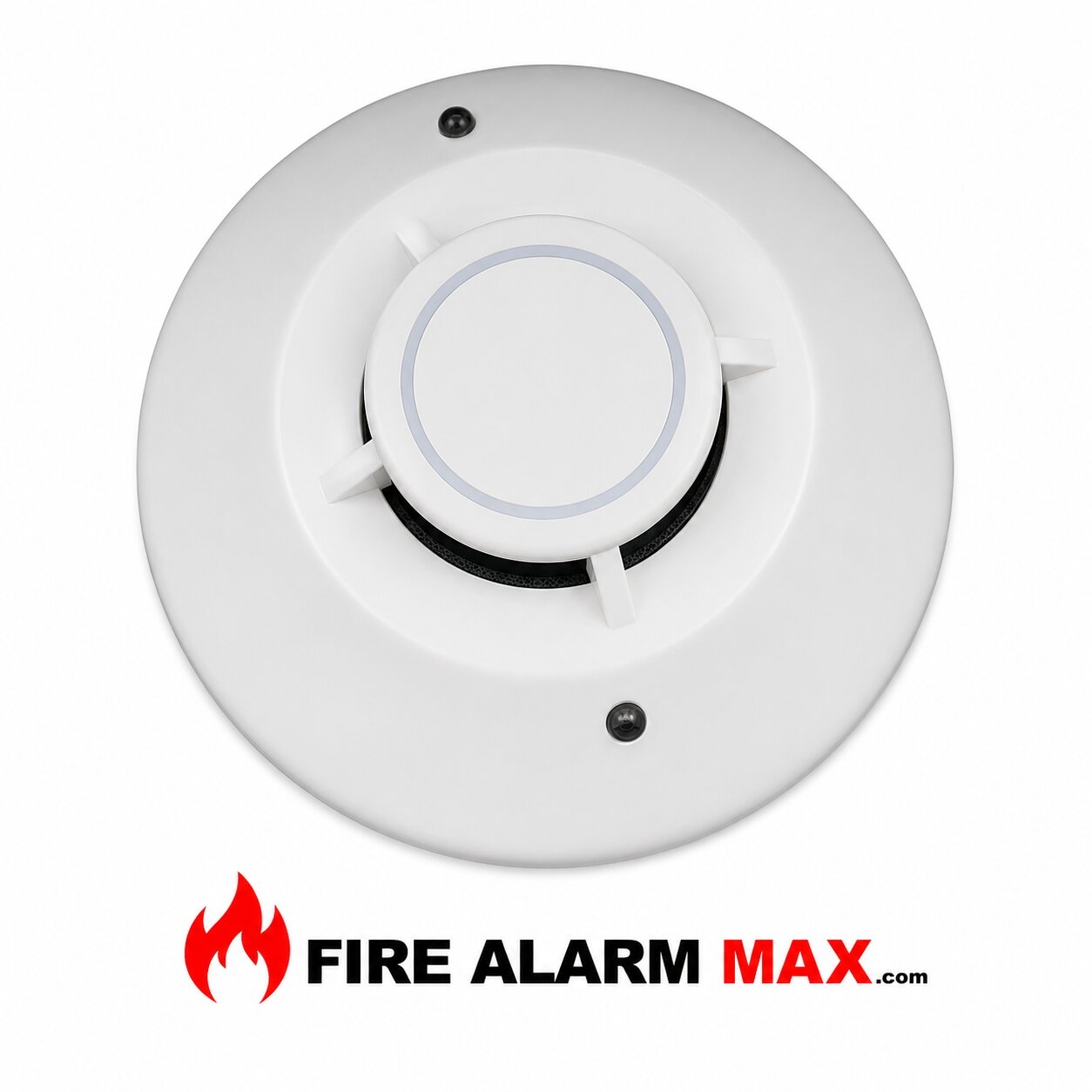

In general, the Mircom MIX-5251RAPA is an intelligent sensor that utilizes a state-of-the-art thermistor sensing circuit for fast response. These sensors are designed to provide open area protection with 50-foot spacing capability as approved by ULC. Also, the Mircom MIX-5251RAPA is a rate-of-rise temperature sensor with a 135°F fixed temperature alarm.

Two LEDs on each sensor light provide 360° visibility of the sensor indication. Besides, the LEDs can be latched ON by a code command from the panel for an alarm indication. The LEDs can also be unlatched from the normal condition by a code command. Furthermore, the remote LED annunciator capability is available as an optional accessory.

Features / Specifications

• Installation Temperatures: –4°F to 100°F (–20°C to 38°C)
• Operating Humidity Range: 10% to 93% Relative Humidity Non-condensing
• Voltage Range: 15 to 32 Volts DC Peak
• Standby Current: 300 µA @ 24 VDC (one communication every 5 seconds with LED blink enabled)
• LED Current: 6.5 mA @ 24 VDC
• Fixed Temperature Rating: 135°F (57°C)
• Rate of Rise Detection: Responds to greater than 15°F/min

Two LEDs on each sensor light provide 360° visibility of the sensor indication. Besides, the LEDs can be latched ON by a code command from the panel for an alarm indication. The LEDs can also be unlatched from the normal condition by a code command. Furthermore, the remote LED annunciator capability is available as an optional accessory.

Download the Specification sheet in *.pdf format
