Description

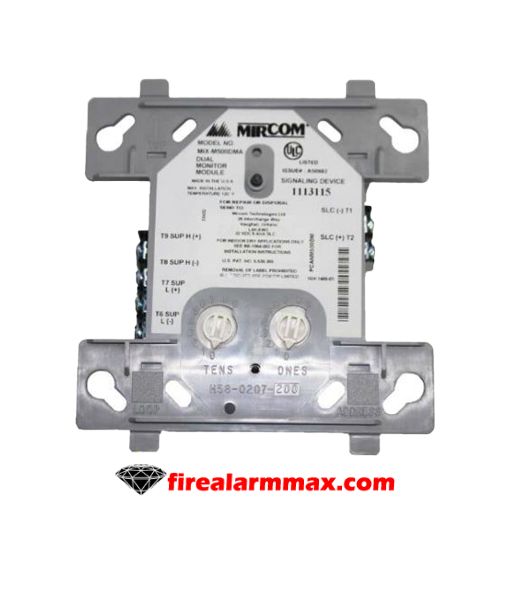

In the first place, the Intelligent Addressable Dual Monitor Module, Mircom MIX-M500DMA, provides two independent 2-wire initiating device circuits at two separate, consecutive addresses. It is capable of monitoring two separate Class B (Style B) circuits simultaneously, making it ideal for water flow and tamper switch monitoring. The Mircom MIX-M500DMA has a single activated red LED that is common to either circuit.

Feature / Specifications

  • Operating Voltage: 15-32 VDC
  • Temperature Range: 32° to 120°F (0° to 49°C)
  • Relative Humidity: 10% to 93%: noncondensing
  • Dimensions: 4.65”H x 4.25”W x 1.1”D
  • Standby Current: 750 µA max. @ 24 VDC (one communication every 5 sec. with 47k EOL)
  • Alarm Current: 970 µA max. (one communication every 5 sec.)

Additional information

Weight 1 lbs
Dimensions 6 × 6 in
