Description

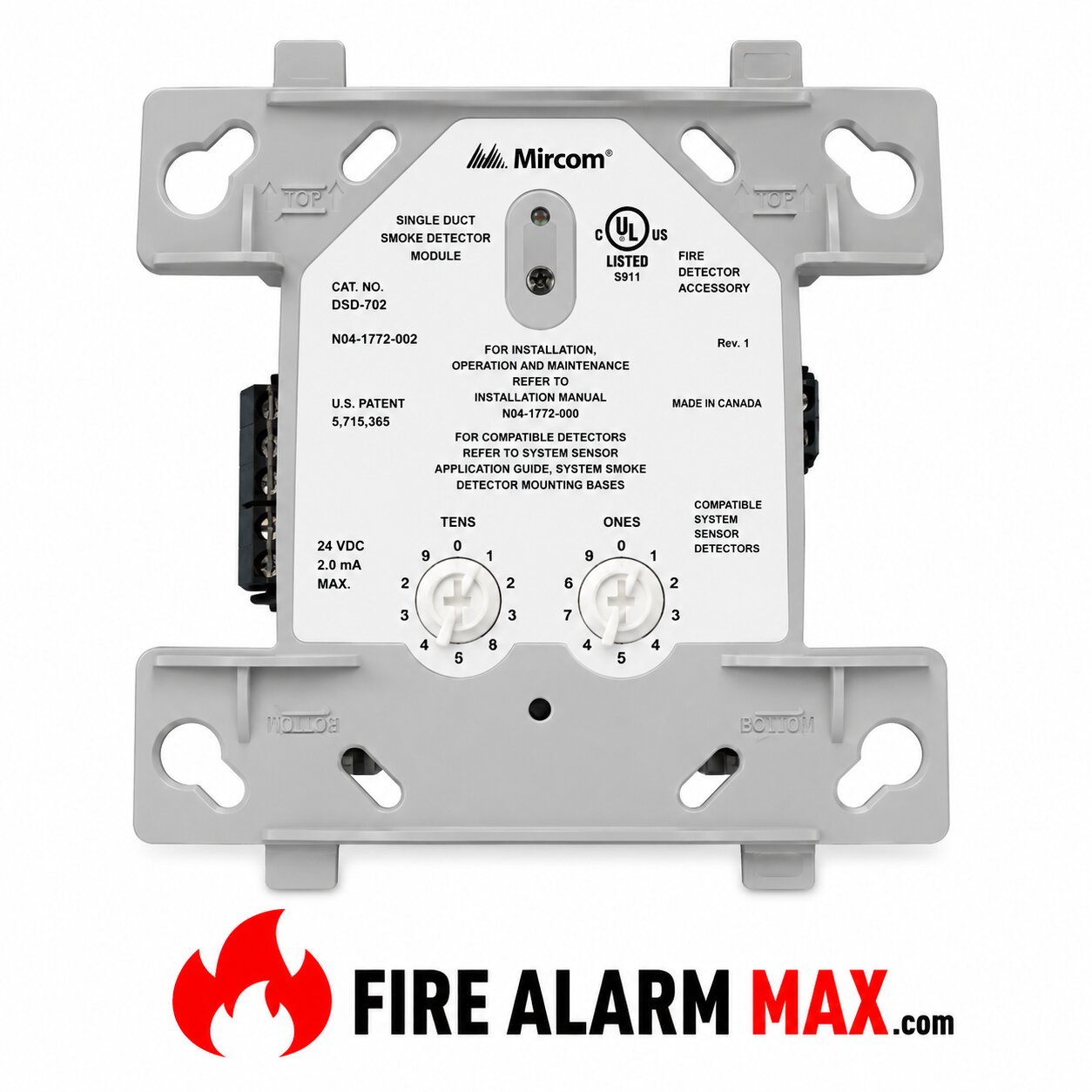

The Mircom MIX-M500MAP Monitor Module – intended for use in intelligent, two-wire systems. In this case, the individual address of each module – selected using the built-in rotary decade switches. It provides either a 2-wire or 4-wire fault-tolerant initiating circuit for normally open contact fire alarms, supervisory, or security devices. Furthermore, the module has a panel-controlled LED indicator. In addition, the Mircom MIX-M500MAP mounts directly to 4-inch square electrical boxes. In general, the box must have a minimum depth of 21/8 inches. Moreover, surface-mounted electrical boxes (SMB500) are available from System Sensor. To comply with compatibility requirements and to ensure proper operation. These modules shall – connected to listed compatible system control panels only.

• Normal Operating Voltage: 15 to 32 VDC
• Maximum Alarm Current (LED on): 5.0mA (LED on)
• Average Operating Current: 400 μA, 1 communication every 5 seconds, 47k EOL
• EOL Resistance: 47K Ohms
• Wiring resistance: 40 Ohms
• Voltage: 11 Volts
• Maximum IDC Current: 400µA
• Temperature Range: 32˚F to 120˚F (0˚C to 49˚C)
• Humidity: 10% to 93% Non-condensing
• Dimensions: 41/2˝ H x 4˝ W x 11/4˝ D (Mounts to a 4˝ square by 21/8˝ deep box.)

The individual address of each module – selected using the built-in rotary decade switches. It provides either a 2-wire or 4-wire fault-tolerant initiating circuit for normally open contact fire alarms, supervisory, or security devices. Furthermore, the module has a panel-controlled LED indicator. In addition, the Mircom MIX-M500MAP mounts directly to 4-inch square electrical boxes. In general, the box must have a minimum depth of 21/8 inches. Moreover, surface-mounted electrical boxes (SMB500) are available from System Sensor. To comply with compatibility requirements and to ensure proper operation. These modules shall – connected to listed compatible system control panels only.
