Description

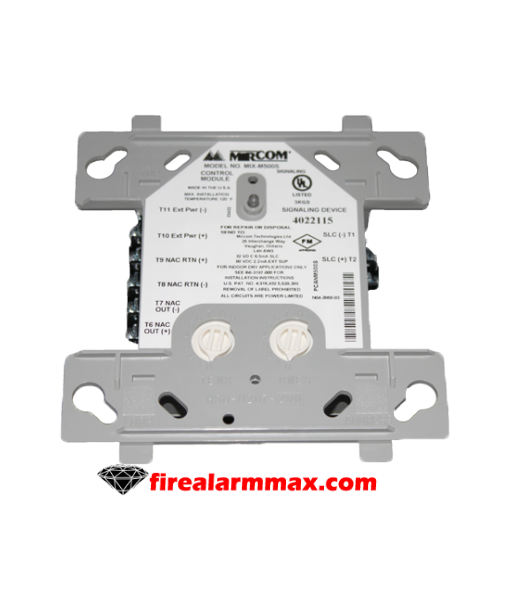

MIRCOM MIX-M500S

Mircom’s intelligent module products a re designed to meet a wide range of applications. Monitor and control modules can b e used to supervise and activate sounders. Strobes, door closers, pull stations, water flow switches, conventional smoke detectors, and more. Each module i s rigorously designed and tested for electromagnetic compatibility. And environmental reliability, in many cases exceeding industry standards. Modules a re addressed with easy-to-use rotary code switches. Full-size modules mount in standard 4″ x 4″ x 2 ⅛” junction box. Wiring terminals a re easily accessible for troubleshooting purposes.

MIRCOM MIX-M500S

The MIX-M500S Supervised Control Module provides supervised monitoring of wiring to load devices. That require an external power supply to operate. They can b e, horns, strobes, or bells. It is capable of Styles Y and Z supervision. Upon command from the control panel, the MIX-M500S will disconnect the supervision. And connect the external power supply across the load device. The disconnection of the supervision provides a positive indication to the panel. That the control relay turned on. The external power supply i s always relay isolated from the communication loop. That a trouble condition on the power supply will never interfere with the rest of the system. Full analog measurement of the supervised wiring i s transmitted back to the panel. And can b e used to detect impedance changes or other special test functions.
