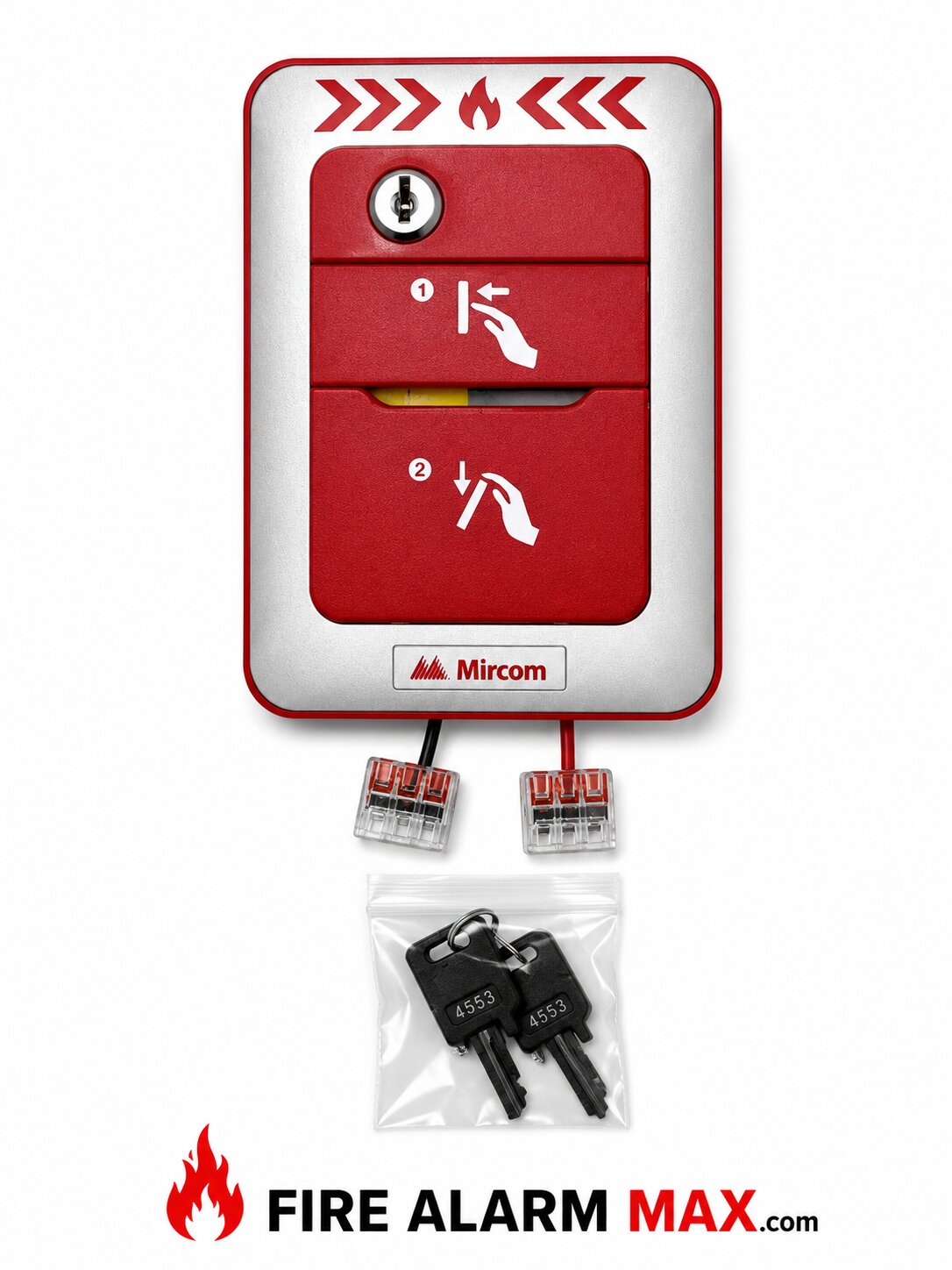

Mircom MPS-810MPU Dual Action Addressable Manual Station

General Description

The MPS-810MPU is a high-quality, dual-action manual pull station designed for fire alarm systems. It operates with a single-stage pull mechanism and utilizes MP (Multi-Protocol) addressability, allowing smooth integration into advanced fire alarm control panels. The MPS-810MPU complies with the latest safety standards and provides reliable manual activation of fire alarm systems during emergencies.

Key Features

• Dual Action: Requires two distinct actions to trigger the alarm, reducing accidental activation.
• Single Stage: Triggers a single-stage alarm signal.
• Addressable Technology: Employs MP (Multi-Protocol) communication for fast and secure transmission of alarm signals to the control panel.
• Durable Construction: Made with high-quality materials, suitable for use in commercial, industrial, and institutional environments.
• Easy Reset: Allows for quick reset with a key after activation, restoring normal operation promptly.
• Visible Alarm Indication: Features a clear visual signal indicating that the alarm has been activated.
• Mounting Flexibility: Can be mounted on a standard electrical box, making installation and retrofitting simple.
• UL/ULC Listed: Meets North American fire safety standards.
• Multi-Language Labeling: Offers customizable labeling for international applications.

Technical Specifications

• Model Number: MPS-810MPU
• Type: Single-stage, dual-action, addressable
• Protocol: MP (Multi-Protocol)
• Alarm Activation: Pull handle (dual-action)
• Reset Mechanism: Key-operated reset
• Construction Material: High-impact ABS plastic
• Color: Red with white text
• Dimensions: 5.5″ x 4.25″ x 1.25″ (14 cm x 10.8 cm x 3.2 cm)
• Operating Voltage: 24 VDC (nominal)
• Current Consumption:
  • Standby: 350 μA
  • Alarm: 10 mA
• Operating Temperature: -40°F to 150°F (-40°C to 65°C)
• Humidity Range: 0-93% non-condensing
• Mounting: Surface mount or semi-flush mount on a standard electrical box
• Environmental Rating: Indoor use
• Weight: 0.5 lbs (0.23 kg)
• Certifications: UL Listed, ULC Listed, CE Mark, NFPA compliant
