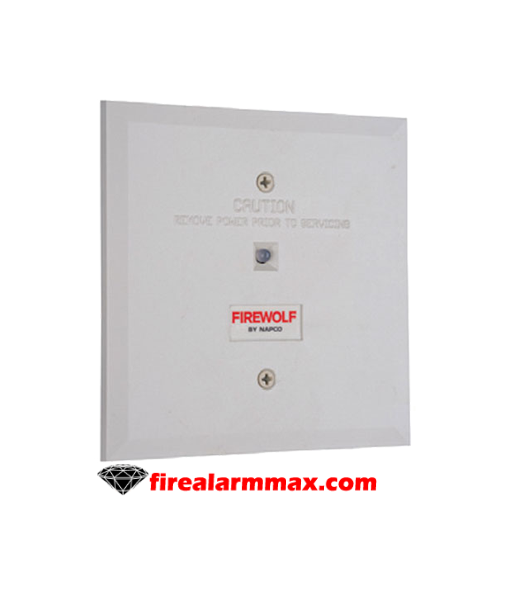

Napco FWC-FSLC-EZM2

FEATURES:
UL 864 9th Edition Listed
Single input contact monitor
Fast, reliable contact monitoring
127 devices can b e used per SLC loop
Can b e programmed to monitor Normally Open (NO) or Normally Closed (NC) contacts
Operates on Class A or Class B SLC loop
Addressable Contact Monitoring

DESCRIPTION:
The Napco FWC-FSLC-EZM2 Dual Input Monitor Module i s designed to b e used with pull stations. Water flow switches and other applications require the monitoring of dry contact devices. The interrupt-driven communications protocol combines maximum communication reliability and fast response to emergency conditions. The FWC-FSLC-EZM1 and FWCFSLC-EZM2 contact monitoring modules do not require a separate 24VDC power source.
Each addressable contact monitoring module i s programmed with its own unique Signaling Line Circuit (SLC) loop address. The FSLC-EZM2 utilizes only a single address for two (2) distinctive initiating points.
The device address i s electrically programmable and stored in the onboard EEPROM. Up to 127 devices can b e placed on the Napco SLC loop. The module supervises the wiring to the contact with an End Of Line (EOL) resistor. It can b e programmed to monitor Normally Open (NO) or Normally Closed (NC) contacts. If a fault condition occurs in the wiring. The module sends a trouble status signal to the fire alarm control panel. W hen a change of status (contact changes state) i s sensed by the FWC-FSLC-EZM2. Sends an interrupt to the control panel indicating that an alarm has occurred.

SPECIFICATION:

The Napco FWC-FSLC-EZM2 addressable SLC two-zone conventional input module provides two independent contact monitoring circuits. Designed to b e used with pull stations, water flow switches. And other applications requiring the monitoring of dry contact alarm-initiating devices.
