Description

Notifier FHSC-S

Notifier’s FirstCommand NFC-FFT i s a firefighter telephone system. That provides secure and reliable communications for firefighters. This standalone system i s capable of providing annunciation and control for local and remote telephone handsets. It includes a built-in display and keypad that indicate phone activation. And corresponding trouble conditions. For added flexibility, 24 remote telephone connections a re offered. That can b e monitored individually or as a group of multi-phone jacks. The auto-program feature automatically recognizes all existing firefighter phone jacks on the system. And immediately configures the system for full operation and supervision.
The NFC-FFT allows for up to ten users to plug into a remote telephone jack (N-FPJ). An onboard SLC circuit (capable of b eing wired in Class B (Style 4). Or Class A (Style 6)) allows for continuous monitoring of the telephone jacks connected to the system. It i s housed in a lockable cabinet that includes multiple knockout locations for field wiring.

Features
Provides supervision control and annunciation of up to 24 remote telephone jacks.
Built-in Auto-program feature.
Simple user interface.
Full System status LED display.
Full system status LED display.
Supports Multi-Phone Jack Audio Circuit supervision.
Certified for seismic applications
Onboard Form-C system trouble relay.

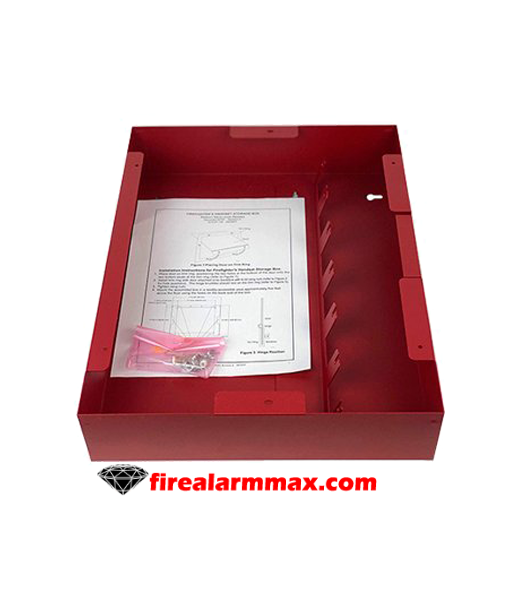

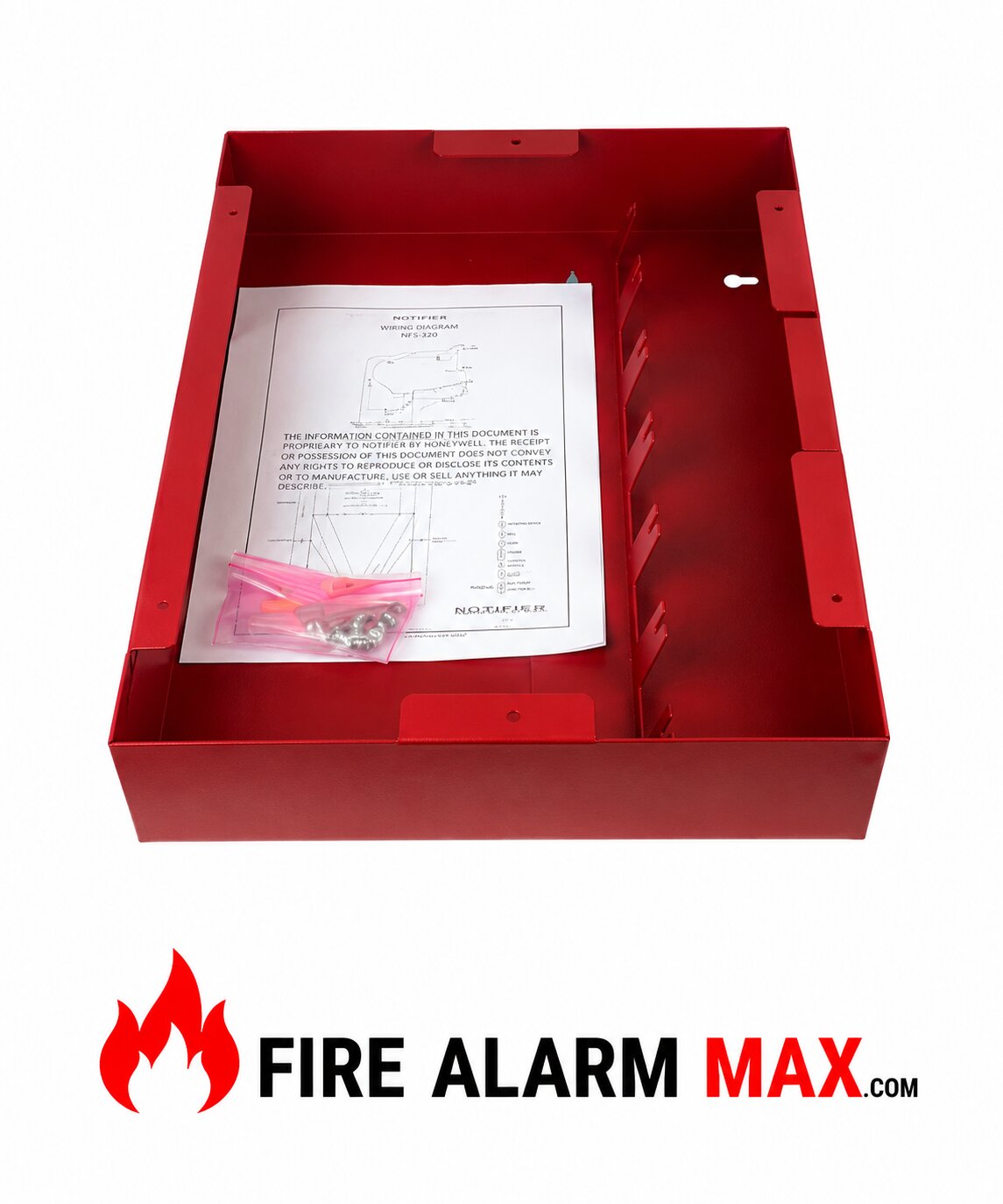

FHSC-S: Optional Fire Fighter Handset Cabinet (surface mount) i s used to store five Fire Fighter Handsets (FHS-F).
NMM-100P: Addressable monitor module that can b e used. To monitor the connection of the Fire Fighter Telephone remote handset (FHS-F). Up to 24 of these modules a re supported by the NFC-FFT.
N100-ISO: Fault Isolator module used to protect the NFCFFT against wire-to-wire short circuits on the SLC loop.

Notifier FHSC-S
